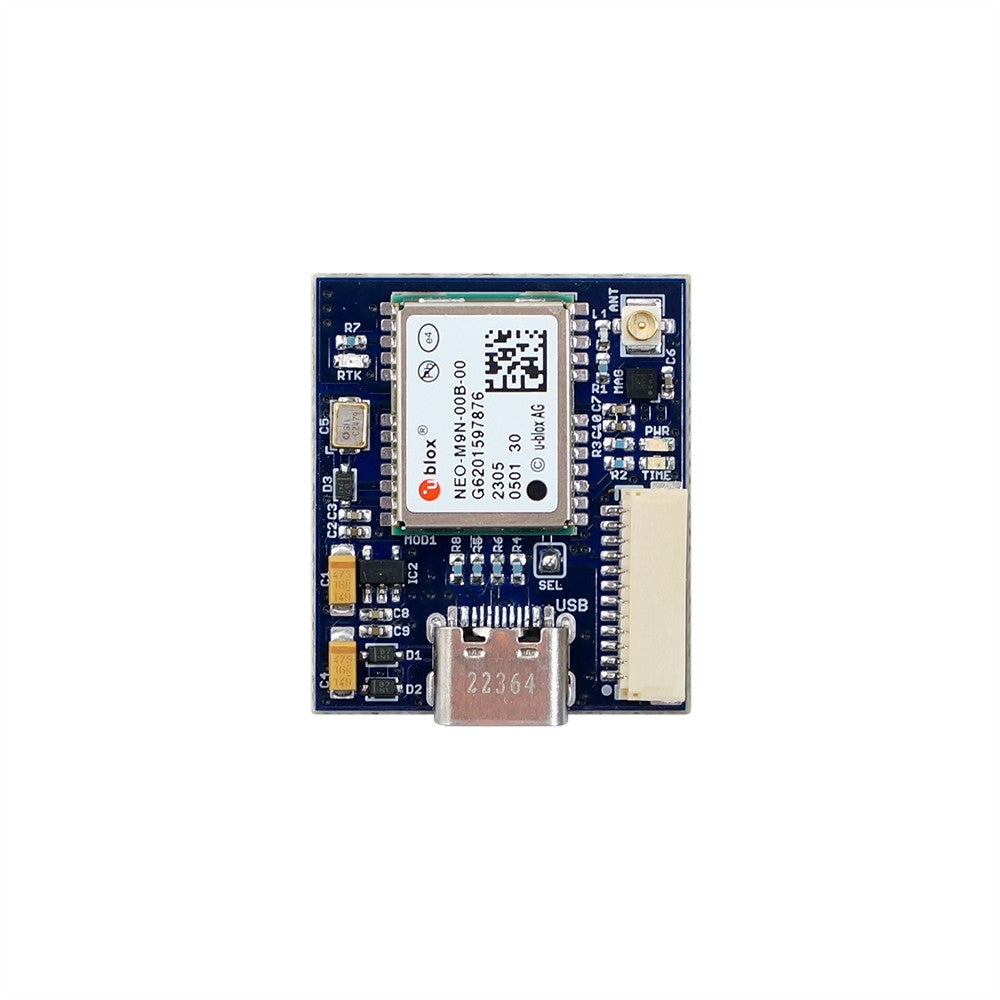

NEO-M9N USB C four GNSS receiver board with LIS3MDL magnetometer
NEO-M9N USB C four GNSS receiver board with LIS3MDL magnetometer
Tax excluded
NEO-M9N USB type C four GNSS Reference Board with UF.L antenna connectors for your UAV systems, Robots, RC, FPV or other projects. Ultra small and light.
The NEO-M9N Evaluation board makes evaluating the high performance of the u-blox 9 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M9N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations.
Furthermore, the NEO-M9N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M9N with SMA antenna connectors.
Available in stock (98)
Couldn't load pickup availability
Product Features
Product Features
- 92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F BeiDou B1I, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator
- USB type C, I2C (SDA, SCL) and UART (Tx, Rx), EXTIN pin
- UF.L antenna connectors
- u-centre ublox Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED, Power LED
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Supercapacitor for HOT module start
- Dimensions 28x23 mm
- Weight: 2,9 gr.
- Fully assembled and ready to use
- Can be easy mounted in your case by double sided tape
- Build in LIS3MDL magnetometr
- 12 pin JST SH connector for easy connect
NEO-M9N Module Specifications
NEO-M9N Module Specifications
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| NEO-M9N USB type C four GNSS Reference Board with UF.L antenna connectors for your UAV systems, Robots, RC, FPV or other projects. Ultra small and light. The NEO-M9N Evaluation board makes evaluating the high performance of the u-blox 9 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M9N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M9N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M9N with SMA antenna connectors.
| Regular price
$81.00
Sale price
$81.00
Regular price
| ELTEHS |
Choose your option
NEO-M9N USB C four GNSS receiver board with LIS3MDL magnetometer
NEO-M9N USB C four GNSS receiver board with LIS3MDL magnetometer
Tax excluded
Available in stock (98)
NEO-M9N USB type C four GNSS Reference Board with UF.L antenna connectors for your UAV systems, Robots, RC, FPV or other projects. Ultra small and light.
The NEO-M9N Evaluation board makes evaluating the high performance of the u-blox 9 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M9N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations.
Furthermore, the NEO-M9N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M9N with SMA antenna connectors.
- 92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F BeiDou B1I, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator
- USB type C, I2C (SDA, SCL) and UART (Tx, Rx), EXTIN pin
- UF.L antenna connectors
- u-centre ublox Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED, Power LED
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Supercapacitor for HOT module start
- Dimensions 28x23 mm
- Weight: 2,9 gr.
- Fully assembled and ready to use
- Can be easy mounted in your case by double sided tape
- Build in LIS3MDL magnetometr
- 12 pin JST SH connector for easy connect
