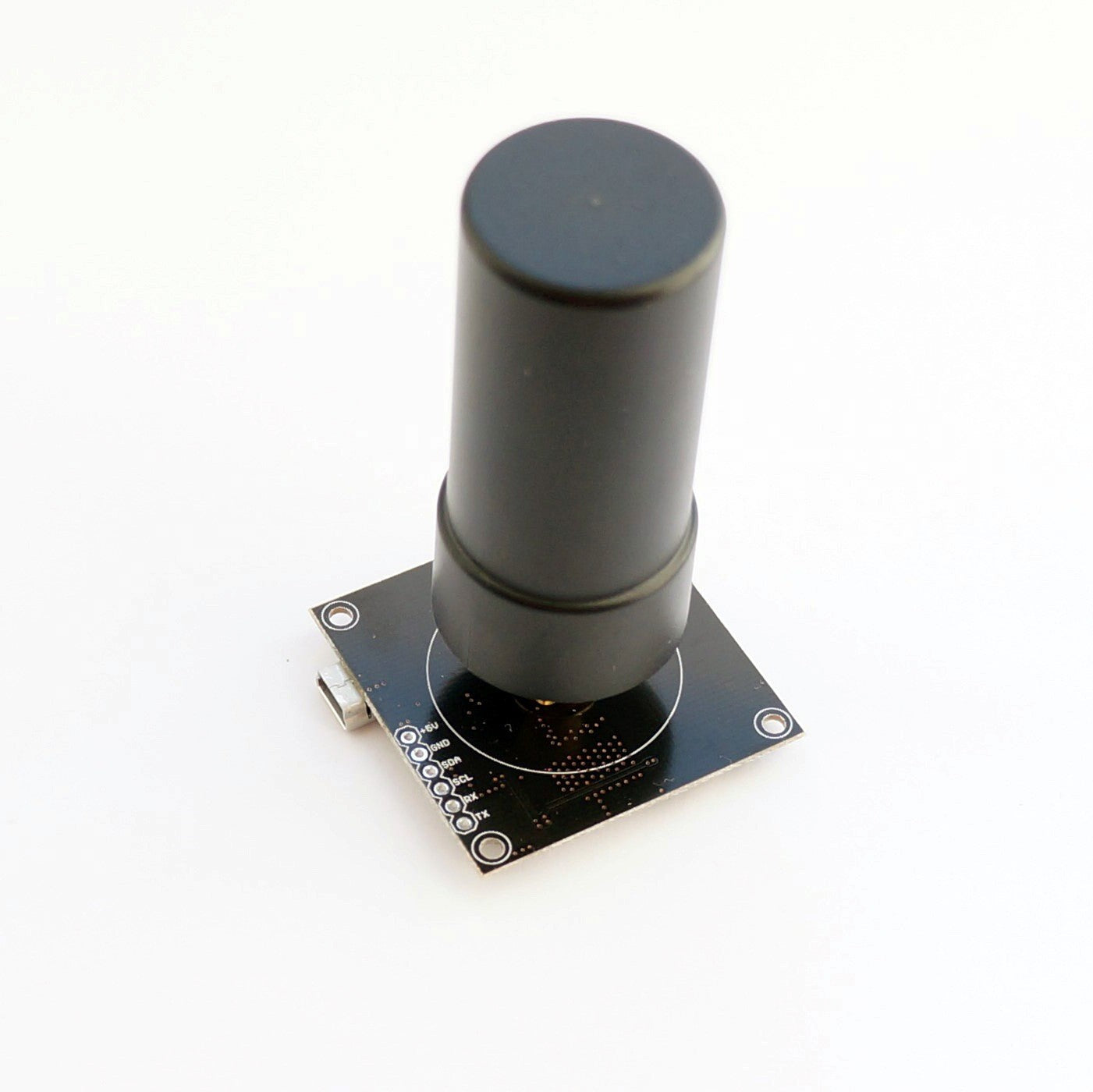

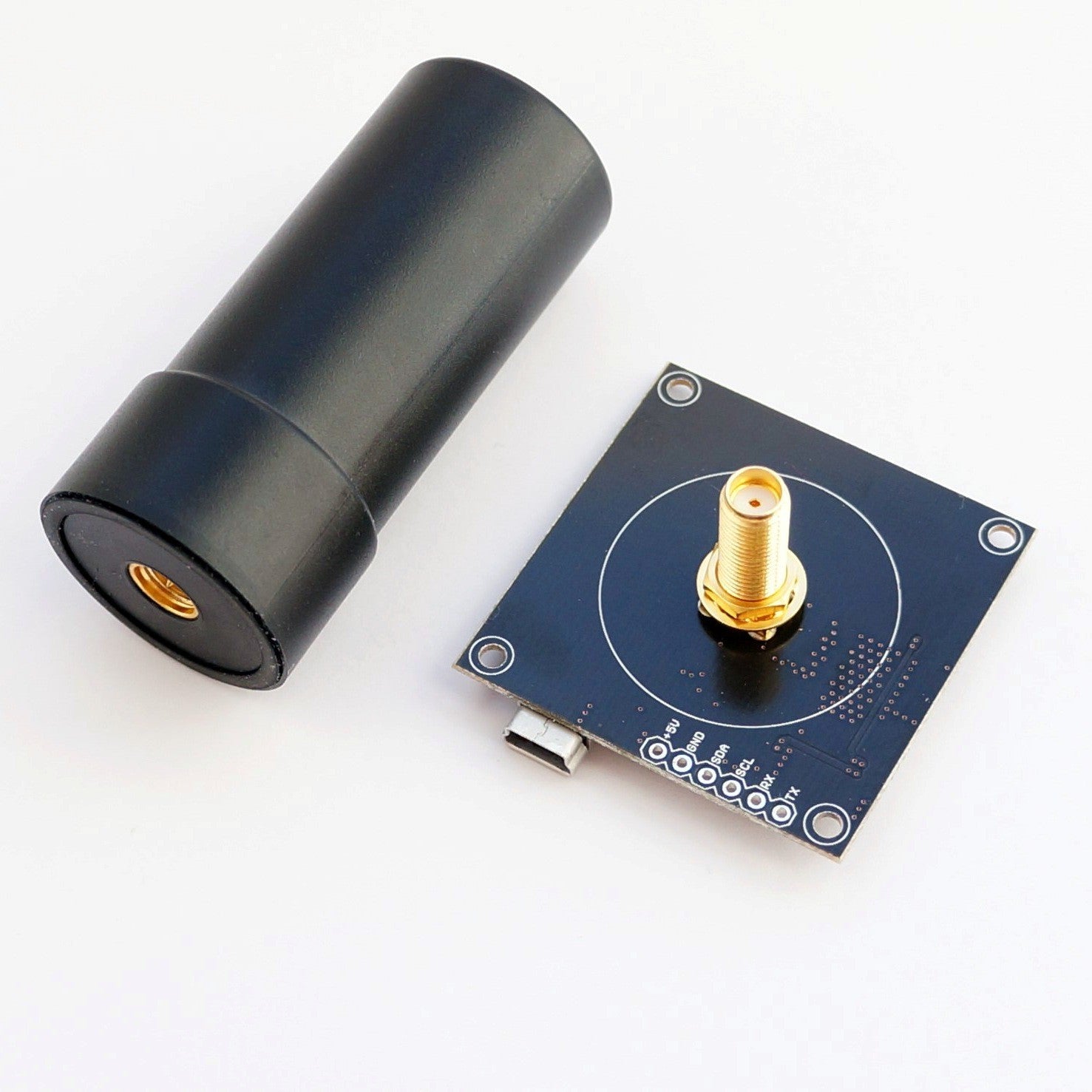

NEO-M9N four GNSS receiver board set with Helix Antenna
NEO-M9N four GNSS receiver board set with Helix Antenna
Tax excluded
NEO-M9N four GNSS set with Helix Antenna for your UAV systems, Robots, RC, FPV or other projects. Ultra small and light.

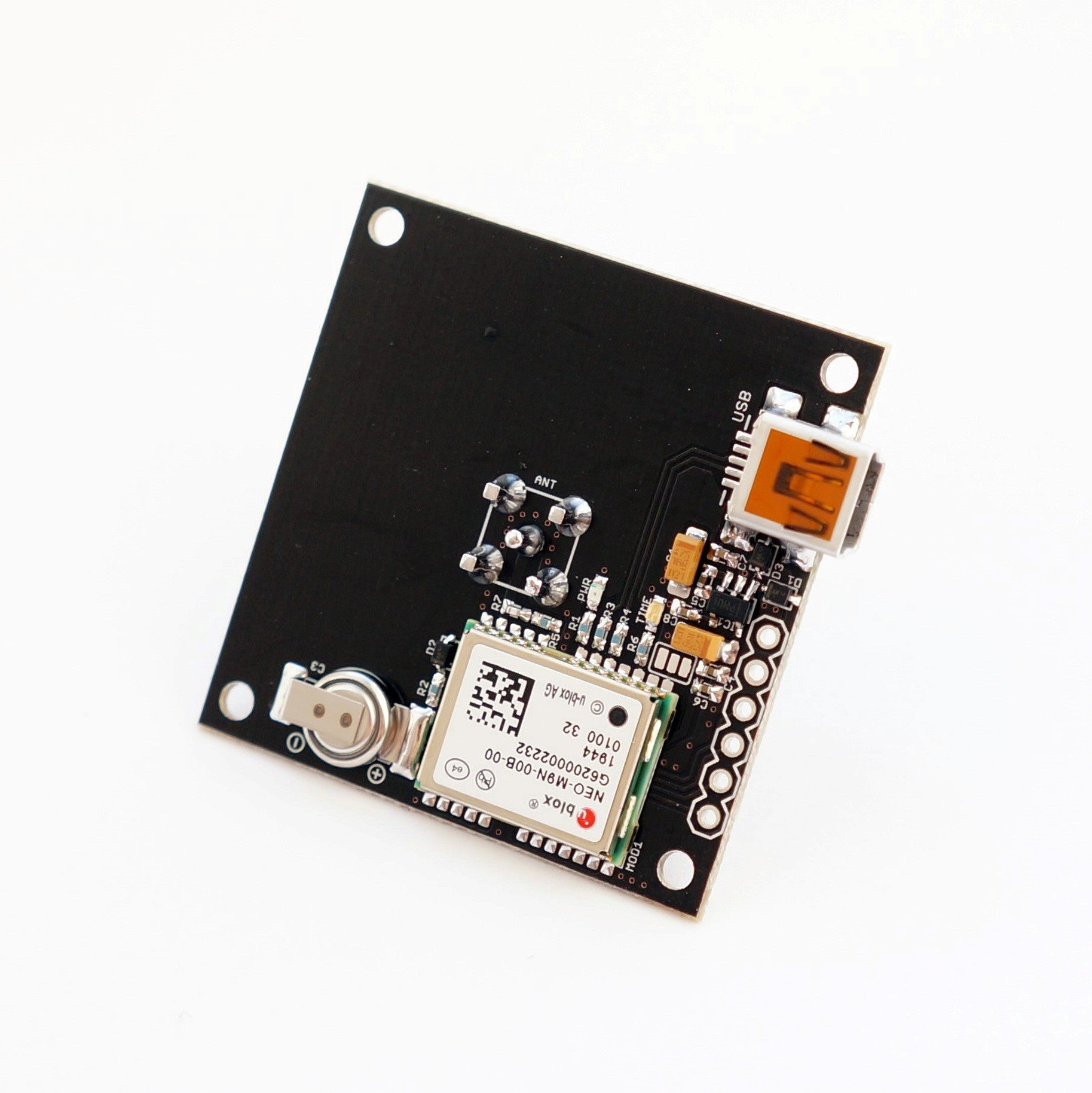

The NEO-M9N set makes evaluating the high performance of the u-blox 9 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M9N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M9N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M9N with Helix antenna.
Available in stock (80)
Couldn't load pickup availability
Product Features
Product Features
- 92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F BeiDou B1I, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGANv
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator
- USB, I2C (SDA, SCL) and UART (Tx, Rx)

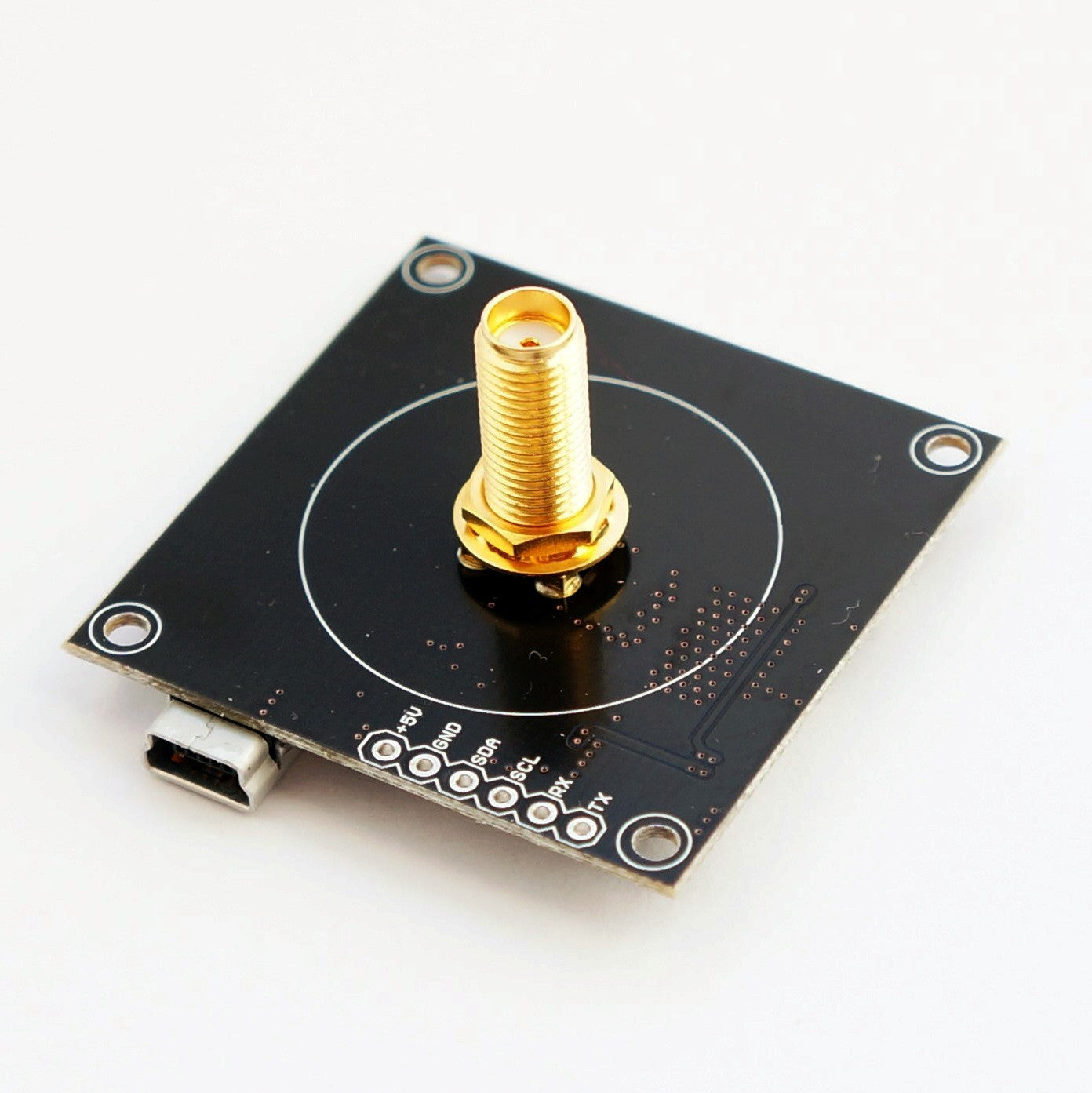

- SMA antenna connectors.
- u-center ublox Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED, Power LED
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Supercapacitor for HOT module start
- Dimensions: 30x30 mm
- Weight: 25 gr. with mounted antenna
- Fully assembled and ready to use
- Helix Antenna included
Helix Antenna Features:
- Quadrifilar helix antenna
- Concurrent GNSS reception on GPS, GLONASS, Galileo and Beidou
- Rugged IP67 rating with SMA mount
- Small form factor
- Ground plane independent
- GIS, RTK and other high accuracy GNSS applications
- Low power consumption
- Low phase center variation over azimuth and elevation and among different samples
- Ultra-lightweight about 17-19 gramm
- Dimension 55x25mm
- Automotive grade electronics
