AllBand GNSS Cross Dipole Active GNSS Antenna description:
This active multi-band GNSS antenna that has been carefully designed to work well on the full GNSS spectrum. This allows the user to achieve higher location accuracy, as well as stability of position tracking in urban environments.
The AllBand antenna has excellent performance across the full bandwidth of the antenna and its design has an even gain across the hemisphere giving almost excellent, broad axial ratio which in turn makes it resilient to multipath rejection and excellent phase centre stability. The LNA used in the AllBand antenna ensures excellent out of band rejection and provides excellent positioning stability and reliability of GNSS signals.
Available in stock (42)
Couldn't load pickup availability
Product Features
Product Features
Signal Received:
- GPS L1/L2/L5
- GLONASS G1/G2/G3
- GALILEO E1/E5a/E5b/E6
- BDS B1I/B2I/B3I/B1C/B2a/B2b
- SBAS L1/L5
- QZSS L1/L2/L5/L6
- IRNSS I5
Amplifiers characteristics:
- Typ. LNA Gain: 25 dB
- LNA Noise Figure: Max. 3.4 dB
- Axial Ratio: 1 - 1.5 dB
- Max. Output VSWR: 1.5
- Polarization: RHCP
- Voltage range: 1.8 - 5 V
- Typ. current: 20 mA
Typical Applications Include:
- Autonomous Driving
- Precision Positioning for Robotics
- Precision Agriculture
- Inventory Management & Container tracking
- Telematics & Asset Tracking
- Timing Accuracy Synchronization
Certifications & Compliance
- Anti-jamming
- CE Certified
- RoHS & REACH Compliant
Mechanical data:
- Weight: 106 gr. with cable
- Dimensions: Ø92 x 65mm
- Cable: 1500mm RG-174
- Connector: SMA(M) Straight
- Housing color: black
- Housing material: ASA, FDM printed

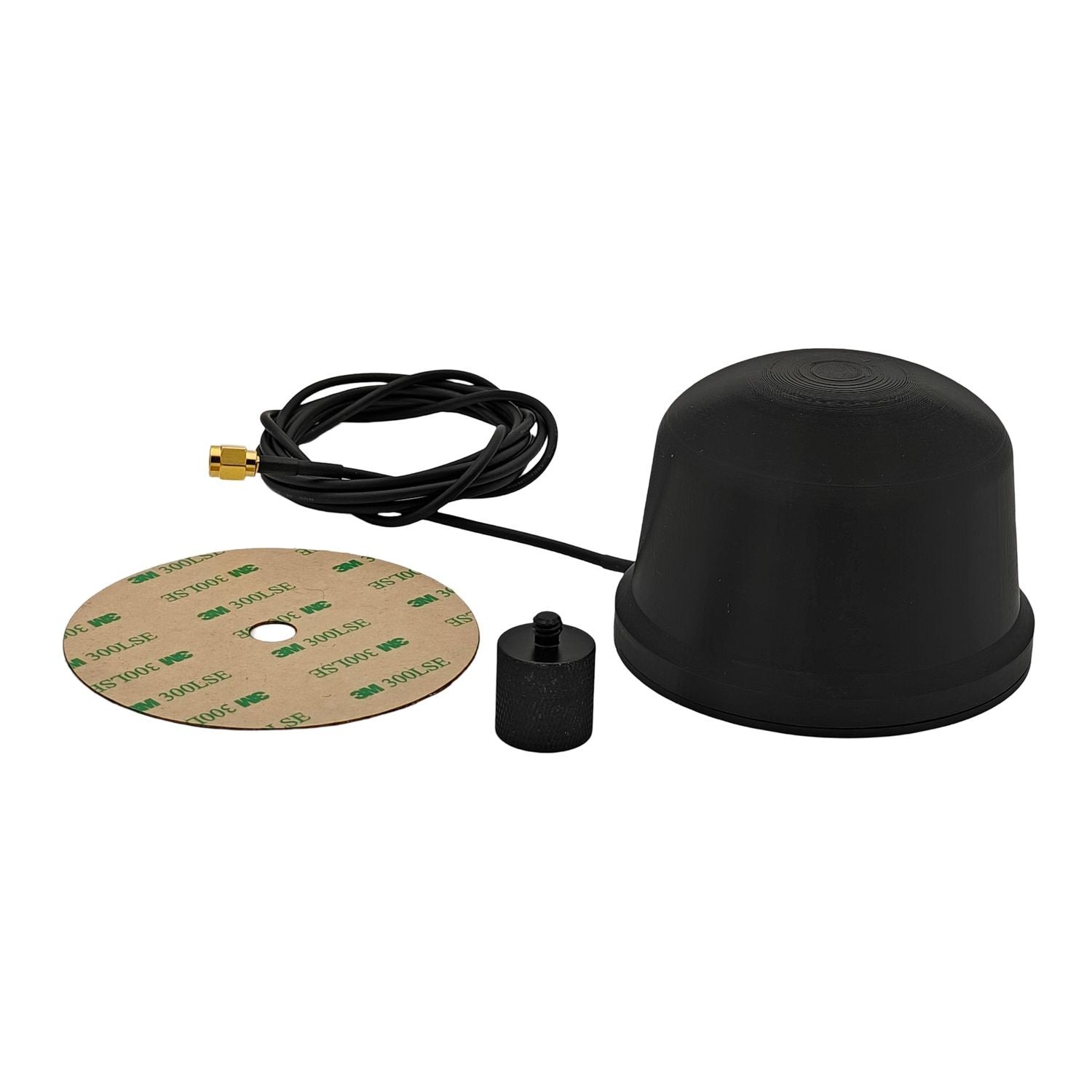

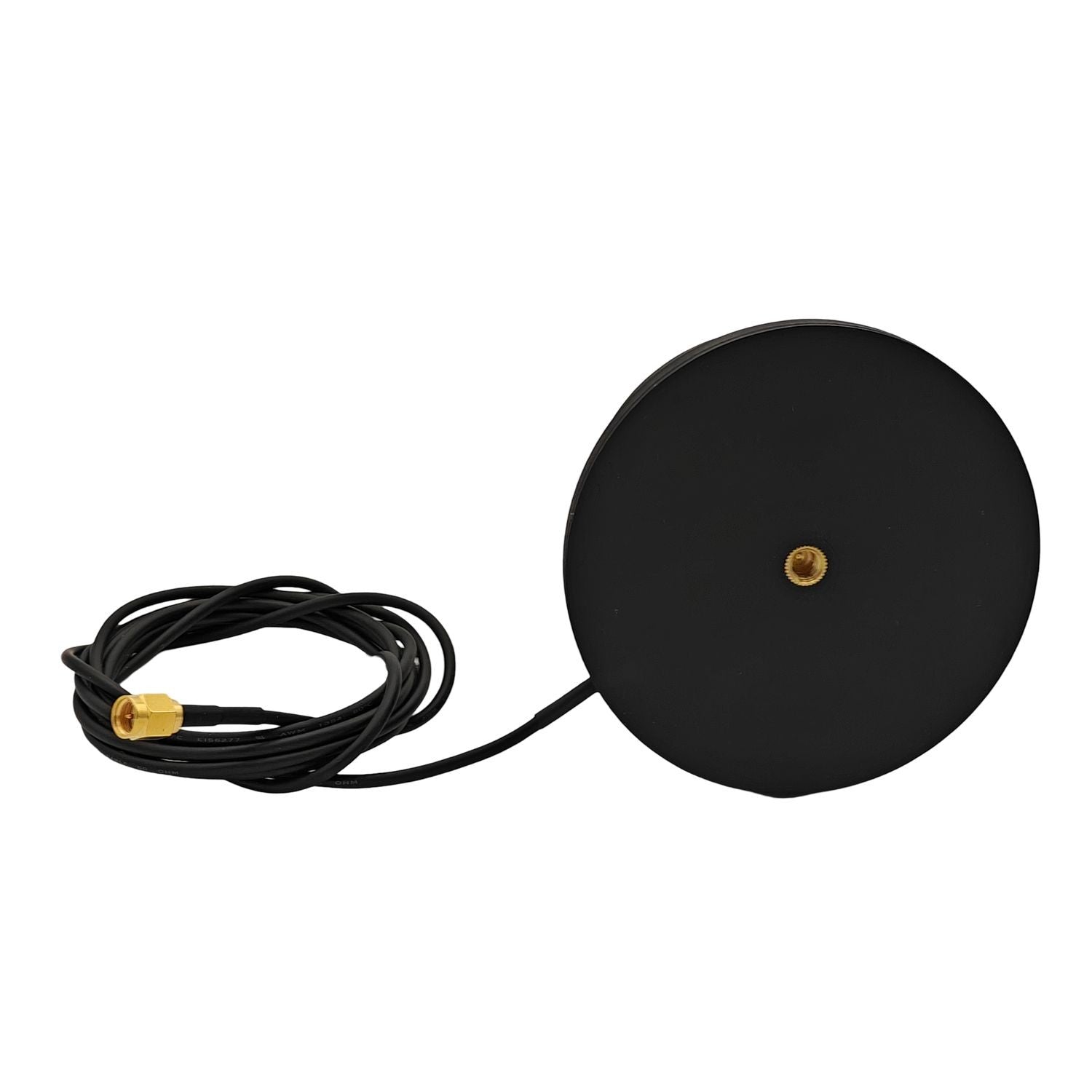

- Mounting: 1/4" photographic tripod, 5/8" threaded survey pin, 3M adhesive tape mount
- Protection: IP65
This MultiBand antenna is the latest addition to an ongoing product road map of high precision antennas. For RTK applications when used on the base and/or the rover, the MultiBand antenna can achieve genuine cm-level accuracy.
This is a custom-designed product with an enclosure 3D printed from ASA using FDM technology. Customization of the enclosure, cable lengths, and connector types is available upon request. Minimum order quantities apply.
