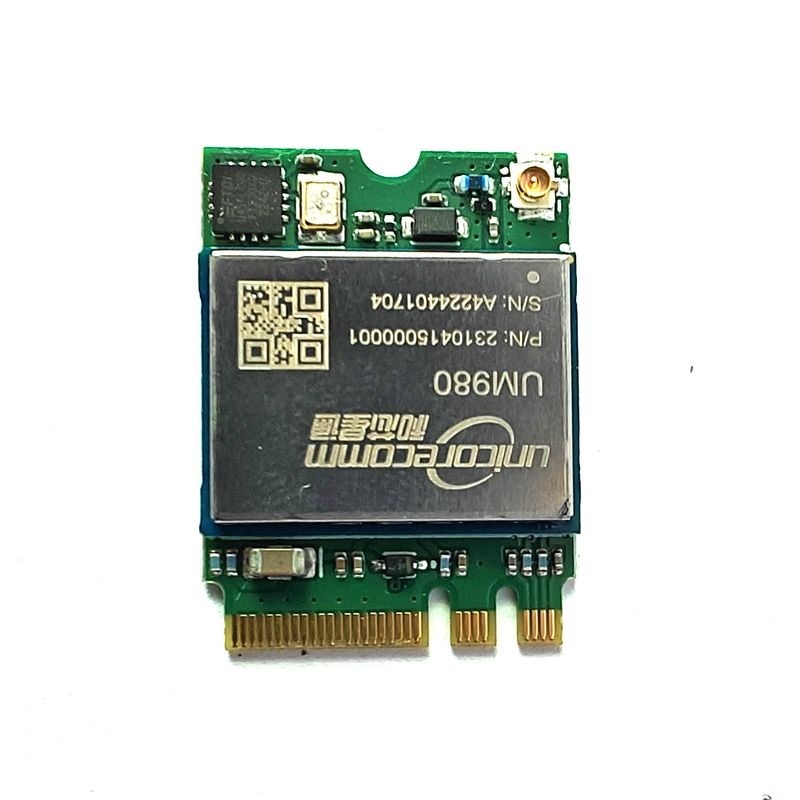

UM980 M.2 socket RTK GNSS receiver
UM980 M.2 socket RTK GNSS receiver
Tax excluded
UM980 M.2 socket All-constellation Multi-frequency High Precision RTK GNSS receiver.
UM980 is Unicore’s new-generation proprietary high-precision RTK positioning module based on the Nebulas IV SoC which integrates RF, baseband and high-precision algorithm. The module supports GPS L1C/A/L1C/L2P(Y)/L2C/L5, BDS B1I/B2I/B3I/B1C/B2a/B2b, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, QZSS L1C/A/L1C/L2C/L5, NavIC L5 and SBAS L1C/A. The built-in multi-frequency anti-jamming technology enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as city blocks and tree shades. Relying on the excellent performance, UM980 is well suited for high-precision navigation and positioning applications such as precision agriculture, surveying and mapping and so on.
Verfügbar auf Lager (45)
Abholverfügbarkeit konnte nicht geladen werden
Spezifikationen
Spezifikationen
- M.2 2230 Key A+E compatible (Part of NGFF, Next Generation Form Factor)
- Antenna input with IPEX connector
- Only USB interface used
- Extensive visualization and evaluation features
- Backup supercapacitor
- Dimensions 22x30 mm
- Weight: 10 gr.
- Fully assembled and ready to use
Produktvergleich
| Beschreibung |
| Preis |
| Verkäufer |
| Typ |
| Produktvarianten |
| UM980 M.2 socket All-constellation Multi-frequency High Precision RTK GNSS receiver. UM980 is Unicore’s new-generation proprietary high-precision RTK positioning module based on the Nebulas IV SoC which integrates RF, baseband and high-precision algorithm. The module supports GPS L1C/A/L1C/L2P(Y)/L2C/L5, BDS B1I/B2I/B3I/B1C/B2a/B2b, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, QZSS L1C/A/L1C/L2C/L5, NavIC L5 and SBAS L1C/A. The built-in multi-frequency anti-jamming technology enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as city blocks and tree shades. Relying on the excellent performance, UM980 is well suited for high-precision navigation and positioning applications such as precision agriculture, surveying and mapping and so on.
| Regulärer Preis
€169,99
Verkaufspreis
€169,99
Regulärer Preis
| ELTEHS |
Wählen Sie Ihre Option
UM980 M.2 socket RTK GNSS receiver
UM980 M.2 socket RTK GNSS receiver
Tax excluded
Verfügbar auf Lager (45)
UM980 M.2 socket All-constellation Multi-frequency High Precision RTK GNSS receiver.
UM980 is Unicore’s new-generation proprietary high-precision RTK positioning module based on the Nebulas IV SoC which integrates RF, baseband and high-precision algorithm. The module supports GPS L1C/A/L1C/L2P(Y)/L2C/L5, BDS B1I/B2I/B3I/B1C/B2a/B2b, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, QZSS L1C/A/L1C/L2C/L5, NavIC L5 and SBAS L1C/A. The built-in multi-frequency anti-jamming technology enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as city blocks and tree shades. Relying on the excellent performance, UM980 is well suited for high-precision navigation and positioning applications such as precision agriculture, surveying and mapping and so on.
- M.2 2230 Key A+E compatible (Part of NGFF, Next Generation Form Factor)
- Antenna input with IPEX connector
- Only USB interface used
- Extensive visualization and evaluation features
- Backup supercapacitor
- Dimensions 22x30 mm
- Weight: 10 gr.
- Fully assembled and ready to use
