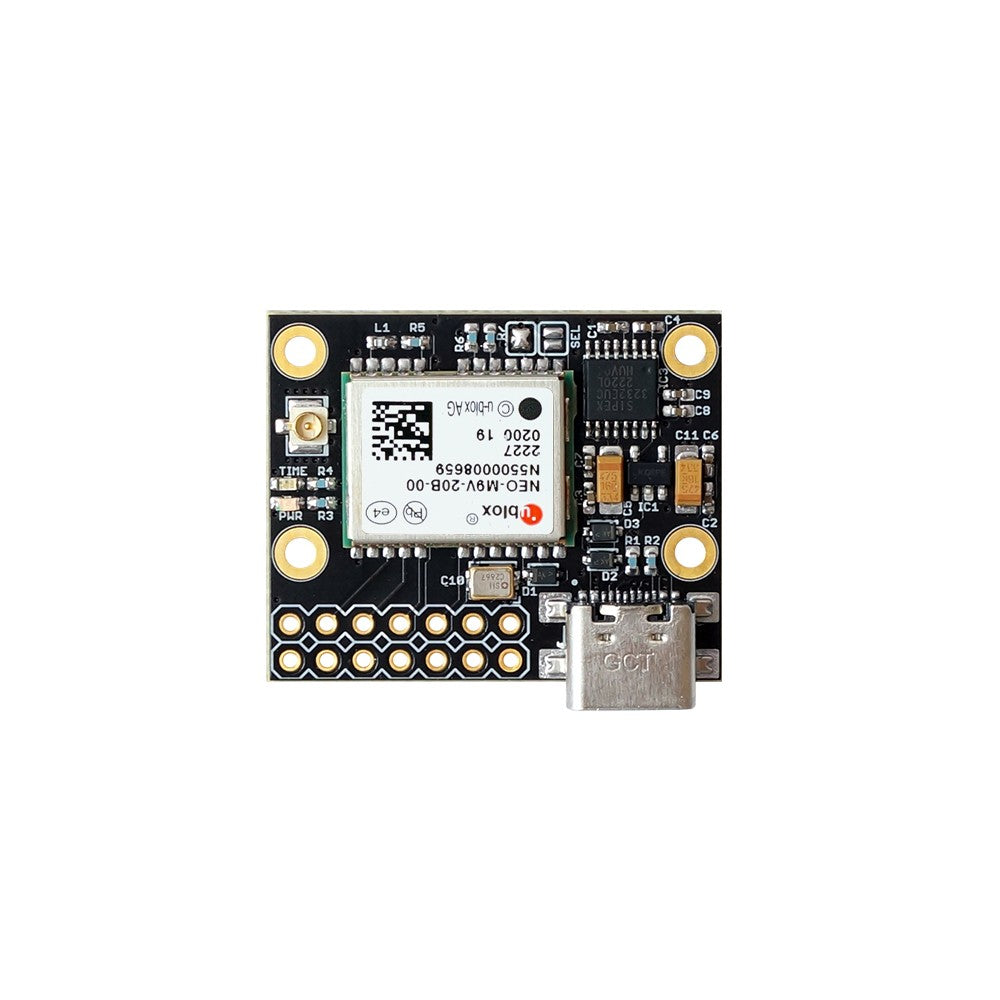

NEO-M9V USB C RS232 interface GNSS UDR/ADR module with UF.L

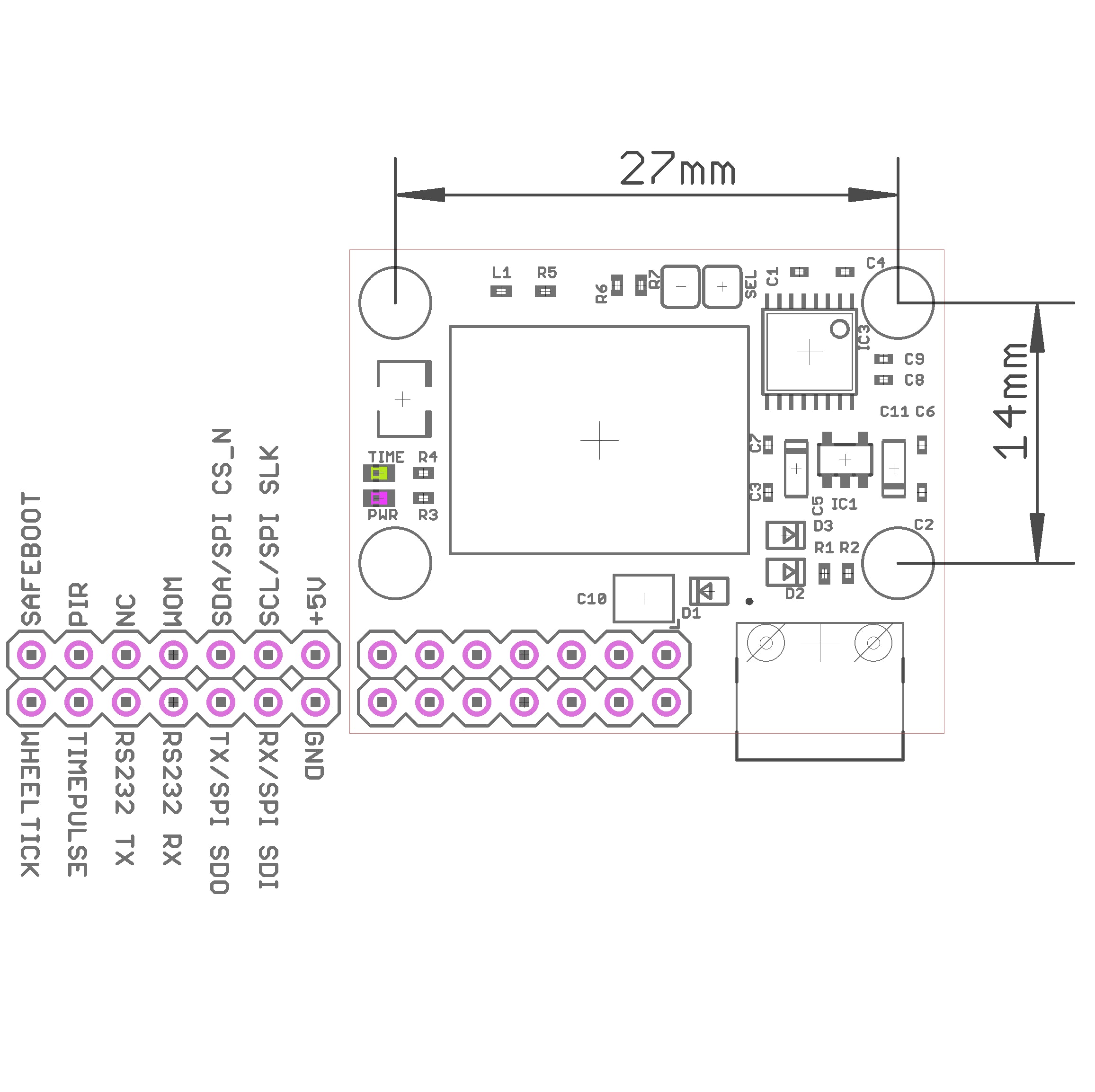

NEO-M9V USB type C, SPI, UART, RS232 interfaces Reference Board with UF.L antenna connectors for your UDR and ADR systems, UAV systems, Robots, RC, FPV or other projects. Designed for easy integration in your system.

The NEO-M9V module Based on the ultra-robust M9 platform, NEO-M9V is the first u-blox module to include both UDR and ADR options integrated into one receiver. The module also includes various dynamic models for after-market vehicles, motorcycles, and micromobility applications. All the components needed are on the module, including IMU. This makes the dead reckoning technology accessible and easy to use. Furthermore, the whole solution runs on the module which means that it is not necessary to run external libraries on the host.

This NEO-M9V GNSS module with dead reckoning technology delivers three times better accuracy than GNSS-only receivers, enabling a smooth urban navigation or tracking experience. In challenging environments, GNSS-only receivers typically have many outliers. In such conditions, statistical accuracy can easily exceed 10 meters. With NEO-M9V, there are few or no outliers. In typical urban scenarios, NEO-M9V offers sub-5-meter accuracy.

Maximum position availability is guaranteed, thanks to the concurrent reception of four global navigation satellite systems (GPS, Galileo, GLONASS, and BeiDou) and dead reckoning technology. UDR enables fast time to market, and ADR improves the accuracy performance if there are long GNSS outages. Excellent RF interference mitigation thanks to SAW/LNA enables simple and fast RF designs including considerable cost savings from reduced design efforts.
