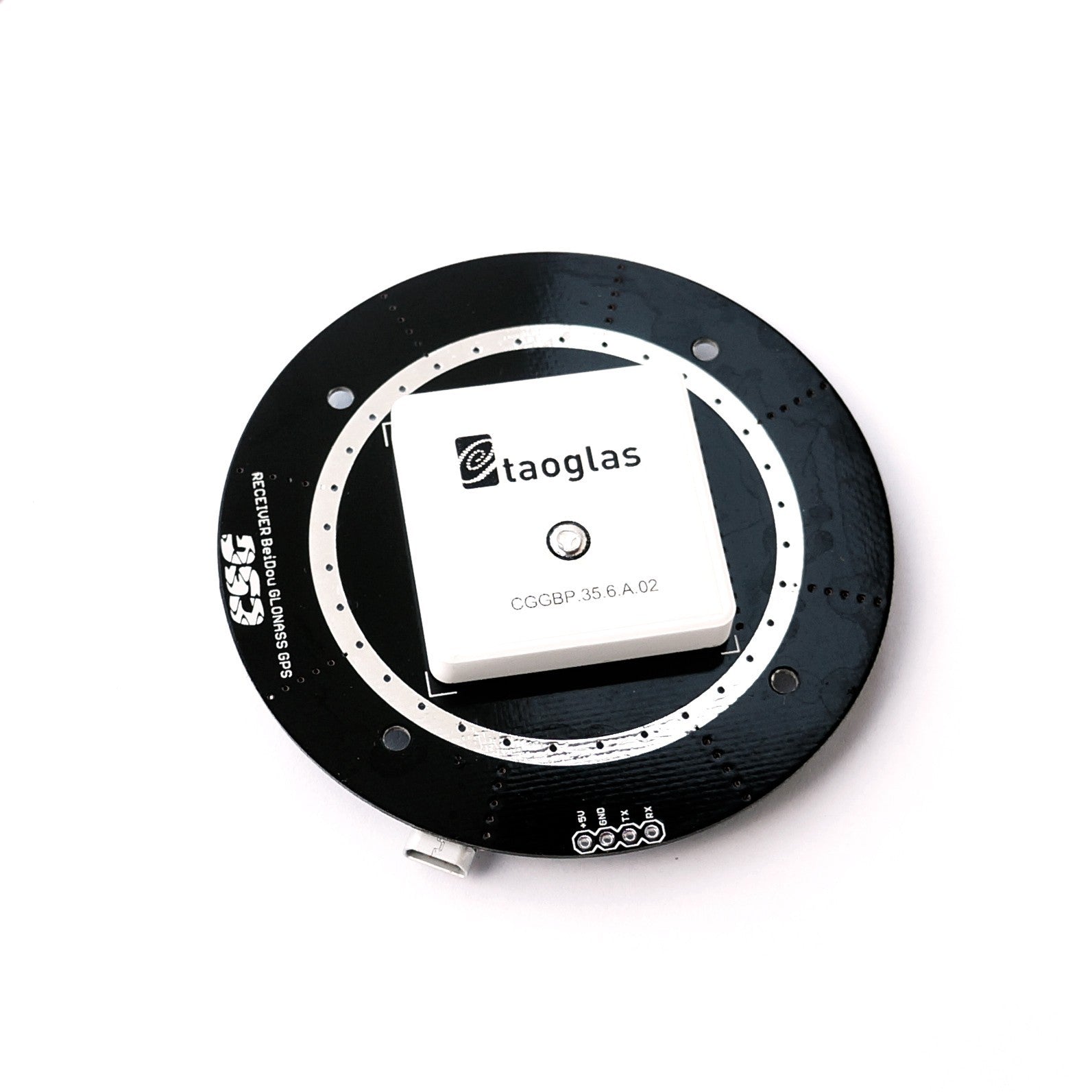

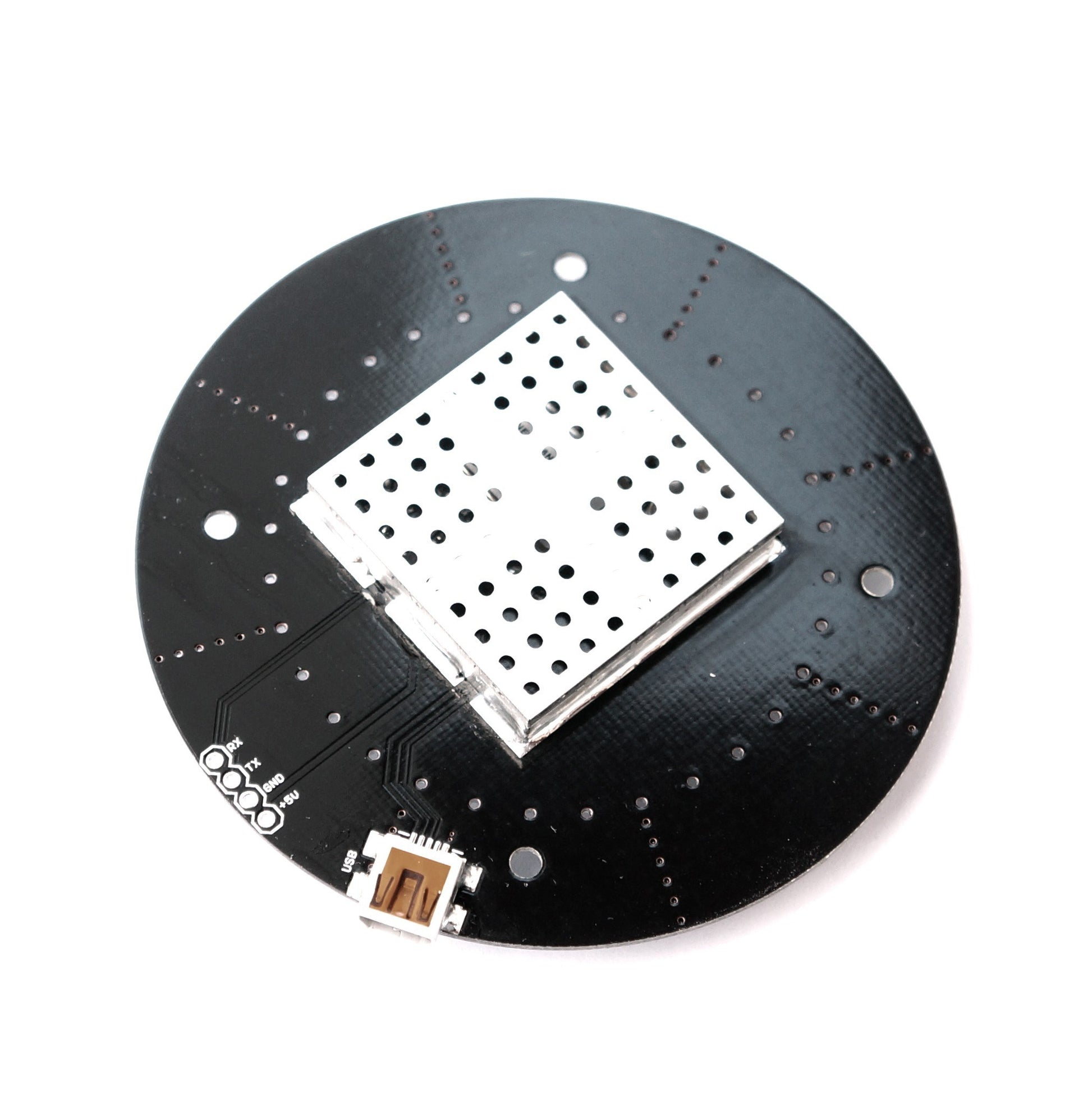

NEO-M9V ULTRA FAST UDR ADR 50Hz receiver with 35mm Antenna and EMI protection

NEO-M9V ULTRA FAST UDR ADR 50Hz receiver with 35mm with EMI protection. Ready for unwanted signal interference or multipath blocking.

This board designed for large scale drone or groud robots. Board have EMI and RFI protection and will be used with large current robots. This boards ready for unwanted signal interference or multipath blocking. The NEO-M9V Evaluation board makes evaluating the high performance of the u-blox 9 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M9V Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M9N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M9V

The NEO-M9V module Based on the ultra-robust M9 platform, NEO-M9V is the first u-blox module to include both UDR and ADR options integrated into one receiver. The module also includes various dynamic models for after-market vehicles, motorcycles, and micromobility applications. All the components needed are on the module, including IMU. This makes the dead reckoning technology accessible and easy to use. Furthermore, the whole solution runs on the module which means that it is not necessary to run external libraries on the host.

This NEO-M9V GNSS module with dead reckoning technology delivers three times better accuracy than GNSS-only receivers, enabling a smooth urban navigation or tracking experience. In challenging environments, GNSS-only receivers typically have many outliers. In such conditions, statistical accuracy can easily exceed 10 meters. With NEO-M9V, there are few or no outliers. In typical urban scenarios, NEO-M9V offers sub-5-meter accuracy.

Maximum position availability is guaranteed, thanks to the concurrent reception of four global navigation satellite systems (GPS, Galileo, GLONASS, and BeiDou) and dead reckoning technology.

UDR enables fast time to market, and ADR improves the accuracy performance if there are long GNSS outages. Excellent RF interference mitigation thanks to SAW/LNA enables simple and fast RF designs including considerable cost savings from reduced design efforts.

With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated.
