NEO-M9N RS232 INDUSTRIAL GNSS receiver board with SMA
NEO-M9N RS232 INDUSTRIAL GNSS receiver board with SMA
Tax excluded
NEO-M9N RS232 INDUSTRIAL four GNSS receiver EVAL module USB C, I2C, UART, RS232 with SMA antenna connectors.
NEO-M9N RS232 INDUSTRIAL four GNSS Reference Board with SMA antenna connectors for your UAV systems, Robots, RC, FPV or other projects. Ultra small and light.
The NEO-M9N Evaluation board makes evaluating the high performance of the u-blox 9 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M9N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations.

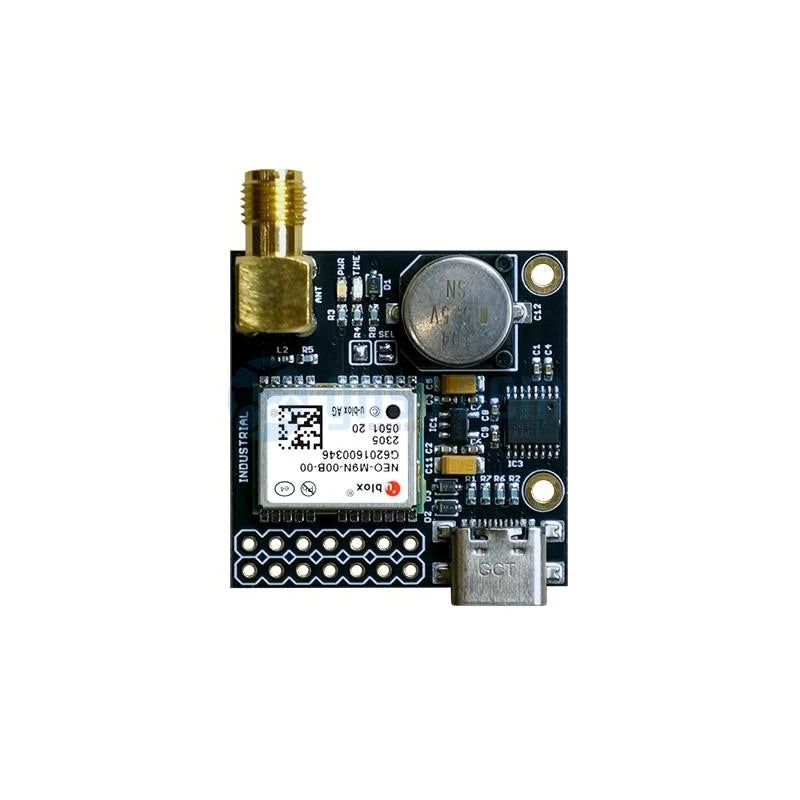

Furthermore, the NEO-M9N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M9N with SMA antenna connectors.
This product comes with 1 years worldwide warranty.
Verfügbar auf Lager (100)
Abholverfügbarkeit konnte nicht geladen werden
Spezifikationen
Spezifikationen
- 92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F BeiDou B1I, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator
- USB type C, I2C (SDA, SCL), UART (Tx, Rx), RS232 for UART, SPI interface, EXTINT pin, SAFEBoot pin
- SMA antenna connectors
- u-centre ublox Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Supercapacitor for HOT module start

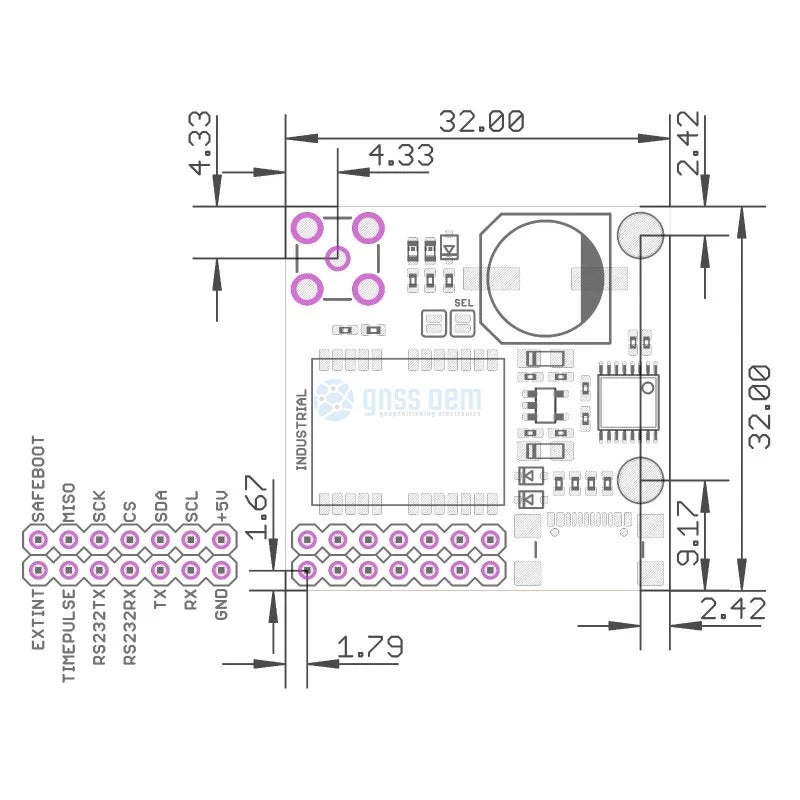

- Dimensions: 32x32 mm
- Weight: 3.1 gr.
- Working temperature: -40 °C ~ +85 °C
- Storage temperature: -55 °C ~ +95°C
- Humidity: 95% No condensation
- Vibration: MIL-STD-810F
- Shock: MIL-STD-810F
Produktdetails
Produktdetails
Produktvergleich
| Beschreibung |
| Preis |
| Verkäufer |
| Typ |
| Produktvarianten |
| NEO-M9N RS232 INDUSTRIAL four GNSS receiver EVAL module USB C, I2C, UART, RS232 with SMA antenna connectors. NEO-M9N RS232 INDUSTRIAL four GNSS Reference Board with SMA antenna connectors for your UAV systems, Robots, RC, FPV or other projects. Ultra small and light. The NEO-M9N Evaluation board makes evaluating the high performance of the u-blox 9 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M9N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M9N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M9N with SMA antenna connectors. This product comes with 1 years worldwide warranty.
| Regulärer Preis
$78.00
Verkaufspreis
$78.00
Regulärer Preis
| ELTEHS |
Wählen Sie Ihre Option
NEO-M9N RS232 INDUSTRIAL GNSS receiver board with SMA
NEO-M9N RS232 INDUSTRIAL GNSS receiver board with SMA
Tax excluded
Verfügbar auf Lager (100)
NEO-M9N RS232 INDUSTRIAL four GNSS receiver EVAL module USB C, I2C, UART, RS232 with SMA antenna connectors.
NEO-M9N RS232 INDUSTRIAL four GNSS Reference Board with SMA antenna connectors for your UAV systems, Robots, RC, FPV or other projects. Ultra small and light.
The NEO-M9N Evaluation board makes evaluating the high performance of the u-blox 9 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M9N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations.
Furthermore, the NEO-M9N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M9N with SMA antenna connectors.
This product comes with 1 years worldwide warranty.
- 92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F BeiDou B1I, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator
- USB type C, I2C (SDA, SCL), UART (Tx, Rx), RS232 for UART, SPI interface, EXTINT pin, SAFEBoot pin
- SMA antenna connectors
- u-centre ublox Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Supercapacitor for HOT module start
- Dimensions: 32x32 mm
- Weight: 3.1 gr.
- Working temperature: -40 °C ~ +85 °C
- Storage temperature: -55 °C ~ +95°C
- Humidity: 95% No condensation
- Vibration: MIL-STD-810F
- Shock: MIL-STD-810F
