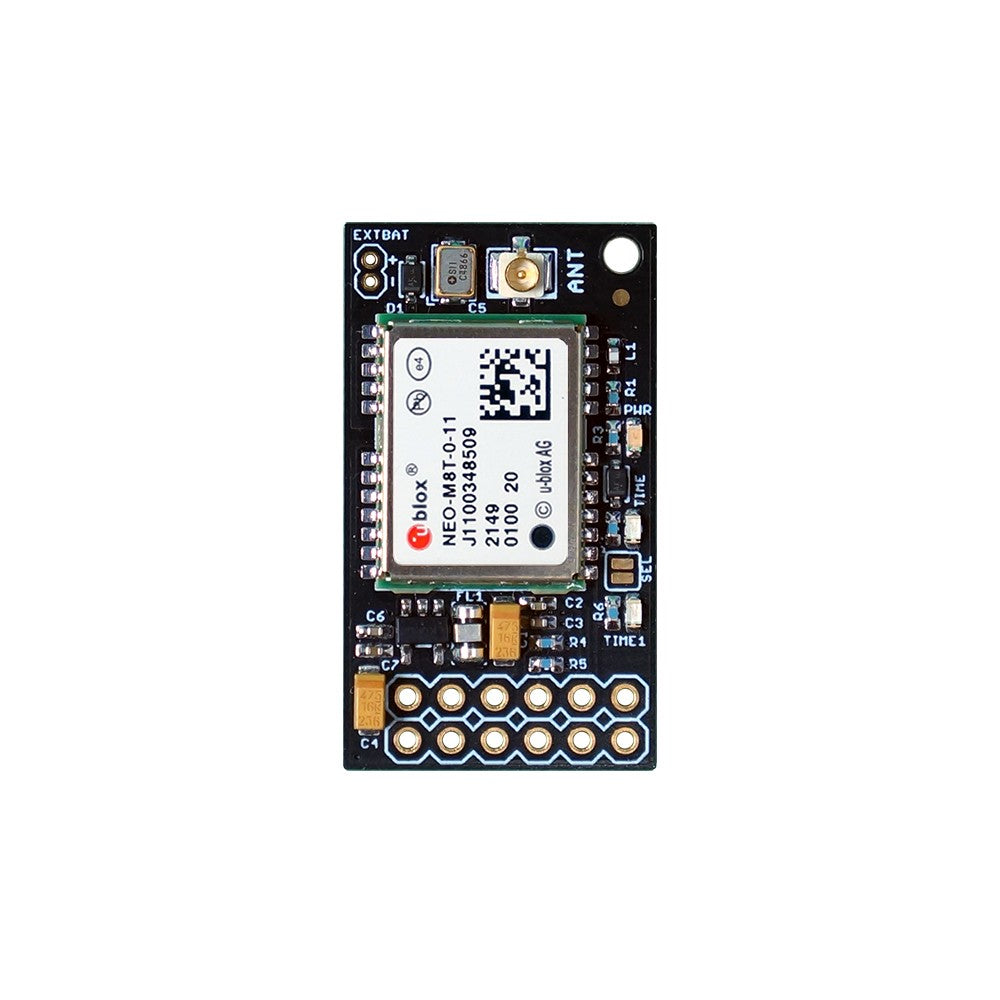

NEO-M8T InCase PIN series TIME & RAW receiver board (RTK ready) UF.L antenna connector
NEO-M8T InCase PIN series TIME & RAW receiver board (RTK ready) UF.L antenna connector
Tax excluded
InCase series NEO-M8T Reference Board with UF.L antenna connectors for your RTK systems, UAV systems, Robots, RC, FPV or other projects. Designed for easy integration in your system.
The NEO-M8T concurrent GNSS modules deliver high integrity, precision timing in demanding applications world-wide. Support for BeiDou and GLONASS constellations enables compliance with national requirements. Enhanced sensitivity and concurrent dual-constellation reception extend coverage and integrity to challenging signal environments. Survey-in and fixed-position navigation reduce timing jitter, even at low signal levels, and enable synchronization to be maintained with as few as one single satellite in view. Support for low duty cycle operation reduces power consumption for battery-powered applications.
This timing products include timing integrity measures with Receiver Autonomous Integrity Monitoring (RAIM) and continuous phase uncertainty estimation. They feature high dynamic range radios with both analog and digital interference mitigation, supporting applications in wireless communications equipment. u-blox timing products can make use of u-blox AssistNow or industry standard aiding data. This reduces the time to first fix and delivers exceptional acquisition sensitivity, even on first installation before precise location, time or frequency are known.
The NEO-M8T Evaluation board makes evaluating the high performance of the u-blox 8 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M8T Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M8T breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M8T
Verfügbar auf Lager (4999)
Abholverfügbarkeit konnte nicht geladen werden
Spezifikationen
Spezifikationen
- 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
- USB, I2C, SPI and UART (Tx, Rx) RAW data out available
- Support active antenna
- u-center ublox Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED 1
- Time pulse LED 2
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Supercapacitor for HOT module start
- Wire Pad for external backup battery
- Dimensions 32x19 mm
- Weight: 2.5 gr.
- Fully assembled and ready to use
- Can be easy mounted in your case by double sided tape
- Pin holes for easy soldering 2.54mm pitch

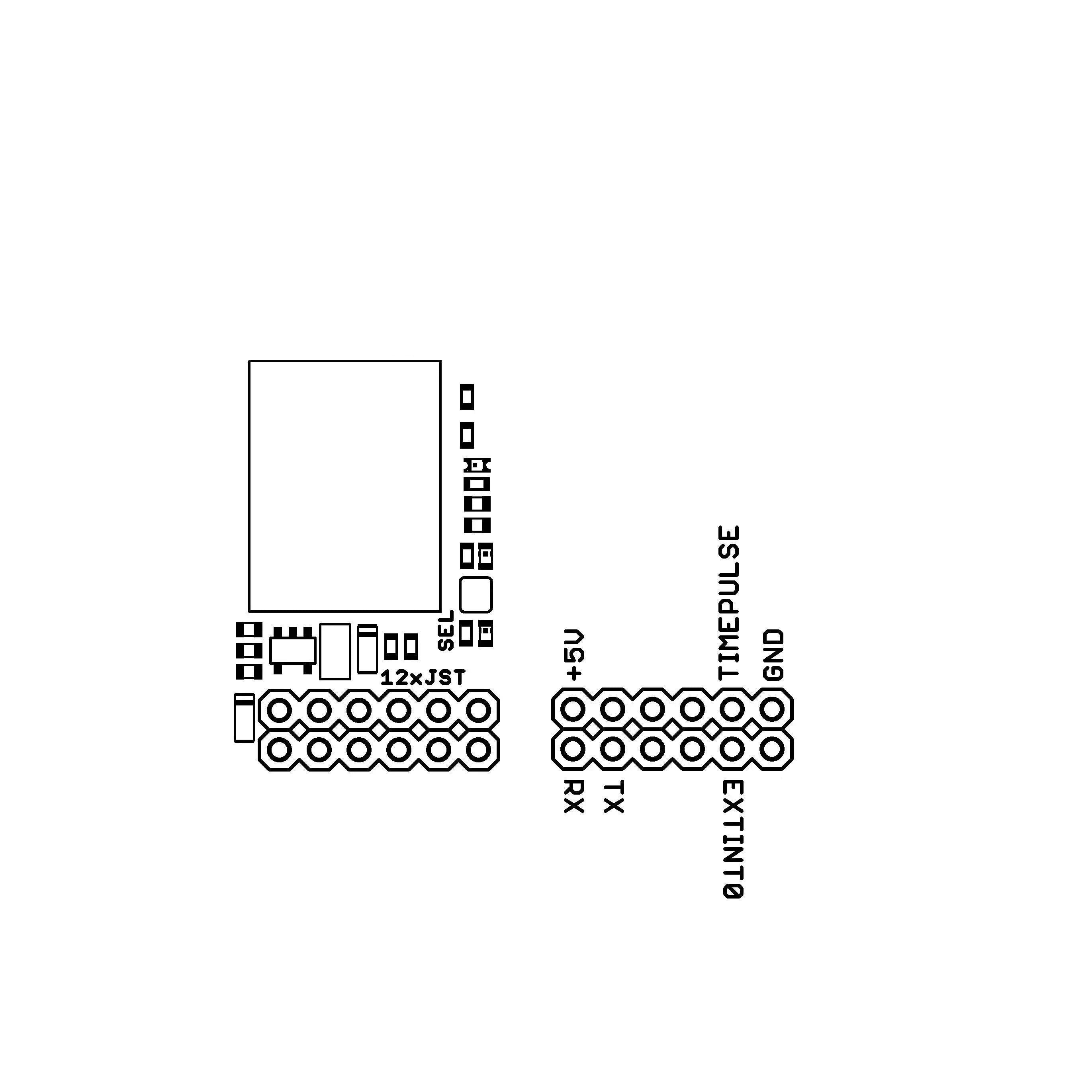

- Output avail for use Time Pulse 1, Time Pulse 2, Interupt 0, Interuprt 1, all pins for SPI, UART, USB, I2C interfaces
