NEO-M8N GPS GNSS receiver RS232 board with UF.L and USB C for UAV, Robots
NEO-M8N GPS GNSS receiver RS232 board with UF.L and USB C for UAV, Robots
Tax excluded

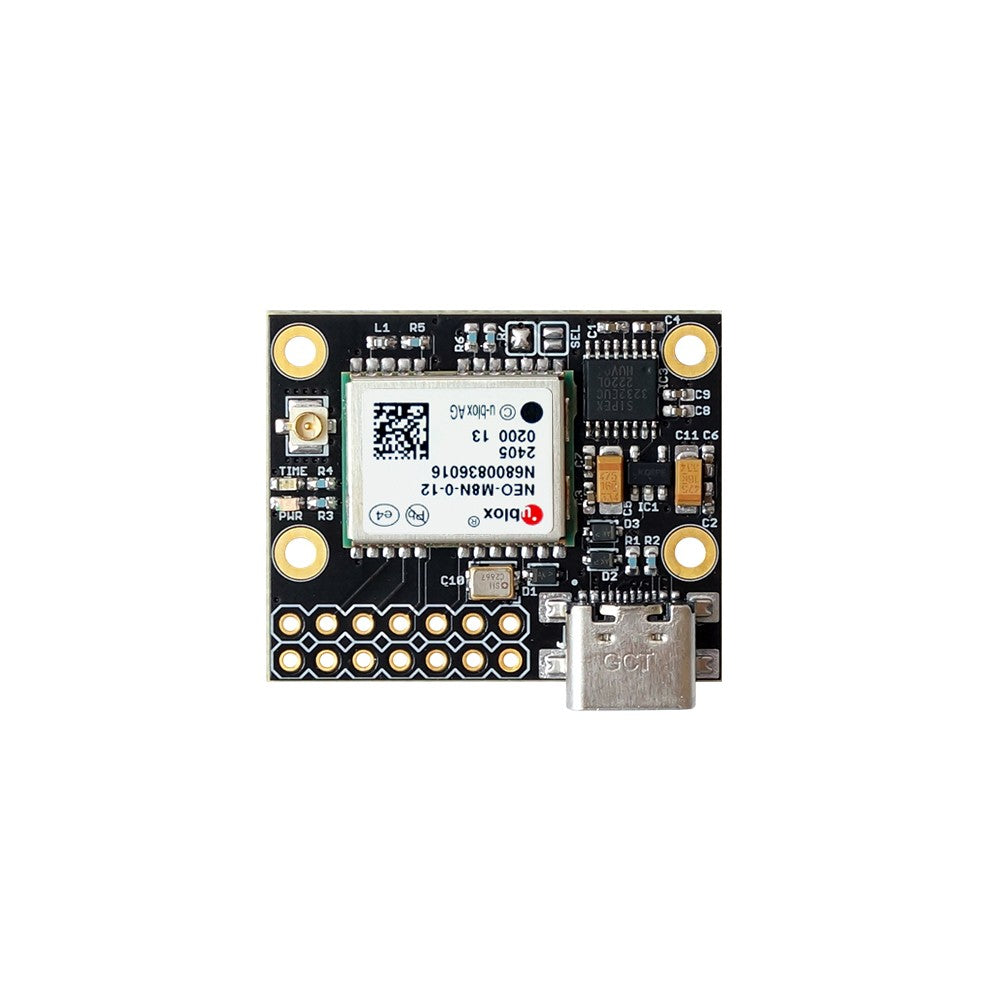

NEO-M8N Reference Board with RS232, USB C and UF.L antenna connector for your UAV systems, Robots, RC, FPV or other projects. Ultra small and light.
The NEO-M8N Evaluation board makes evaluating the high performance of the u-blox 8 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M8N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M8N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M8N with UF.L antenna connectors
Verfügbar auf Lager (98)
Abholverfügbarkeit konnte nicht geladen werden
Spezifikationen
Spezifikationen
- 72-channel u-blox u-blox M8 GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C (NEO-M8N)
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator
- USB, I2C (SDA,SCL), RS232, UART (Tx, Rx), SAFEBoot pin, EXTINT pin, TIMEPULSE pin
- UF.L antenna connector
- USB type C connector
- u-center Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Supercapacitors for HOT module start

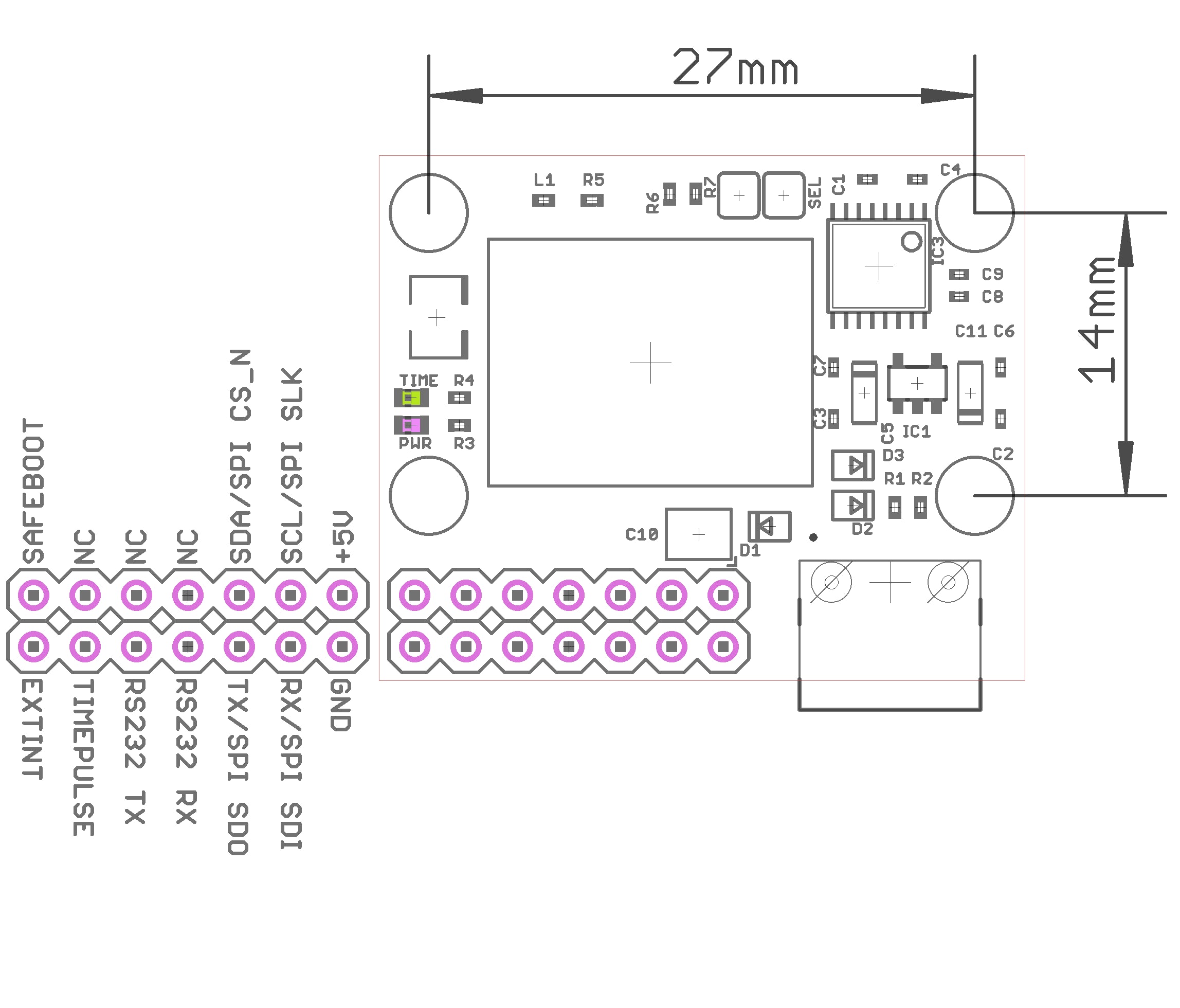

- Dimensions: 32x26 mm
- Weight: 3.1 gr.
- Fully assembled and ready to use
Produktdetails
Produktdetails
Produktvergleich
| Beschreibung |
| Preis |
| Verkäufer |
| Typ |
| Produktvarianten |
| NEO-M8N Reference Board with RS232, USB C and UF.L antenna connector for your UAV systems, Robots, RC, FPV or other projects. Ultra small and light. The NEO-M8N Evaluation board makes evaluating the high performance of the u-blox 8 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M8N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M8N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M8N with UF.L antenna connectors
| Regulärer Preis
€69,99
Verkaufspreis
€69,99
Regulärer Preis
| ELTEHS |
Wählen Sie Ihre Option
NEO-M8N GPS GNSS receiver RS232 board with UF.L and USB C for UAV, Robots
NEO-M8N GPS GNSS receiver RS232 board with UF.L and USB C for UAV, Robots
Tax excluded
Verfügbar auf Lager (98)
NEO-M8N Reference Board with RS232, USB C and UF.L antenna connector for your UAV systems, Robots, RC, FPV or other projects. Ultra small and light.
The NEO-M8N Evaluation board makes evaluating the high performance of the u-blox 8 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M8N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M8N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M8N with UF.L antenna connectors
- 72-channel u-blox u-blox M8 GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C (NEO-M8N)
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator
- USB, I2C (SDA,SCL), RS232, UART (Tx, Rx), SAFEBoot pin, EXTINT pin, TIMEPULSE pin
- UF.L antenna connector
- USB type C connector
- u-center Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Supercapacitors for HOT module start
- Dimensions: 32x26 mm
- Weight: 3.1 gr.
- Fully assembled and ready to use
