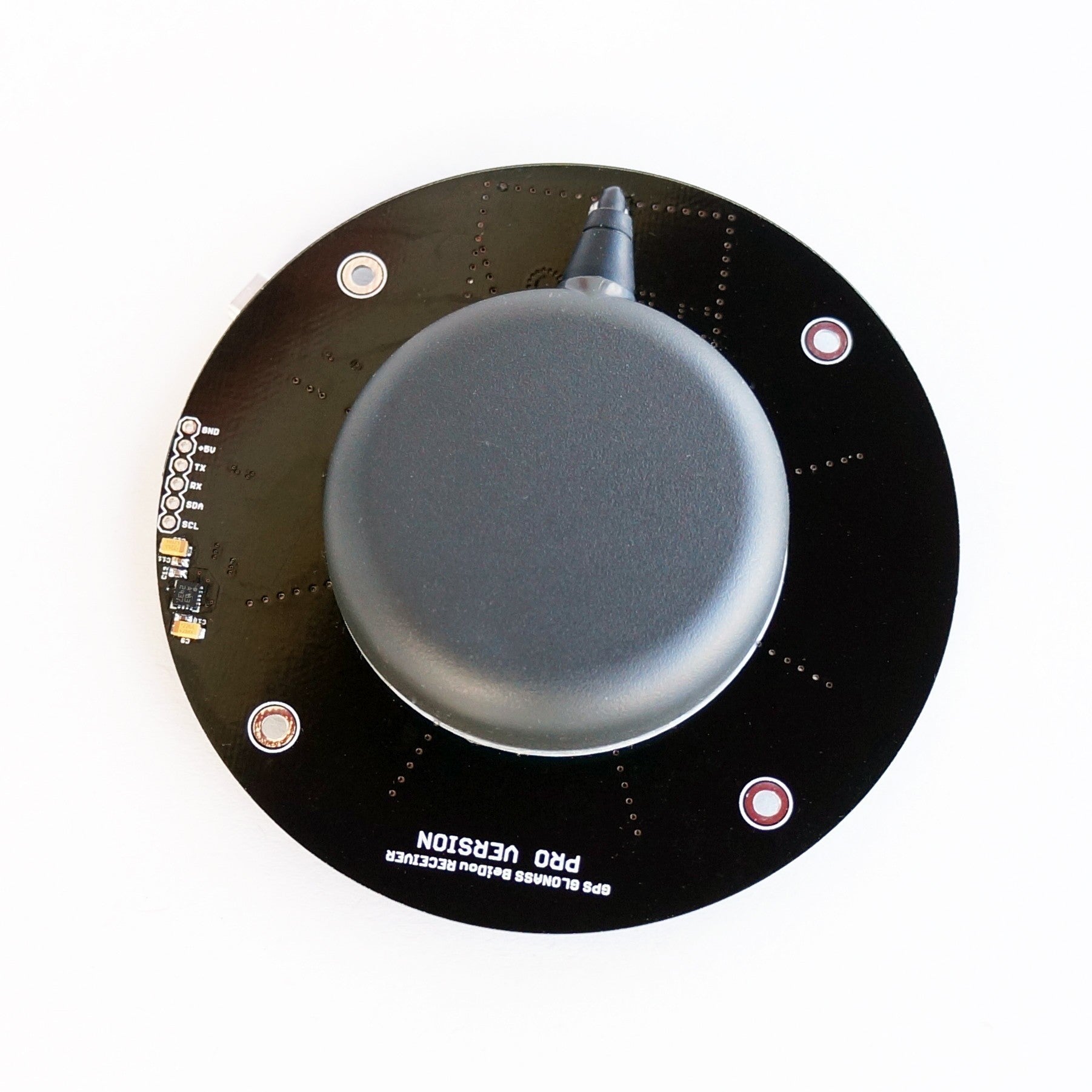

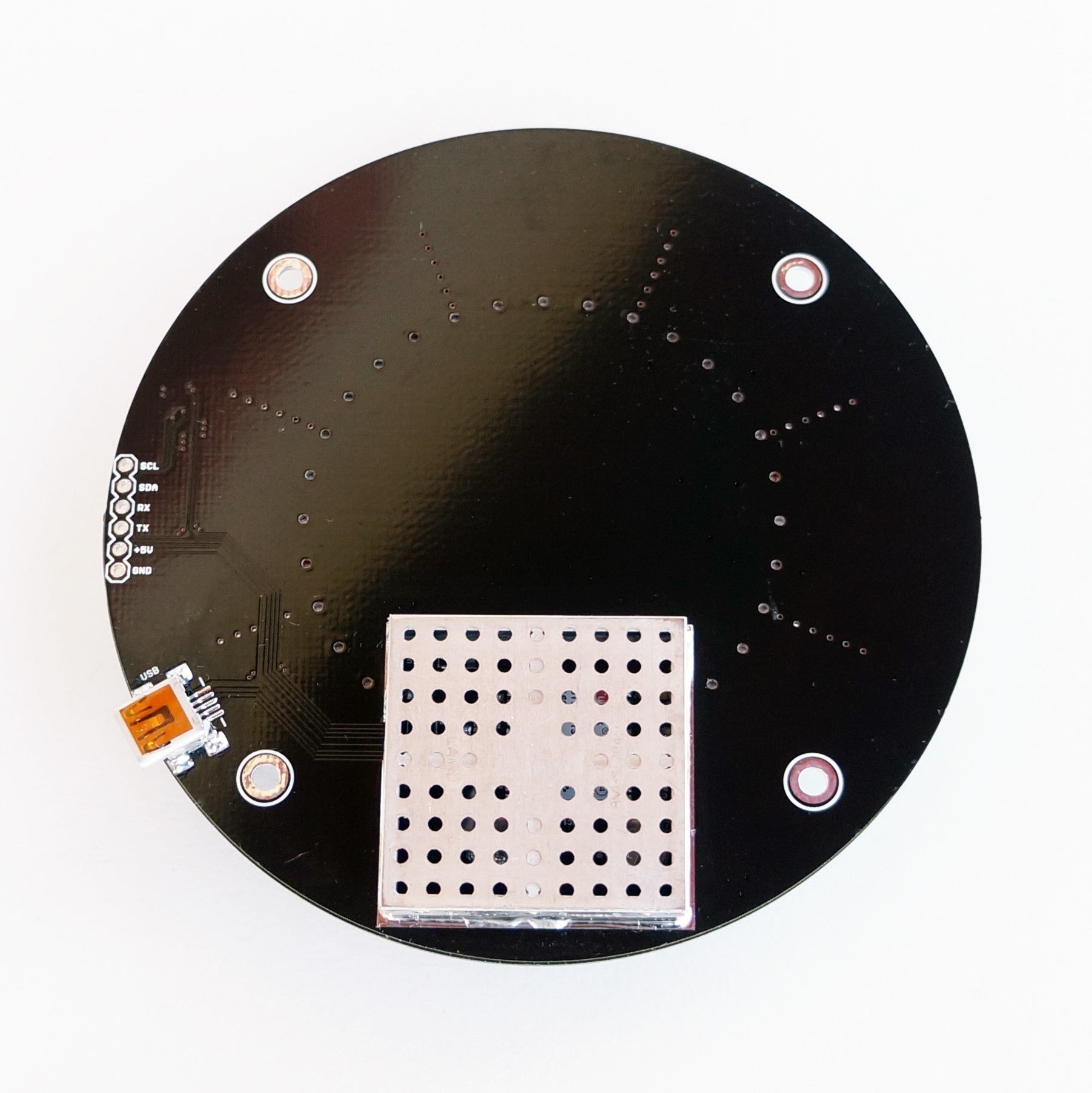

NEO-M8N Dual Band receiver with EMI and RFI protection + LIS3MDL and Tallysman antenna
NEO-M8N Dual Band receiver with EMI and RFI protection + LIS3MDL and Tallysman antenna
Tax excluded
NEO-M8N Dual Band receiver GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS receiver with Tallysman active antenna EMI protection and LIS3MDL Magnetometer.
This boards ready for unwanted signal interference or multipath blocking. The NEO-M8N Evaluation board makes evaluating the high performance of the u-blox 8 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M8N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M8N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M8N with Compass.
Verfügbar auf Lager (236)
Abholverfügbarkeit konnte nicht geladen werden
Spezifikationen
Spezifikationen
- 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
- USB and UART (Tx, Rx) RAW data out available
- Dual band GPS, Glonass, Beidou antenna
- LIS3MDL I2C magnetometr
- u-center u-blox Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Supercapacitor for HOT module start
- Dimensions: Round 100 mm; hole distance 60x60 mm
- Weight: 113 gr.
- EMI and RFI protection
- Fully assembled and ready to use
- Tallysman antenna
