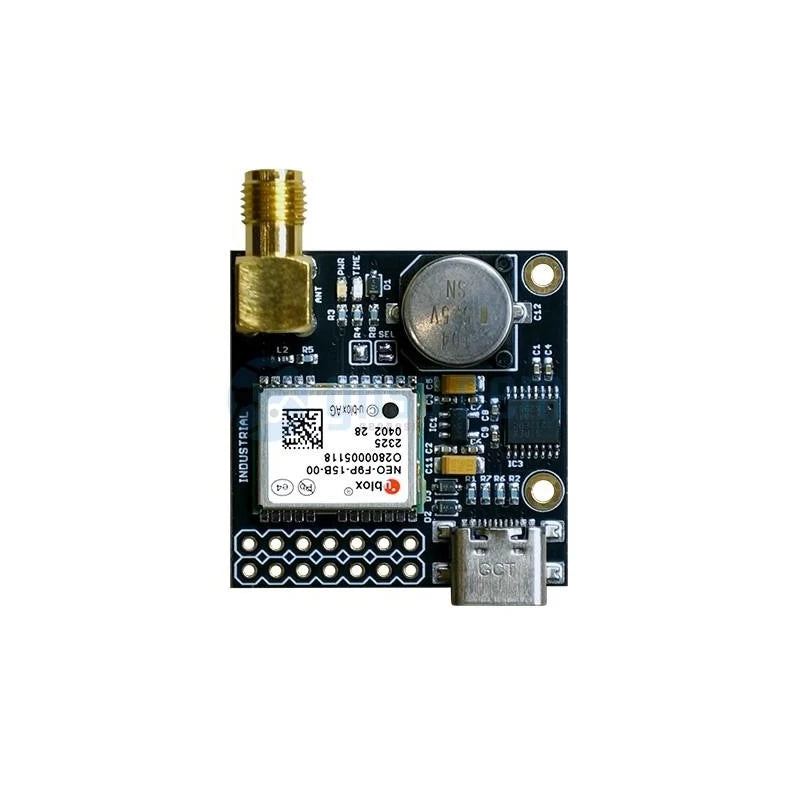

NEO-F9P-15B RS232 INDUSTRIAL Multi-band RTK GNSS module with SMA

NEO-F9P-15B RS232 INDUSTRIAL USB type C, SPI, UART1, UART2, RS232 interface, Multi-band L1,L5 RTK GNSS SMA antenna connector

NEO-F9P-15B RS232 INDUSTRIAL with USB Type C Multi-band L1,L5 RTK GNSS SMA antenna connector RS232 interface, for your UDR systems, UAV systems, Robots, RC, FPV or other projects.

NEO-F9P High Precision GNSS breakout PCB with UF.L antenna connectors. Multi-band receiver delivers centimeter-level accuracy in seconds. The NEO-F9P positioning module features the new u-blox receiver platform, which provides multi-band GNSS to high volume industrial applications in a compact form factor. NEO-F9P is a multi-band GNSS module with integrated u-blox multi-band RTK technology for centimeter-level accuracy. The module enables precise navigation and automation of moving industrial machinery by means of a small, surface mounted module.

The NEO-F9P module is designed for easy integration and low design-in costs with minimal e-BOM. It is well-suited for mass market adoption, thanks to its small package size, light weight, and small power consumption. ZED-F9P ensures the security of positioning and navigation information by using secure interfaces and advanced jamming and spoofing detection technologies.

NEO-F9P offers support for a range of correction services allowing each application to optimize performance according to the application’s individual need.

Board can be used for a Base or Rover operation mode!

This product comes with 1 years worldwide warranty.
