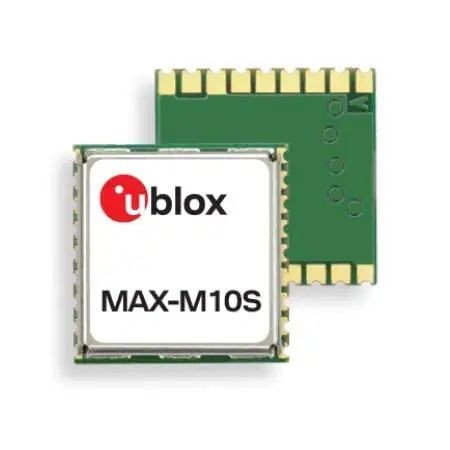

MAX-M10S Positioning Module

Spezifikationen

Produktdetails

u-blox M10 engine GPS L1 C/A, QZSS L1 C/A L1S, GLONASS L1OF BeiDou B1I/B1C, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
Nav. update rate:
Single GNSS: up to 18 Hz
Concurrent GNSS: up to 10 Hz
Position accuracy 1,5 m CEP
Acquisition Cold starts: 24 s
Aided starts: 2 s
Reacquisition: 1 s
Sensitivity Tracking & Nav: –167 dBm
Cold starts: –148 dBm
Hot starts: –159 dBm
u-blox Super-S Improved accuracy with small antennas
Data batching Autonomous tracking up to 10 min at 1 Hz
Odometer Measure traveled distance with support for different user profiles
TCXO Oscillator
Built-In RTC crystal
On-chip LNA
Anti jamming Active CW detection and removal
Memory On-board ROM
Supported Active and passive antennas

Materialien & Pflege

MAX-M10S Positioning Module

MAX-M10S Positioning Module

Artikelnummer: MAX-M10S

€9,50

€9,50

Tax excluded

MAX-M10S GNSS receiver

Please log in to download the datasheet.

Verfügbar auf Lager (1000)
