mosaic-G5 P3H Mic Dual Channel RTK GNSS receiver board – Eltehs GNSS Store (elt0774)

mosaic-G5 P3H Mic Dual Channel RTK GNSS receiver board

Spezifikationen

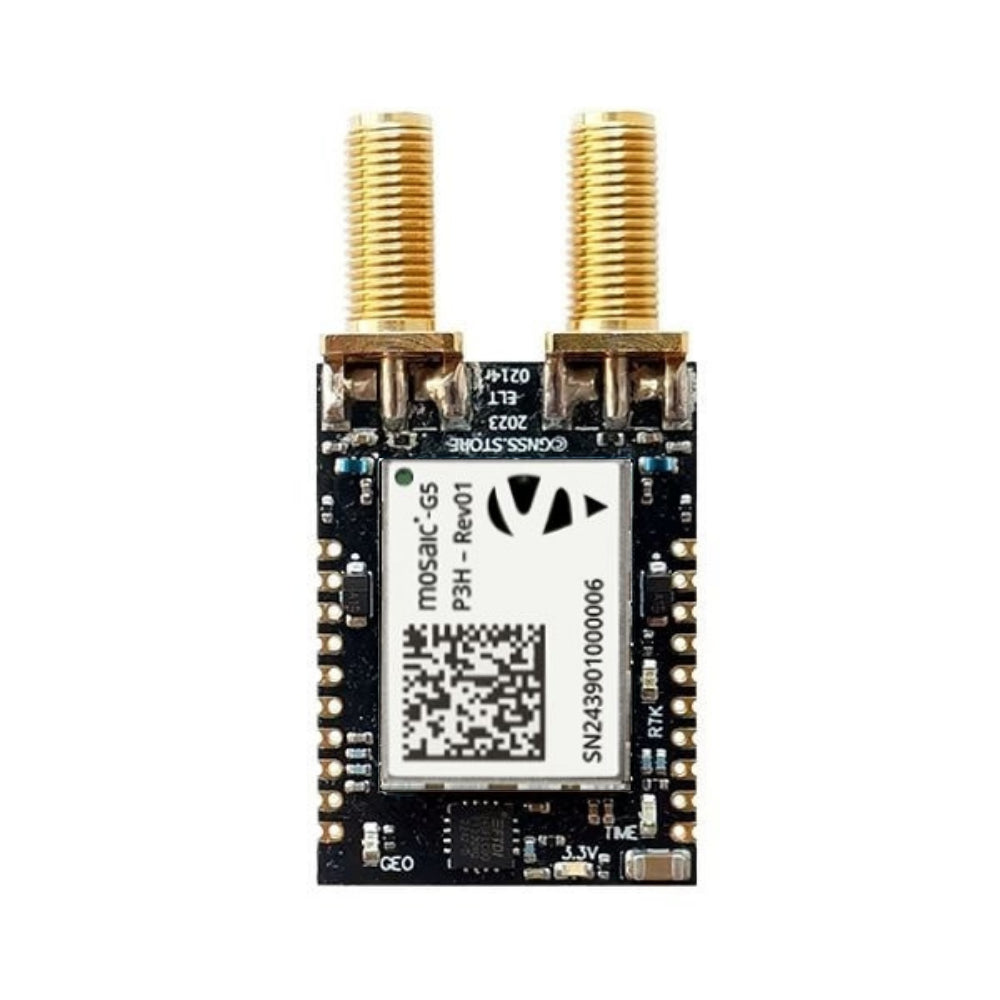

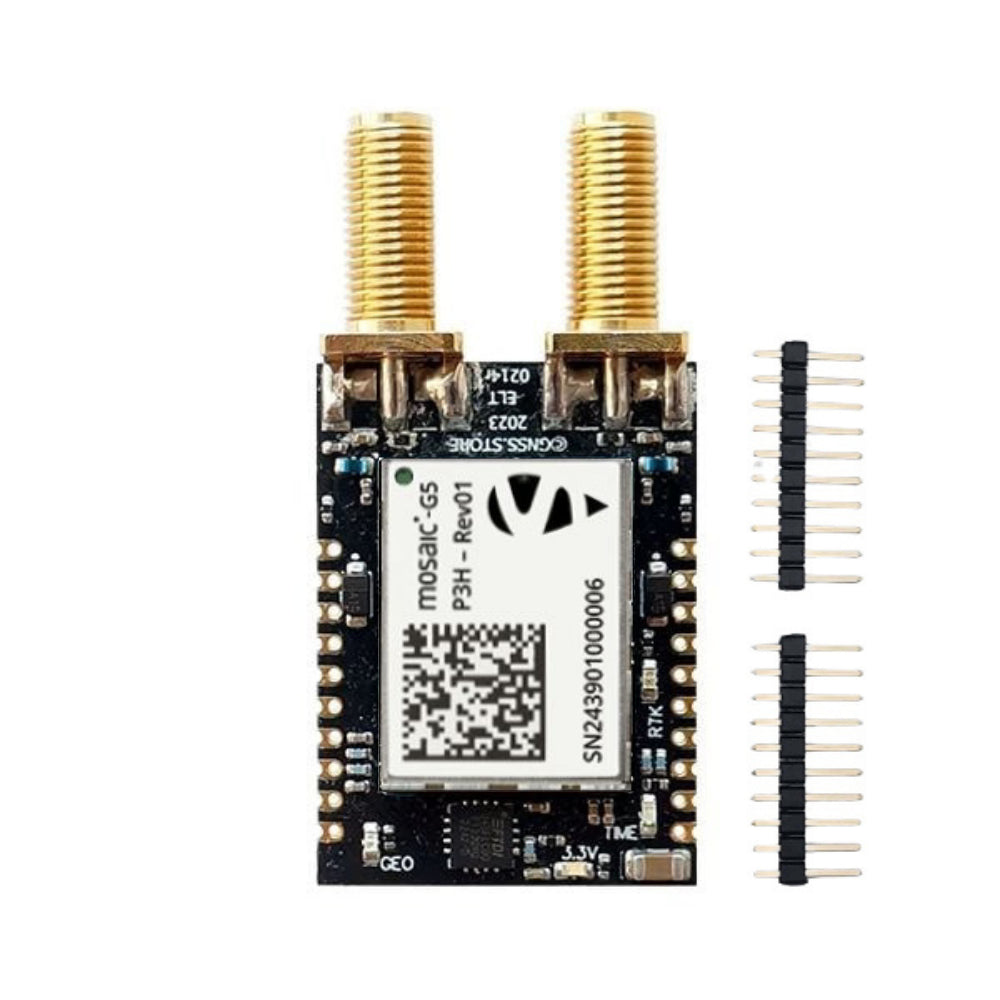

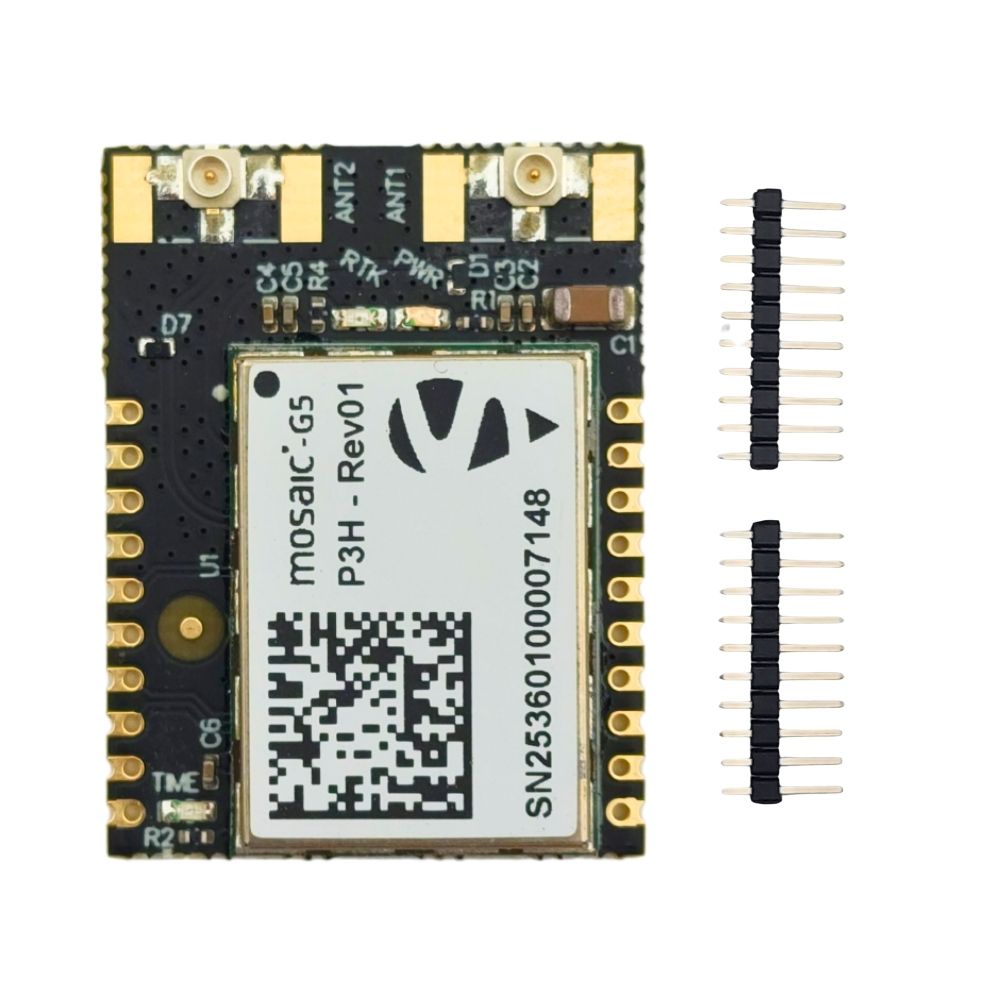

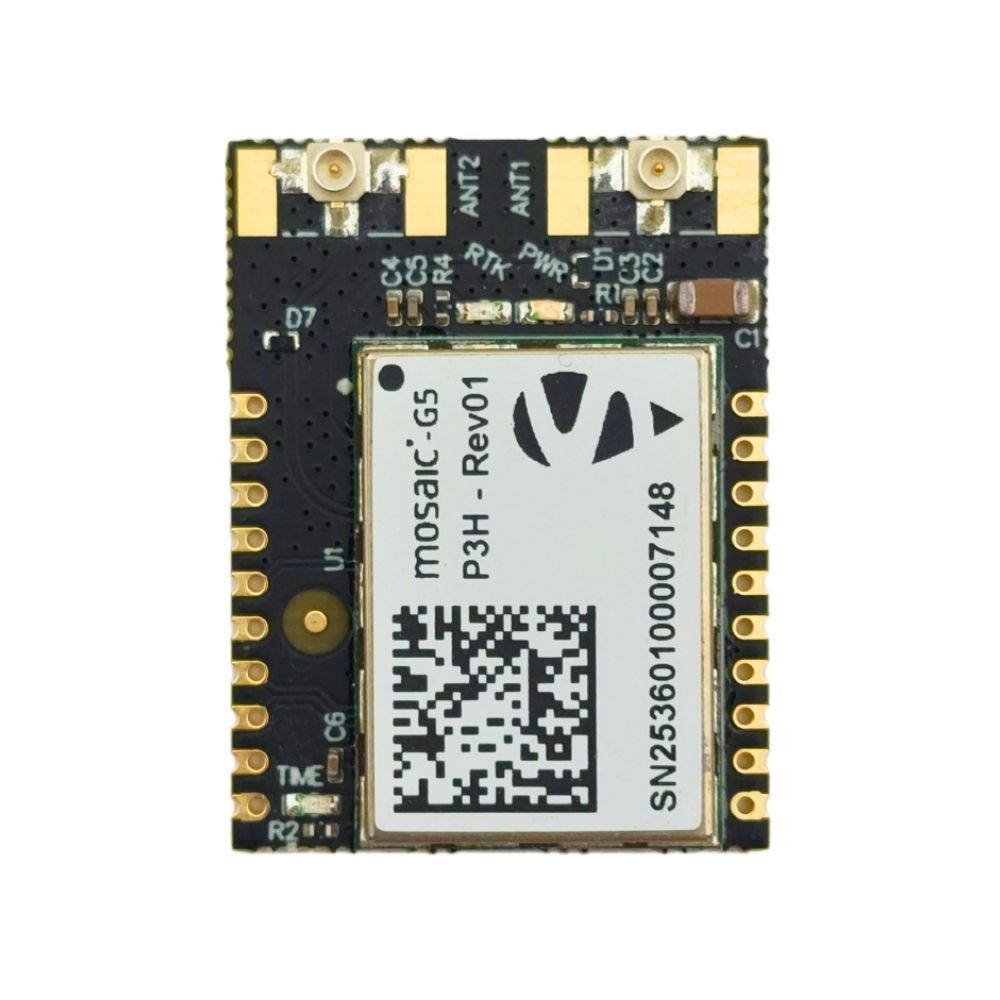

Two antenna inputs with SMA or IPEX connector
USB C connector
12-pin JST SH connector
2 UART (3.3V), one with hardware flow control interface
EVENTA, EVENTB external event inputs (3.3V)
Two PPS outputs (3.3V)
Green Time pulse LED, purple Power LED, red LED (GPIO1), orange LED (GPIO2)
RxTools Control and Analysis Software
Extensive visualization and evaluation features
Dimensions 26x39 mm
Weight: 10 gr.
Fully assembled, tested and ready to use

Produktdetails

789 hardware channels for simultaneous tracking of all visible supported satellite signals
5 constellations RTK engine (rover) and advanced RTK technology
AIM+: Industry leading Anti-jamming, Anti-spoofing Interference Monitoring and Mitigation
IONO+: Advanced protection against ionospheric disturbances to GNSS signals
APME+: a posteriori multipath estimator for code and phase multipath mitigation
LOCK+: superior tracking robustness under heavy mechanical shocks or vibration
RAIM+: Advanced Receiver Autonomous Integrity Monitoring
22.8 x 16.4 x 2.4 mm LGA package

Performance Specifications:

Frequency

GPS: L1C/A, L1C, L2C, L2P(Y), L5
GLONASS: LICA, L2CA, L2P, L3 CDMA
Beidou: B1I, B1C, B2a, B2I, B2b, B3I
Galileo: E1, E5a, E5b, E6
QZSS: L1C/A, L1C/B, L2C, L5, L6*

(*) L6 support and Galileo HAS support will be rolled out via software update

Single point positioning (RMS):

Horizontal: 1.2 m
Vertical: 1.9 m
Time Precision(xPPS out) - 1.4 ns
Event accuracy < 3 ns
Cold start < 35 s
Data Update Rate: 20 Hz

DGPS (RMS):

Horizontal: 0.4 m
Vertical: 0.7 m
Data Update Rate: 20 Hz
Differential Data - RTCM V2.X

RTK (RMS):

Horizontal: 0.6 cm + 0.5 ppm
Vertical: 1cm + 1 ppm
Initialization Time: 7 s
Data Update Rate: 20 Hz
Differential Data - RTCM V3.X (MSM included)
Data Format - NMEA-0183, v2.3, v3.03, v4.0, RINEX v2.x, v3.x, Septentrio Binary Format (SBF), RTCM V3.X (MSM included)

Physical Characteristics:

Packaging: 94 pin LGA
Dimension: 22.8 × 16.4 × 2.4 mm
Weight: 2.2g

Environmental Speciﬁcations:

Working temperature: -40 °C ~ +85 °C
Storage temperature: -55 °C ~ +85°C
Humidity: 5% ~ 95% No condensation
Vibration: IEC 60721-3-5 Profile 5M3, MIL-STD-810H 514.8 Category 4, MIL-STD-810H 516.8 Procedure 1

Communication Interfaces:

2 × UART (LVTTL, up to 4Mbps, one with hardware flow control)
1 × USB (2.0, HS up to 480Mbps)
2 x Event inputs
2 x GPIO
2 x PPS out

* Will be rolled out via software updates

Materialien & Pflege

mosaic-G5 P3H Mic Dual Channel RTK GNSS receiver board

Artikelnummer: ELT0774I

Barcode: 4751046557749

€329,99

Tax excluded

Mic Form Factor features:

Allows you to reuse expensive LGA component, if something goes wrong
Takes care of all the RF complexity so you only need to connect antenna directly to the module
Solder by hand mosaic G5 LGA module
Upgrade you existing design of NEO-F10N Micro, ZED-F9P Micro or Septentrio mosaic Micro module.

mosaic-G5 P3H dual channel all-constellation multi-frequency top-performance high precision RTK GNSS receiver.

mosaic-G5 P3H high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.

AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation.

APME+ a posteriori multipath estimator for code and phase multipath mitigation.

LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations

IONO+ provides advanced protection against ionospheric disturbances

RAIM+ receiver autonomous integrity monitoring

Please log in to download the datasheet.

Auf Lager

Form Factor: Surface mount

Surface mount Through hole

Connector: IPEX

IPEX SMA
