NEO-F9P-15B L1,L5 RTK GNSS with LIS3MDL and Helix antenna

NEO-F9P-15B Multi-band L1,L5 RTK GNSS with LIS3MDL magnetometer and Helix antenna, for your UDR systems, UAV systems, Robots, RC, FPV or other projects.

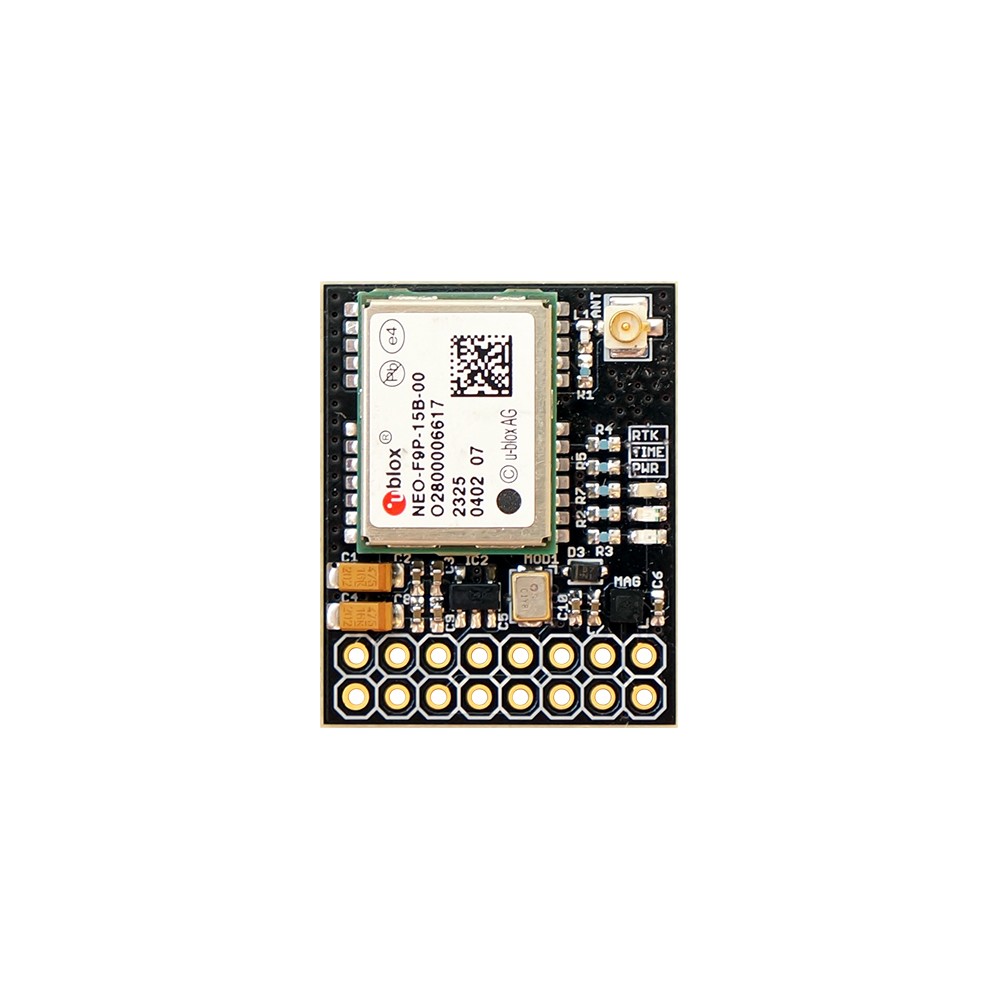

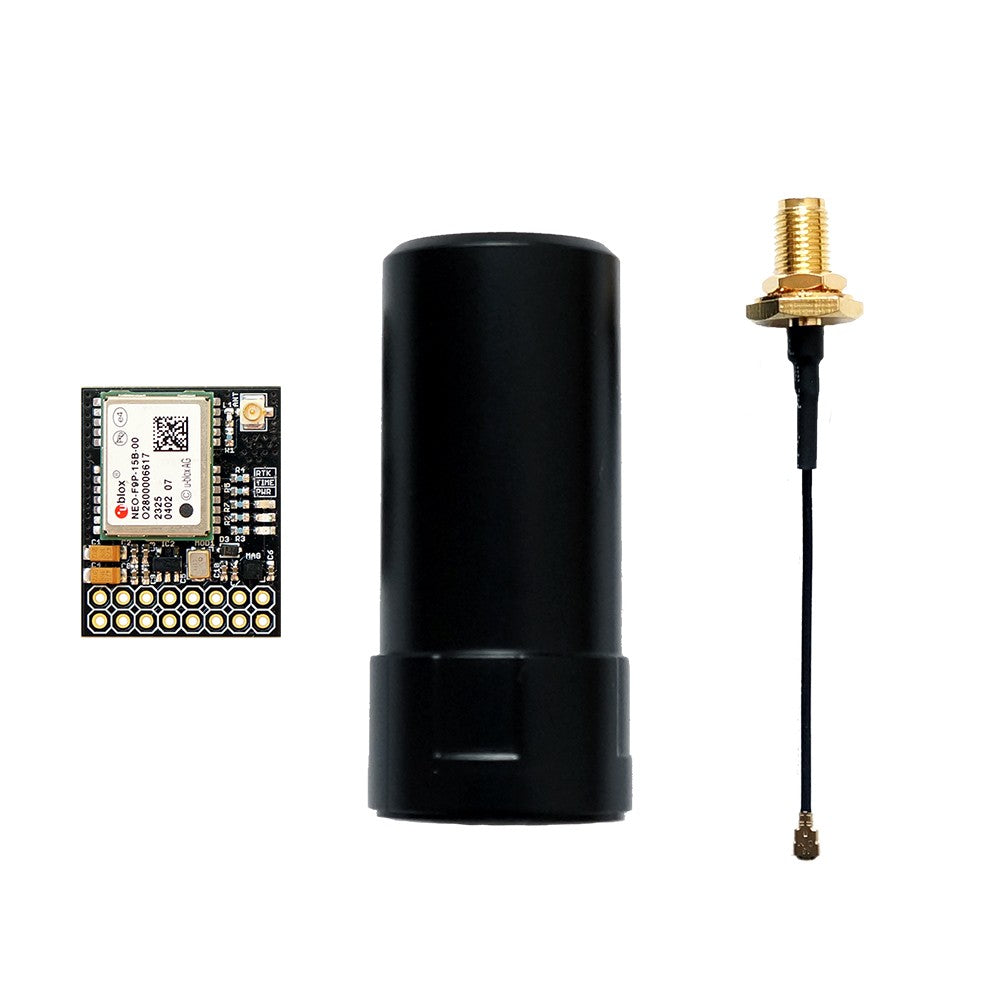

NEO-F9P High Precision GNSS breakout PCB with LIS3MDL magnetometer, IPEX antenna connector, UPEX to SMA cable and L1,L5 Helix antenna. Multi-band receiver delivers centimeter-level accuracy in seconds. The NEO-F9P positioning module features the new u-blox receiver platform, which provides multi-band GNSS to high volume industrial applications in a compact form factor. NEO-F9P is a multi-band GNSS module with integrated u-blox multi-band RTK technology for centimeter-level accuracy. The module enables precise navigation and automation of moving industrial machinery by means of a small, surface mounted module. NEO-F9P module use L1,L5 GNSS bands, see L2 OR L5? article for more details.

The NEO-F9P module is designed for easy integration and low design-in costs with minimal e-BOM. It is well-suited for mass market adoption, thanks to its small package size, light weight, and small power consumption. NEO-F9P ensures the security of positioning and navigation information by using secure interfaces and advanced jamming and spoofing detection technologies.

NEO-F9P offers support for a range of correction services allowing each application to optimize performance according to the application’s individual need.
