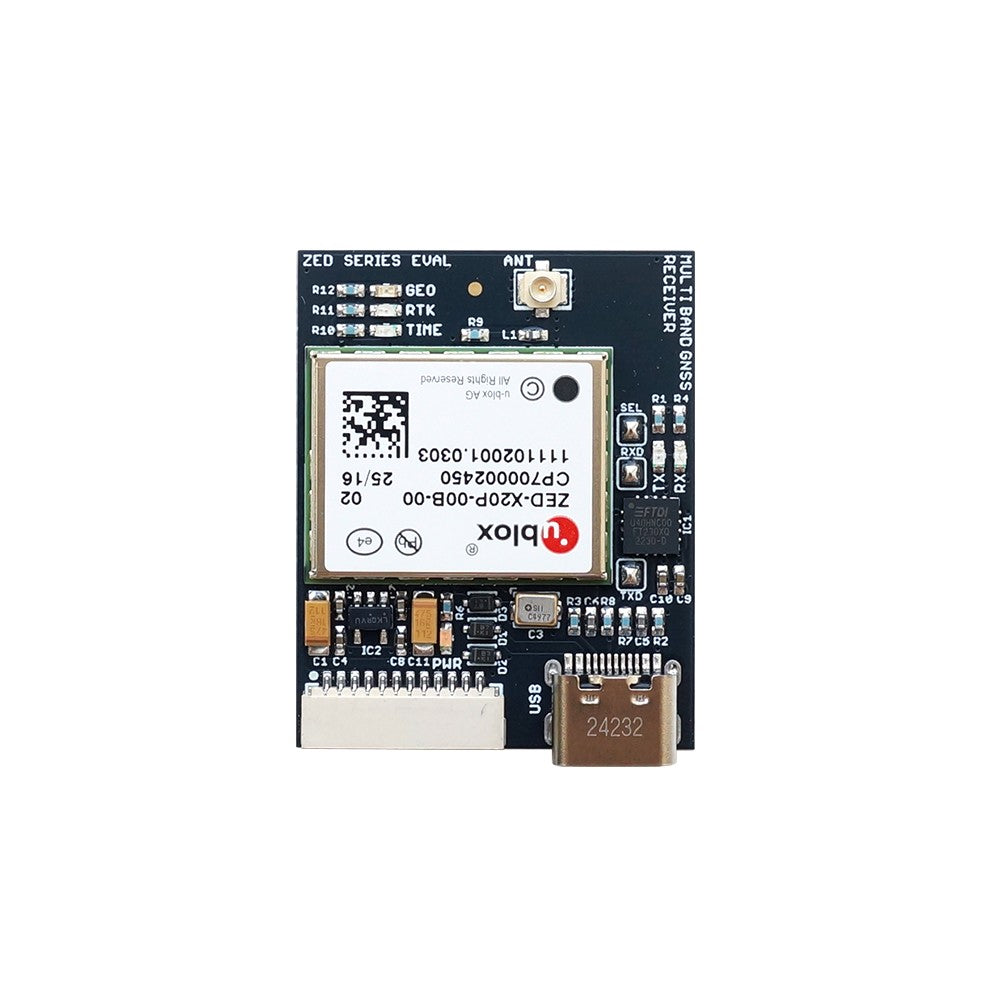

ZED-X20P all-band high precision GNSS module with UF.L and USB C

ZED-X20P Module Specifications

Receiver type:

672-channel u-blox X20 engine
GPS L1C/A, L2C, L5
GAL E1B/C, E5a, E6
BDS B1I, B1C, B2a, B3I
QZSS L1C/A, L1C/B*, L2C, L5, L6
NavIC L1*, L5
SBAS L1C/A

Nav. update rate:

RTK up to 25 Hz

Position accuracy:

RTK 0.01 m + 1 ppm CEP
PPP 0.10 m CEP

Convergence time:

RTK < 10 sec
PPP < 120 sec
Acquisition Cold starts 27 s.
Aided starts 2 s.
Reacquisition 2 s.

Sensitivity:

Tracking & Nav –167
Cold starts –148 dBm
Hot starts –157 dBm
Reacquisition –160 dBm
Assistance AssistNow Online
OMA SUPL & 3GPP compliant
TCXO Oscillator
Anti-jamming CW detection
Anti-spoofing Advanced anti-spoofing algorithms and OSNMA
Built-In RTC crystal
Flash Memory
Moving base For attitude sensing and heading applications
Active and passive antennas Supported

Downloads

ZED-X20P technical documentation

ZED-X20P all-band high precision GNSS module with UF.L and USB C

Name: ZED-X20P all-band high precision GNSS module with UF.L and USB C
Brand: ELTEHS
SKU: ELT0419
Price: 280.00 USD
Availability: InStock

SKU: ELT0419

EAN: 4751046554199

$280.00

Tax excluded

ZED-X20P all-band high precision GNSS module with UF.L and USB C, I2C, UART, SPI with UF.L antenna connectors. Base or Rover operation. Multi-band receiver delivers centimeter-level accuracy in seconds.

The ZED-X20P module integrates all-band GNSS with signal modernization and innovative positioning algorithms using Real-time Kinematics (RTK), PPP-RTK, and Precise Point Positioning* (PPP) technologies in a compact, energyefficient form factor. As the most reliable position sensor from the most trusted name in GNSS, ZED-X20P ensures unparalleled reliability and performance.

Please log in to download the datasheet.

Available in stock (242)
