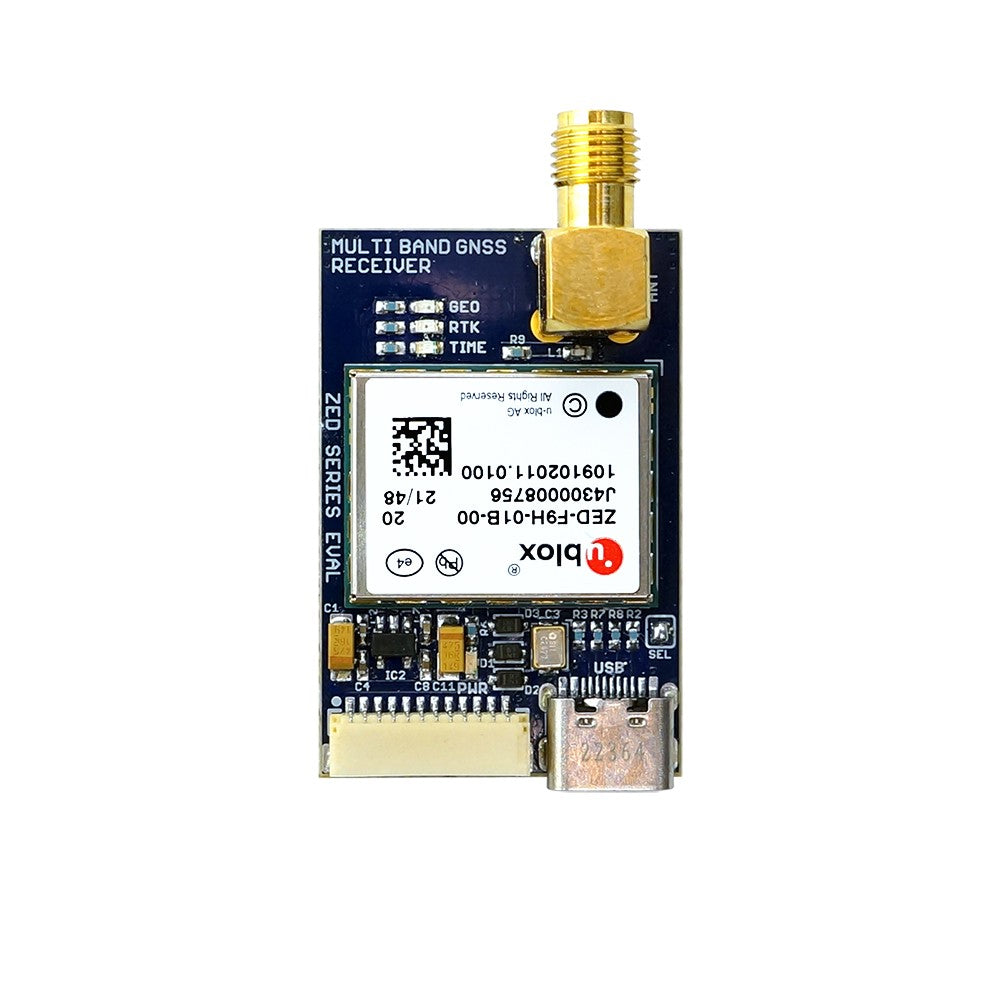

ZED-F9H High Precision GNSS receiver USB C module I2C, UART, SPI with SMA antenna connectors designed for heading applications. Designed for easy integration in your system or robots.
PIN to PIN compatible with ELT0098
The main purpose of the ZED-F9H module is to provide highly accurate attitude information for applications that require precise heading. To achieve this, the ZED-F9H module works in conjunction with a ZED-F9P module, which is installed on the same vehicle. In this setup, the ZED-F9P module not only provides the accurate GNSS position but also serves as a mobile base for the ZED-F9H module. The ZED-F9H module, in turn, is responsible for delivering the precise attitude information. This collaborative setup eliminates the need for pre-calibration, making production, integration, and operation simple and straightforward. Even when the vehicle is stationary, the ZED-F9H module continues to provide reliable heading information based on GNSS. This ensures that the precise heading information is always readily available, regardless of the vehicle's movement. Moreover, the ZED-F9H module is designed with cost-effectiveness in mind for heading applications. It features a minimal electronic bill of materials (e-BOM), which helps reduce the overall system cost. Additionally, its compact size, lightweight design, and low power consumption make it suitable for wide-scale adoption in the mass market.
Available in stock (88)
Couldn't load pickup availability
Product Features
Product Features
- On-board low noise 3.3V voltage regulator with noise 2nV/Hz
- USB type C, I2C (SDA, SCL), SPI and 2 UART (Tx, Rx) interfaces
- SMA edge antenna connectors
- u-center ublox Evaluation Software
- Extensive visualization and evaluation features
- Time pulse LED, GEO LED, RTK LED
- Backup supercapacitor
- Dimensions: 38x22 mm without SMA
- Weight: 9 gr.
- Fully assembled and ready to use

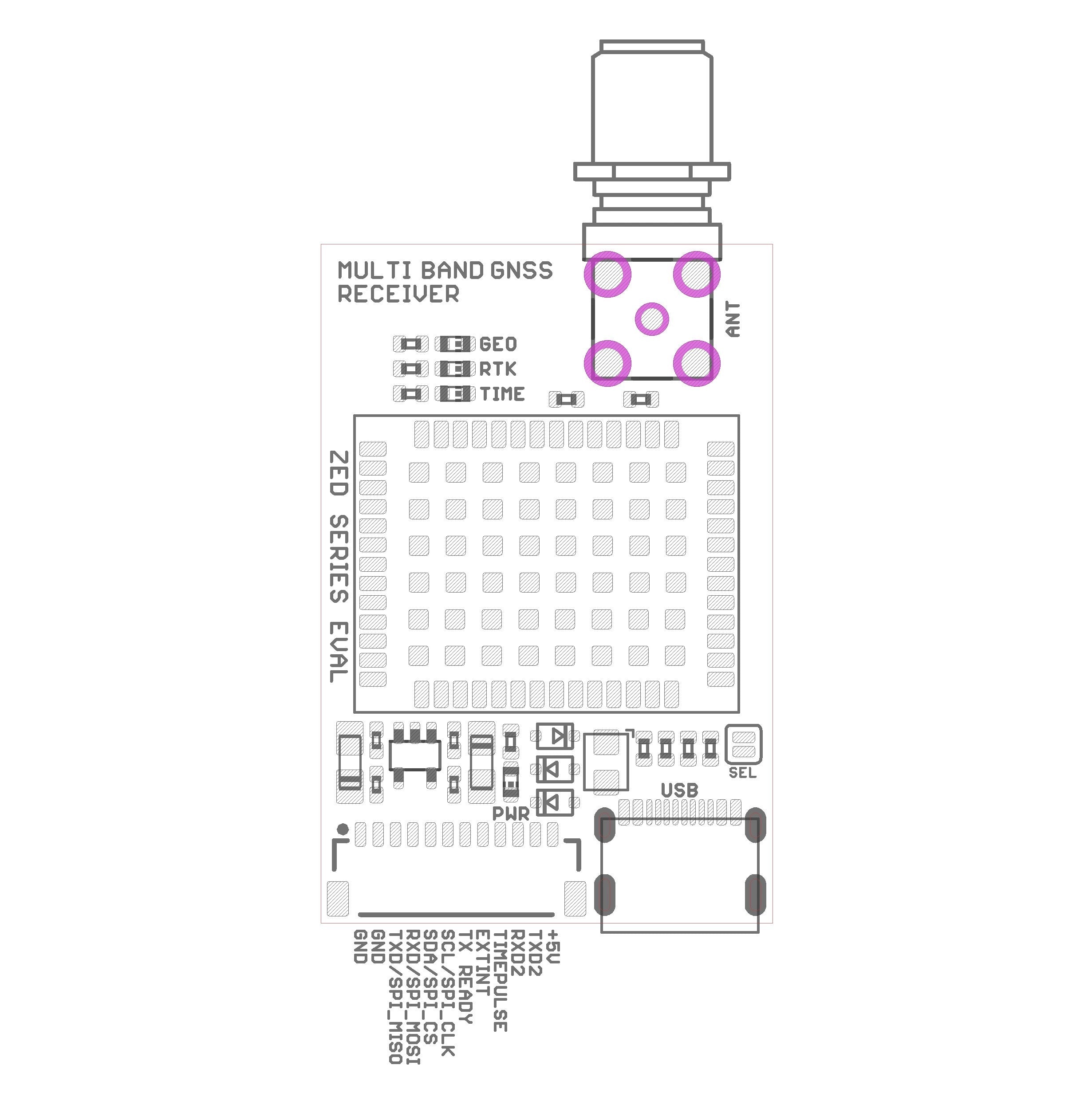

- 12 pin JST SH connectors
