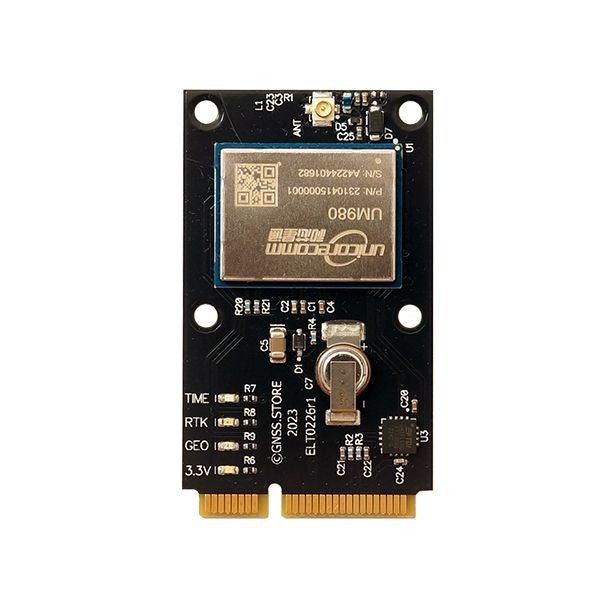

UM980 mPCIe socket RTK GNSS receiver
UM980 mPCIe socket RTK GNSS receiver
Tax excluded
UM980 All-constellation Multi-frequency High Precision RTK GNSS receiver.
UM980 is Unicore’s new-generation proprietary high-precision RTK positioning module based on the Nebulas IV SoC which integrates RF, baseband and high-precision algorithm. The module supports GPS L1C/A/L1C/L2P(Y)/L2C/L5, BDS B1I/B2I/B3I/B1C/B2a/B2b, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, QZSS L1C/A/L1C/L2C/L5, NavIC L5 and SBAS L1C/A. The built-in multi-frequency anti-jamming technology enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as city blocks and tree shades. Relying on the excellent performance, UM980 is well suited for high-precision navigation and positioning applications such as precision agriculture, surveying and mapping and so on.
Available in stock (29)
Couldn't load pickup availability
Product Features
Product Features
- Full size mini PCI express compatible
- Antenna input with IPEX connectors
- Only USB interface used
- Purple Power LED, green Time pulse LED, red PVT LED, orange RTK LED
- Extensive visualization and evaluation features
- Backup supercapacitor
- Dimensions 30x51 mm
- Weight: 10 gr.
- Fully assembled and ready to use
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| UM980 All-constellation Multi-frequency High Precision RTK GNSS receiver. UM980 is Unicore’s new-generation proprietary high-precision RTK positioning module based on the Nebulas IV SoC which integrates RF, baseband and high-precision algorithm. The module supports GPS L1C/A/L1C/L2P(Y)/L2C/L5, BDS B1I/B2I/B3I/B1C/B2a/B2b, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, QZSS L1C/A/L1C/L2C/L5, NavIC L5 and SBAS L1C/A. The built-in multi-frequency anti-jamming technology enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as city blocks and tree shades. Relying on the excellent performance, UM980 is well suited for high-precision navigation and positioning applications such as precision agriculture, surveying and mapping and so on.
| Regular price
$202.00
Sale price
$202.00
Regular price
| ELTEHS |
Choose your option
UM980 mPCIe socket RTK GNSS receiver
UM980 mPCIe socket RTK GNSS receiver
Tax excluded
Available in stock (29)
UM980 All-constellation Multi-frequency High Precision RTK GNSS receiver.
UM980 is Unicore’s new-generation proprietary high-precision RTK positioning module based on the Nebulas IV SoC which integrates RF, baseband and high-precision algorithm. The module supports GPS L1C/A/L1C/L2P(Y)/L2C/L5, BDS B1I/B2I/B3I/B1C/B2a/B2b, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, QZSS L1C/A/L1C/L2C/L5, NavIC L5 and SBAS L1C/A. The built-in multi-frequency anti-jamming technology enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as city blocks and tree shades. Relying on the excellent performance, UM980 is well suited for high-precision navigation and positioning applications such as precision agriculture, surveying and mapping and so on.
- Full size mini PCI express compatible
- Antenna input with IPEX connectors
- Only USB interface used
- Purple Power LED, green Time pulse LED, red PVT LED, orange RTK LED
- Extensive visualization and evaluation features
- Backup supercapacitor
- Dimensions 30x51 mm
- Weight: 10 gr.
- Fully assembled and ready to use
