NEO-M9N four GNSS receiver with 35mm Antenna and EMI protection
NEO-M9N four GNSS receiver with 35mm Antenna and EMI protection
Tax excluded

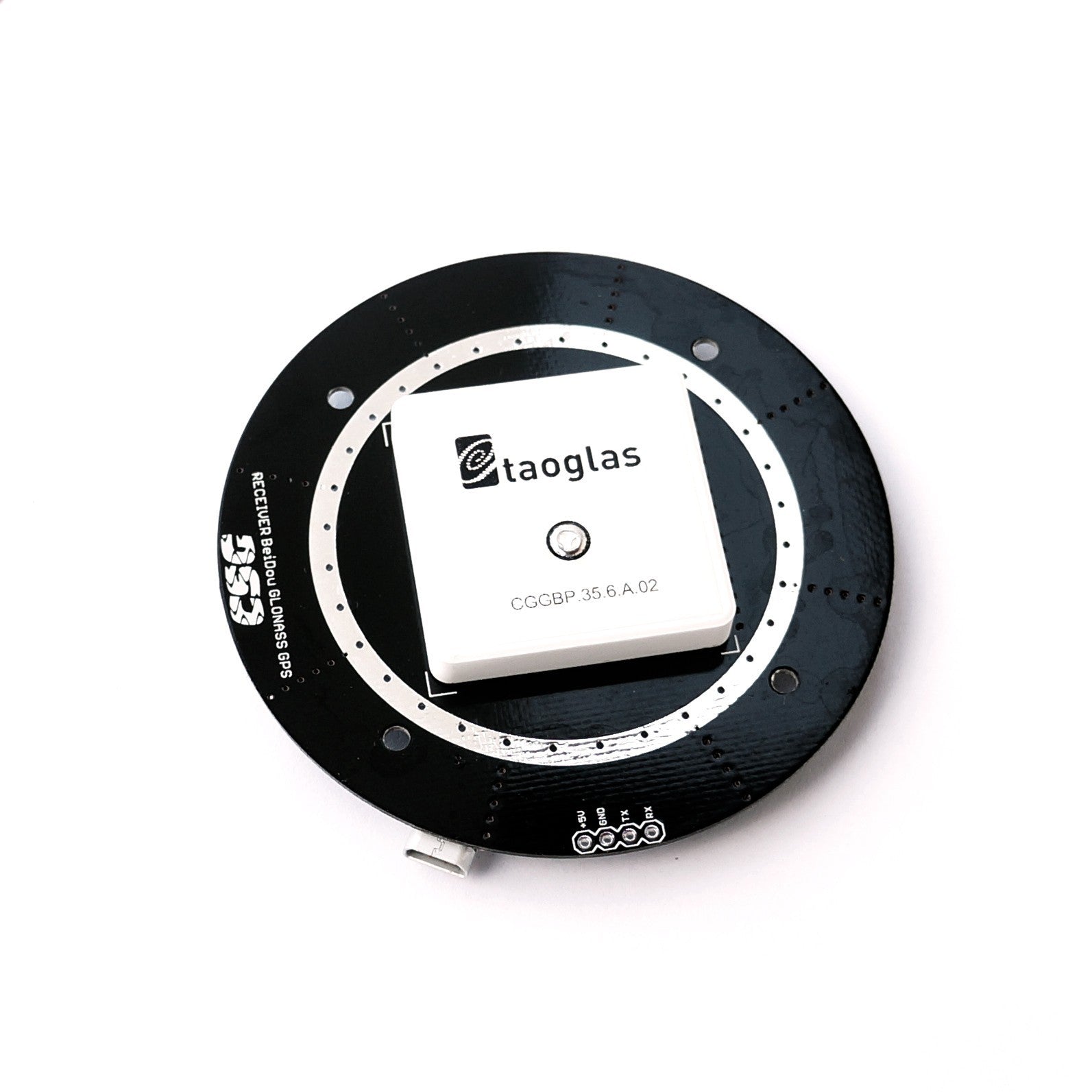

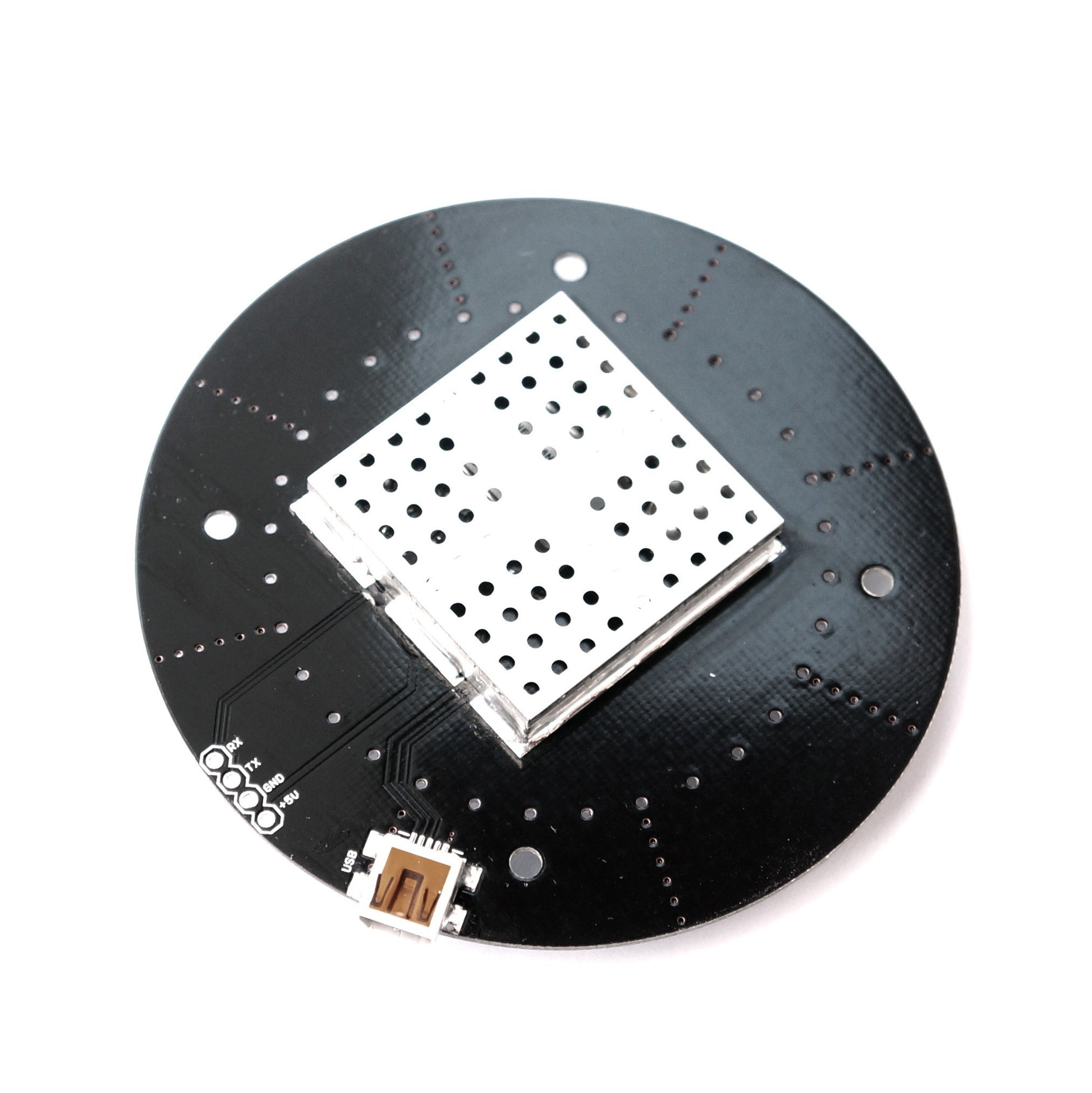

NEO-M9N four GNSS receiver with 35mm with EMI protection. Ready for unwanted signal interference or multipath blocking.
This board designed for large scale drone or groud robots. Board have EMI and RFI protection and will be used with large current robots. This boards ready for unwanted signal interference or multipath blocking. The NEO-M9N Evaluation board makes evaluating the high performance of the u-blox 9 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated.
The NEO-M9N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M9N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M9N
Available in stock (450)
Couldn't load pickup availability
Product Features
Product Features
- 92-channel u-blox M9 engine GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F BeiDou B1I, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGANv
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
- USB and UART (Tx, Rx)
- 35mm High Gain ceramic patch antenna
- u-center ublox Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services, AssistNow Autonomous (up to 6 days) OMA SUPL & 3GPP compliant
- Time pulse LED
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Supercapacitor for HOT module start
- Dimensions: Round 80 mm; hole distance 45x45mm
- Weight: 46 gr.
- EMI protection
- Ready for unwanted signal interference or multipath blocking
- Fully assembled and ready to use
- NEO-M9N Product Summary
- NEO-M9N Data Sheet
- NEO-M9N Integration Manual
- u-blox M9 SPG 4.00 firmware
NEO-M9N Module Specifications
