NEO-M8N InCase PIN series GNSS receiver board
NEO-M8N InCase PIN series GNSS receiver board
Tax excluded

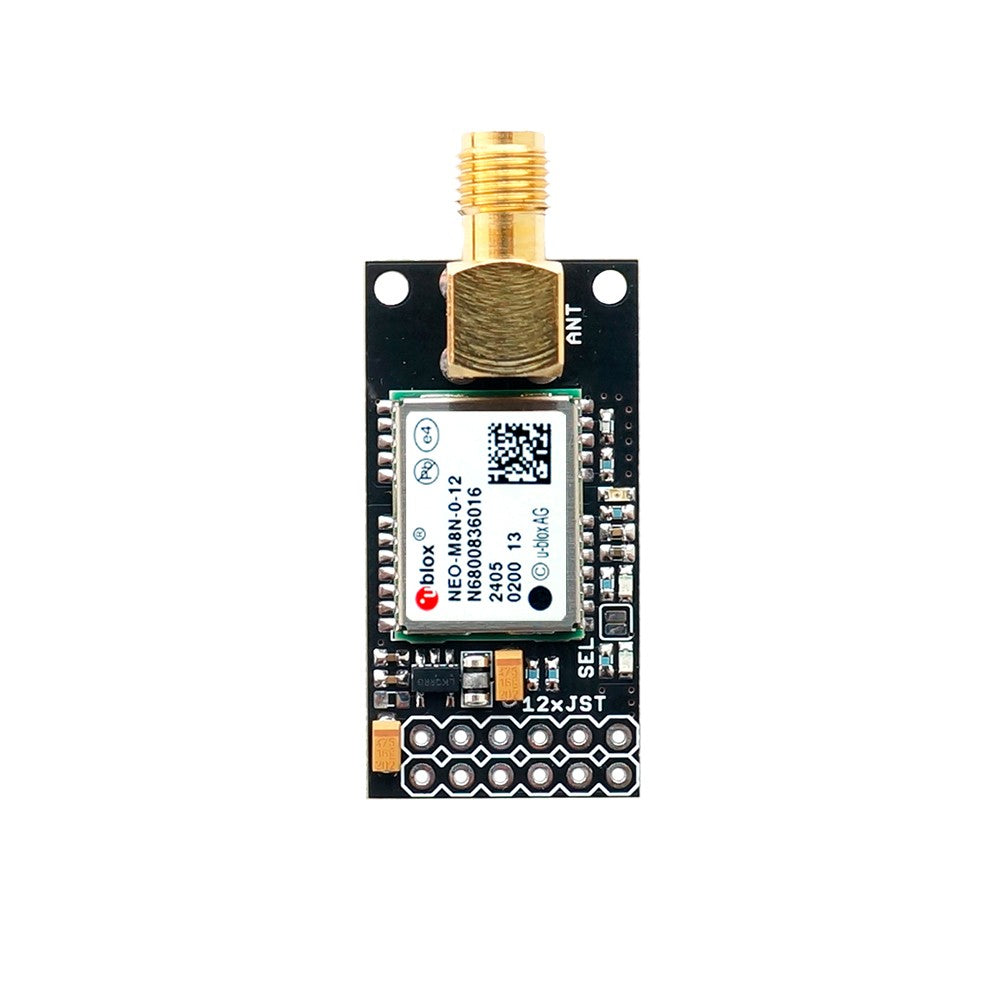

InCase PIN series NEO-M8N Reference Board with SMA antenna connectors for your UAV systems, Robots, RC, FPV or other projects. Designed for easy integration in your system.
The NEO-M8N Evaluation board makes evaluating the high performance of the u-blox 8 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M8N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M8N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M8N with SMA antenna connectors.
Available in stock (152)
Couldn't load pickup availability
Product Features
Product Features
- 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
- USB, I2C, SPI and UART (Tx, Rx) RAW data out available
- Support active antenna
- u-center Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED 1
- Time pulse LED 2
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Battery holder for HOT module start
- Dimensions: 36x19 mm
- Weight: 6.8 gr.
- Fully assembled and ready to use

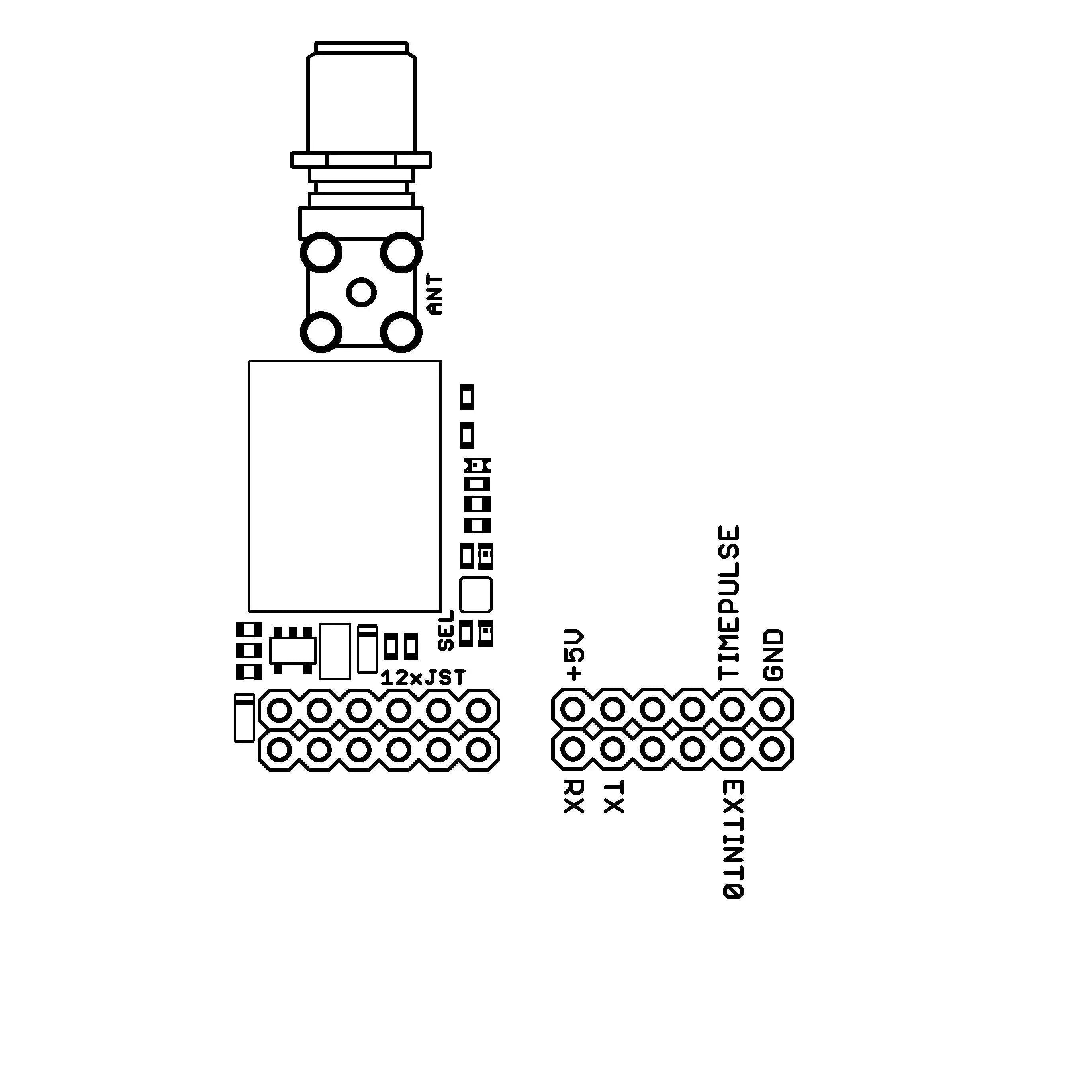

- 12 pin 6x2 row 2.54mm connector
- Output avail for use Time Pulse 1, Time Pulse 2, Interupt 0, Interuprt 1, all pins for SPI, UART, USB, I2C interface
NEO-M8N Module Specifications
NEO-M8N Module Specifications
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| InCase PIN series NEO-M8N Reference Board with SMA antenna connectors for your UAV systems, Robots, RC, FPV or other projects. Designed for easy integration in your system. The NEO-M8N Evaluation board makes evaluating the high performance of the u-blox 8 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M8N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M8N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M8N with SMA antenna connectors.
| Regular price
$82.00
Sale price
$82.00
Regular price
| ELTEHS |
Choose your option
NEO-M8N InCase PIN series GNSS receiver board
NEO-M8N InCase PIN series GNSS receiver board
Tax excluded
Available in stock (152)
InCase PIN series NEO-M8N Reference Board with SMA antenna connectors for your UAV systems, Robots, RC, FPV or other projects. Designed for easy integration in your system.
The NEO-M8N Evaluation board makes evaluating the high performance of the u-blox 8 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The NEO-M8N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-M8N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-M8N with SMA antenna connectors.
- 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
- USB, I2C, SPI and UART (Tx, Rx) RAW data out available
- Support active antenna
- u-center Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- Time pulse LED 1
- Time pulse LED 2
- Flash memory for firmware upgrade and settings inside in the module (can save setings without battery)
- Battery holder for HOT module start
- Dimensions: 36x19 mm
- Weight: 6.8 gr.
- Fully assembled and ready to use
- 12 pin 6x2 row 2.54mm connector
- Output avail for use Time Pulse 1, Time Pulse 2, Interupt 0, Interuprt 1, all pins for SPI, UART, USB, I2C interface
