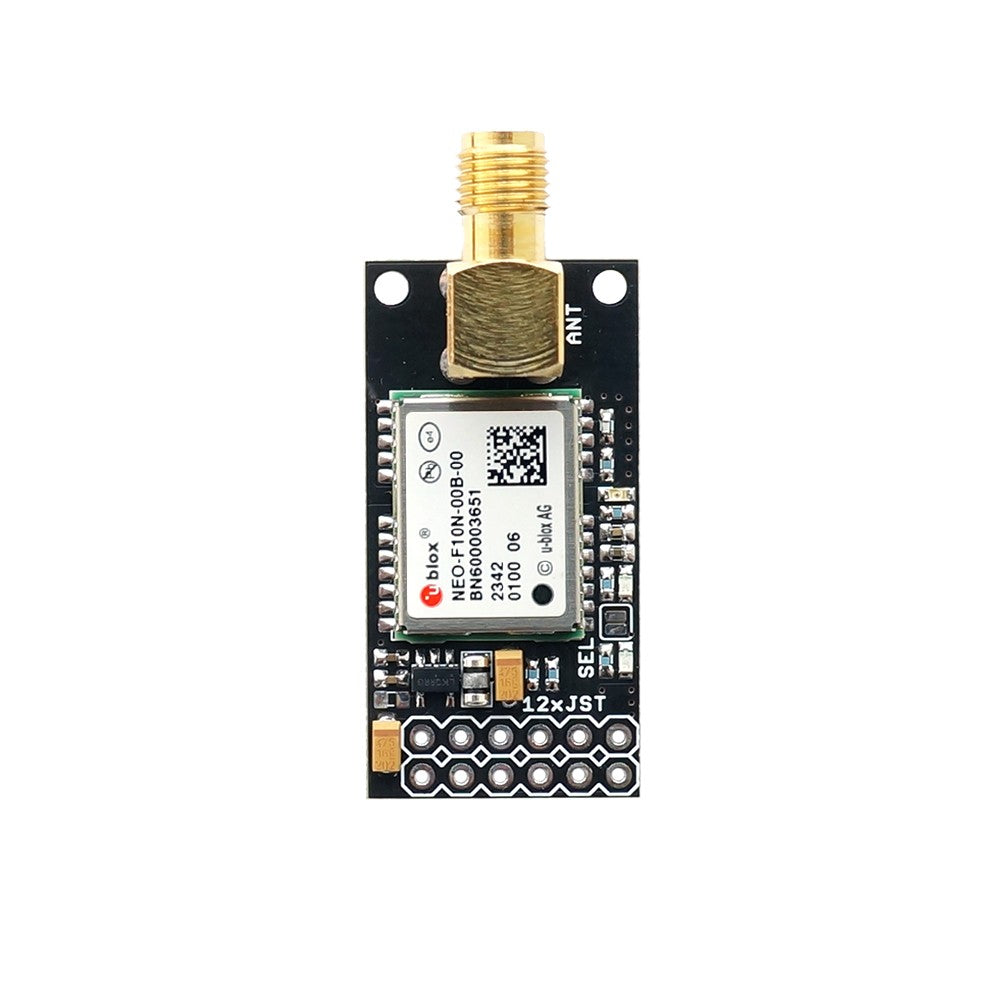

NEO-F10N L1/L5 dual-band GNSS InCase PIN series receiver board

InCase PIN series NEO-F10N Reference Board with SMA antenna connectors for your UAV systems, Robots, RC, FPV or other projects. Designed for easy integration in your system.

The NEO-F10N Evaluation board makes evaluating the high performance of the u-blox 10 positioning engine simple. The NEO-F10N Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the NEO-F10N breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the NEO-F10N with SMA antenna connectors.

The NEO-F10N is built on the u-blox F10 dual-band GNSS technology using L1/L5 GNSS bands, which provides solid meter-level position accuracy in urban areas. With its proprietary dual-band multipath mitigation technology, u-blox F10 uses the best signals from the L1/L5 bands to achieve a significantly better position accuracy in urban environments than with the L1 band only. Applications like vehicle tracking and micromobility benefit significantly. NEO-F10N offers a single antenna input. Two SAW filters in series with an LNA between them provide high robustness against RF interference from co-located cellular modems. The firmware is upgradeable and is highly configurable to support many different use cases.
