mosaic-X5 ultraLight GNSS Smart Antenna for precision and RTK positioning

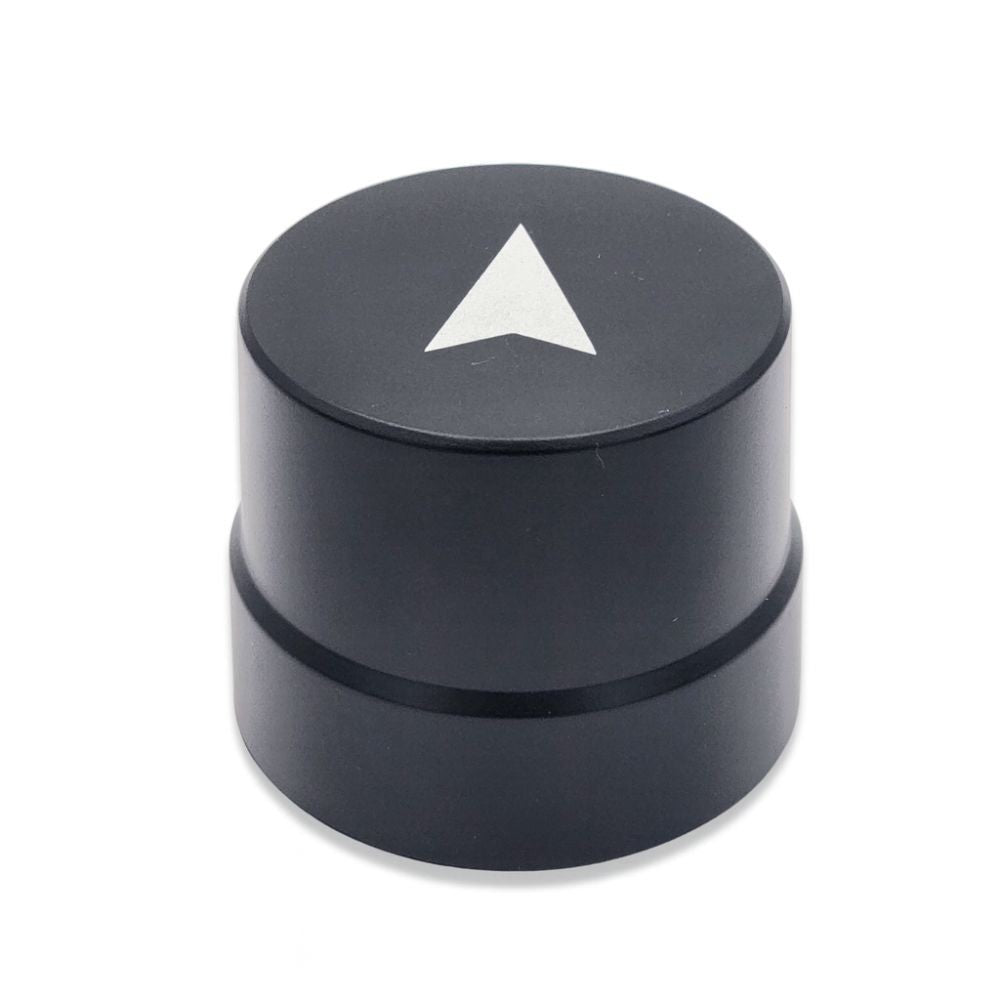

mosaic-X5 ultraLight RTK GNSS Smart Antenna is a next-generation, ultra-lightweight RTK GNSS solution built around the advanced Septentrio mosaic-X5 module, integrated with a high-precision RM3100 compass and a compact helical antenna. It is purpose-designed for weight-sensitive UAVs, robotics, and mobile applications where every gram matters.
With its advanced multi-band RF front-end, the mosaic-X5 ultraLight Smart Antenna is capable of simultaneously tracking all major GNSS constellations — ensuring robust positioning and centimeter-level accuracy when combined with correction data. In addition to RTK, the mosaic-X5 also supports PPP (Precise Point Positioning), delivering high-precision navigation even in areas without access to RTK base stations.
Engineered for flexibility, it supports concurrent reception of GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC, and SBAS, delivering a high-performance navigation solution even in challenging environments. Thanks to its exceptional sensitivity, fast acquisition times, and Septentrio’s AIM+ advanced anti-jamming and anti-spoofing technology, the mosaic-X5 ultraLight provides reliable, high-precision positioning where traditional receivers struggle.
Lightweight, powerful, and dependable — the mosaic-X5 ultraLight RTK GNSS Smart Antenna is the ideal choice for next-generation UAVs, autonomous systems, and precision applications that demand uncompromised performance in a compact form factor.
Device Features:
- Based on Septentrio mosaic-X5 multi-band GNSS module with integrated RF and base band
- Supports RTK positioning across all major constellations and frequencies
- Advanced multi-frequency RTK engine for robust centimeter-level accuracy worldwide
- AIM+ technology providing interference suppression, anti-jamming, and anti-spoofing
- Independent tracking of concurrent signals with built-in anti-jamming and interference mitigation
- Low Noise Amplifier (LNA) integrated with the compact helical antenna
- High Gain: 28 dB typ. from antenna
- Axial ratio: 3 dB max.
- Tight Phase Center Variation (PCV)
- Power supply: 5 VDC
- Integrated 3-axis digital compass sensor RM3100 for accurate heading and orientation
Physical Characteristics:

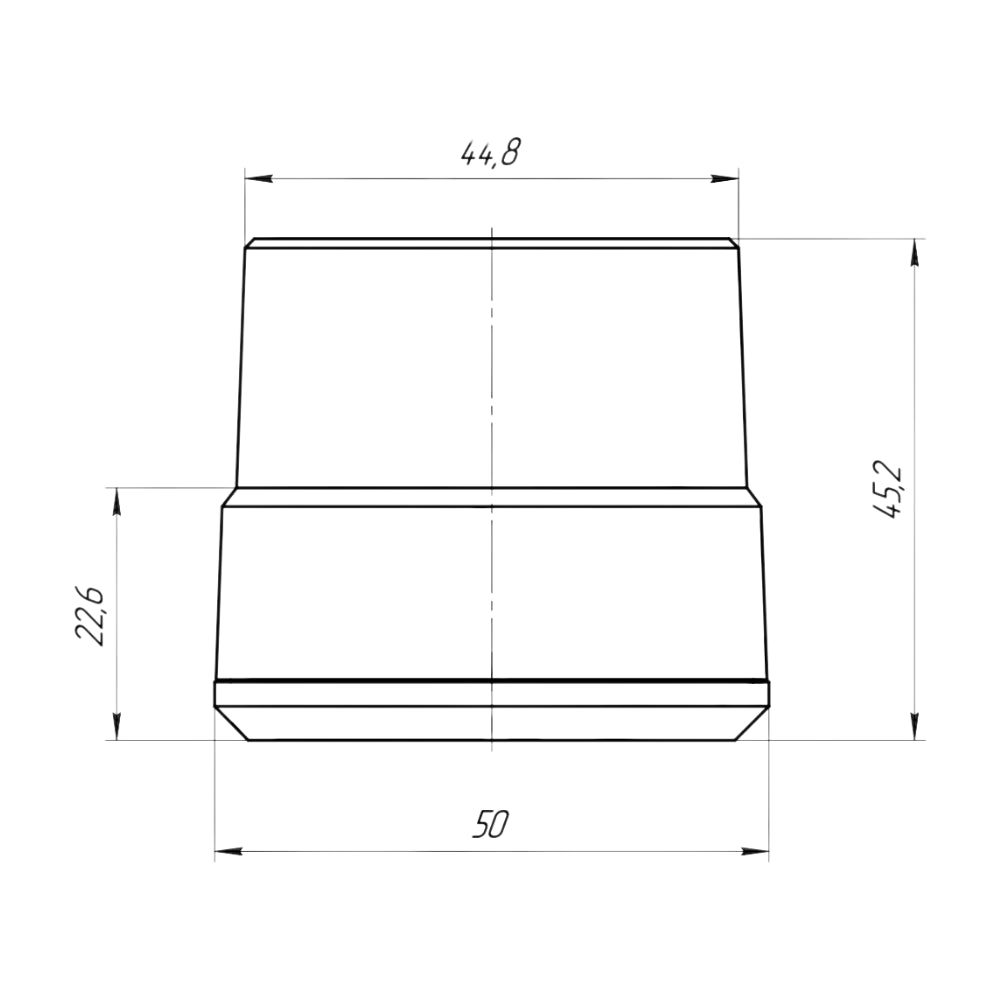

- Dimension: Ø50x41 mm
- Weight: 34 gr.
- IP Rating: IP55
- Operating Temperature: -25 °C ~ +85 °C

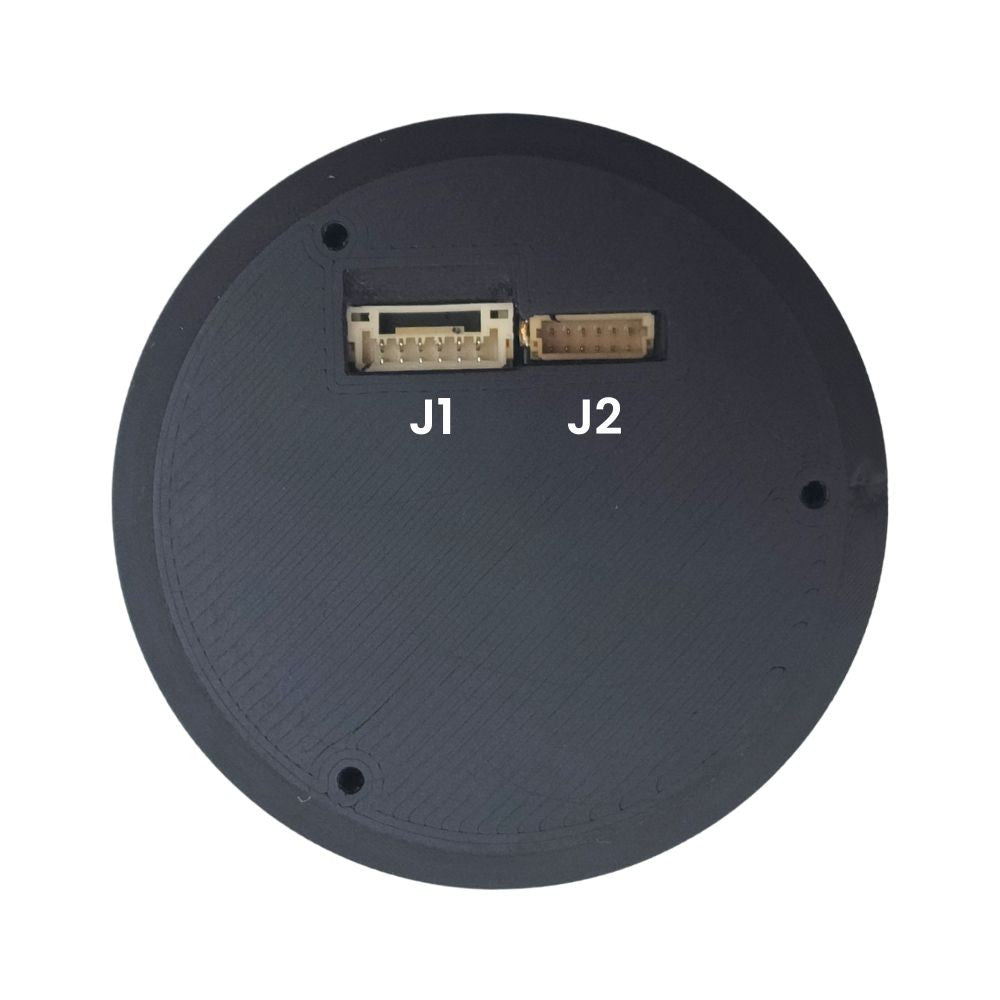

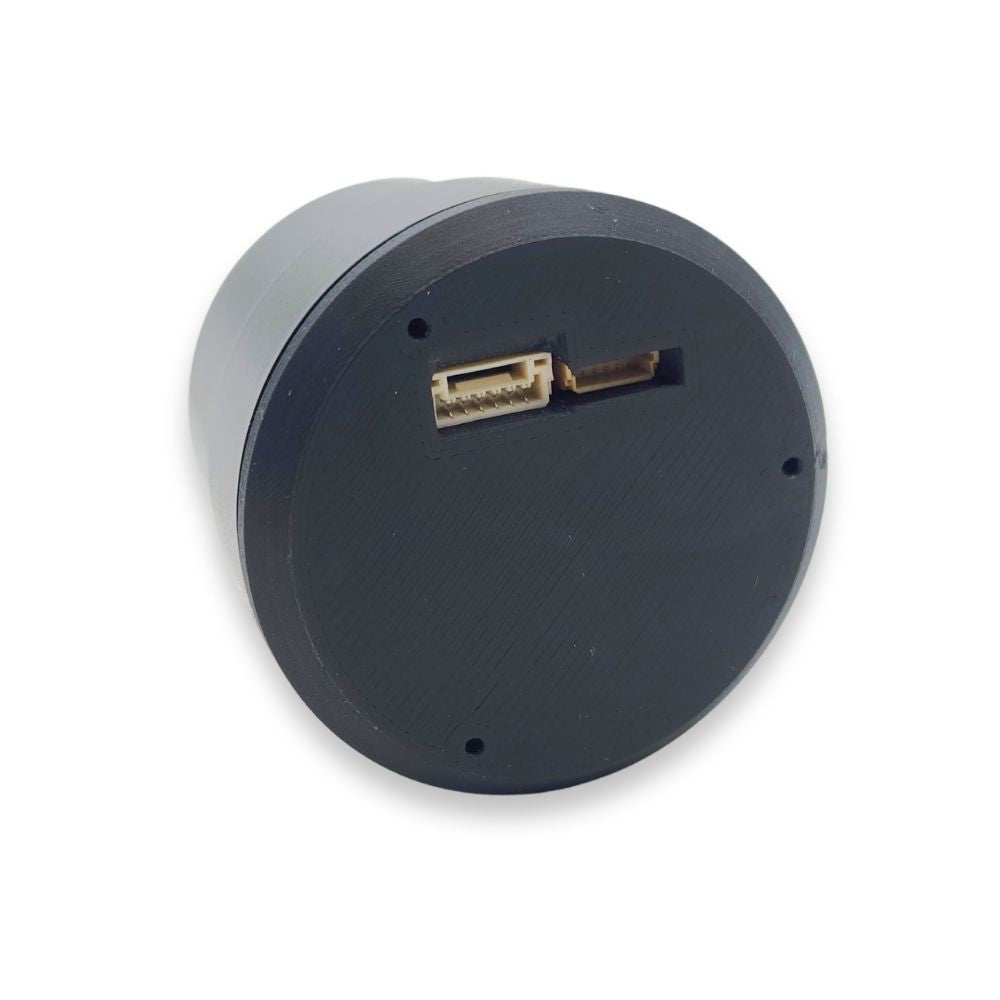

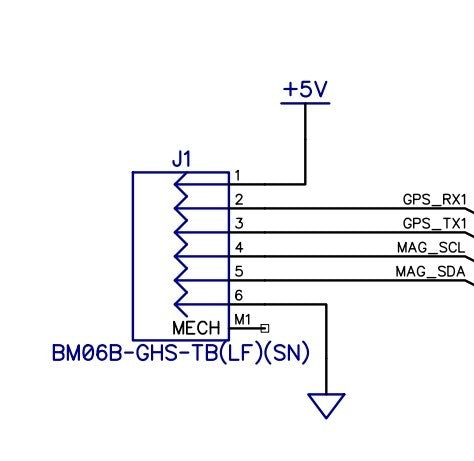

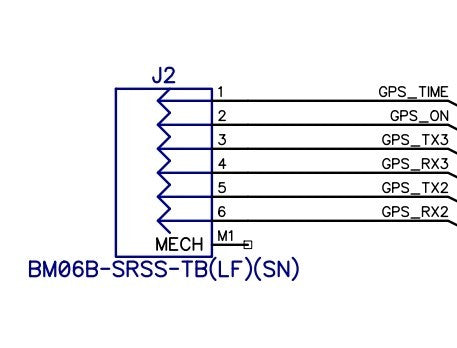

- Connector type: JST SH 6 pin, JST GH 6 pin

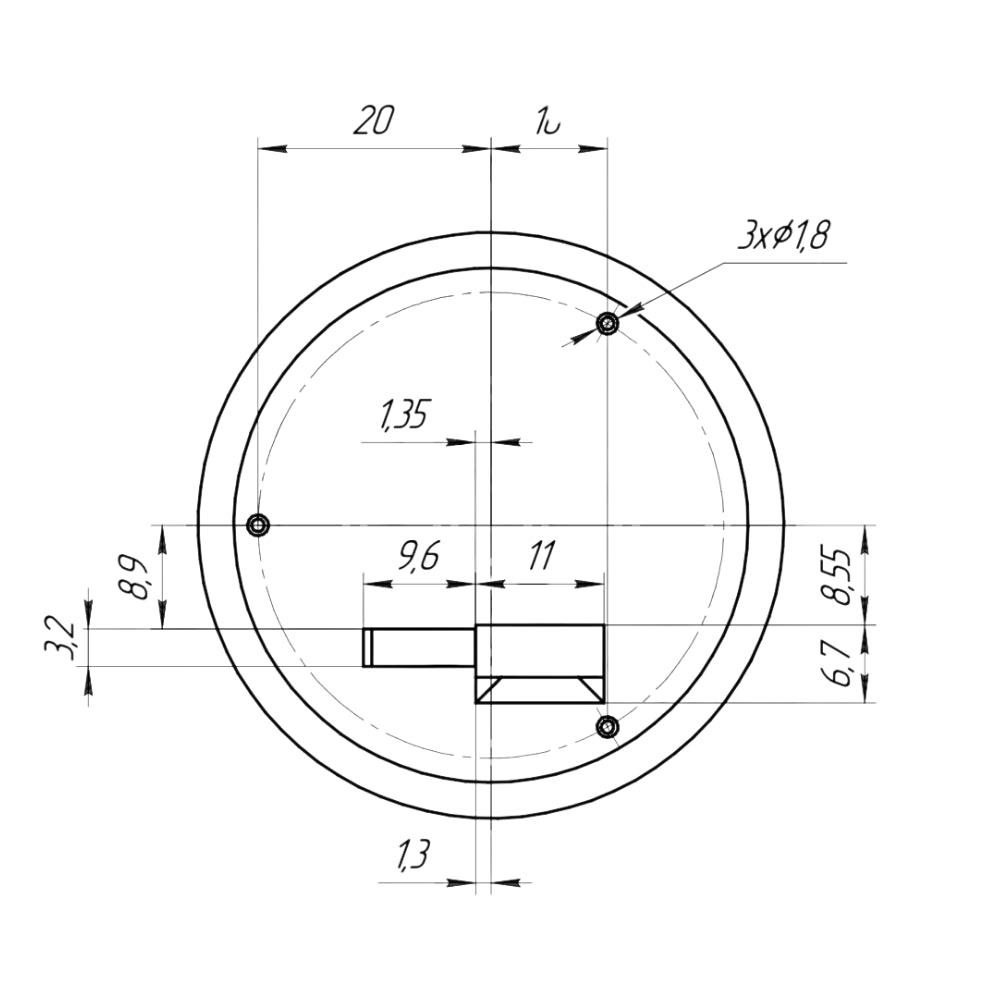

- Mounting Options: Waterproof 3M double-sided tape, Screw mount
- RoHS & Reach Compliant
- Fully assembled, tested, sealed, and ready for use

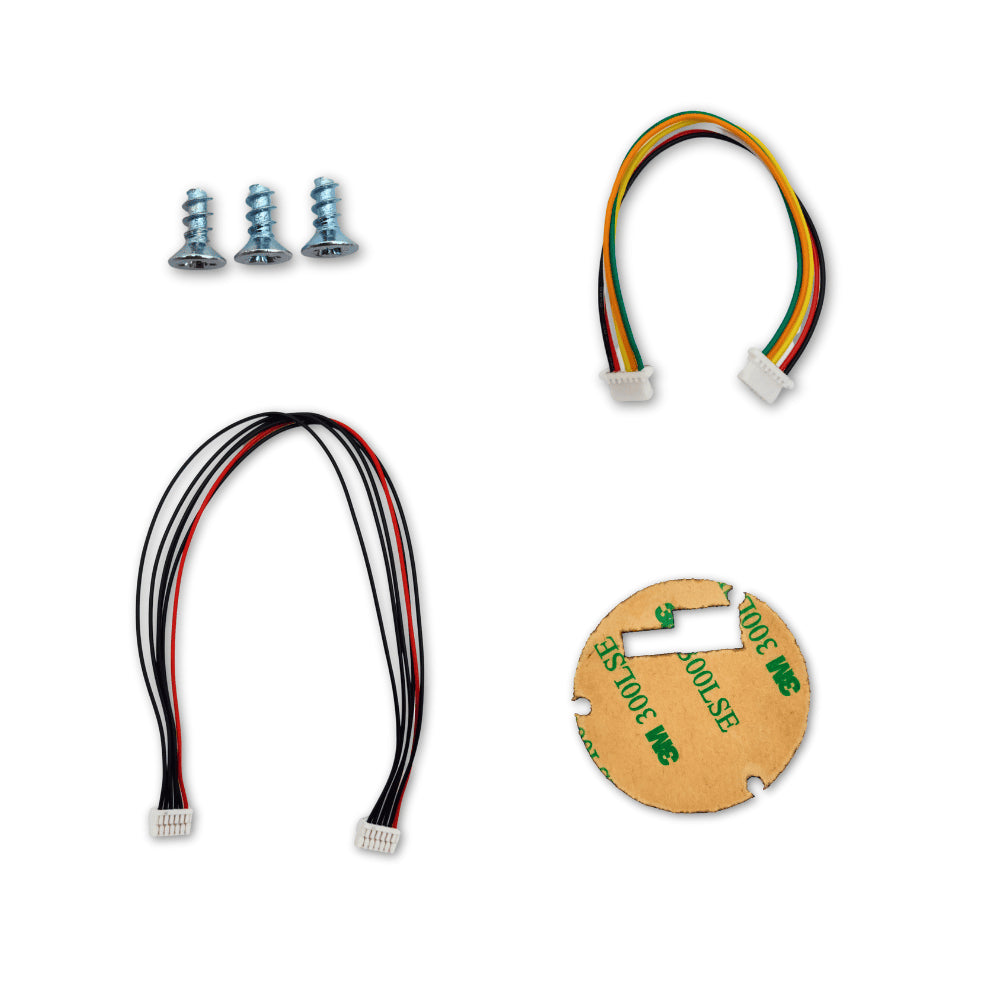

Kit included:
- Smart antenna – 1 piece
- Cable JST GH 1.25 6 pin to 6 pin 200mm – 1 piece
- Cable JST SH 1.0 6 pin to 6 pin 100 mm – 1 piece
- Waterproof 3M double-sided tape – 1 piece
- Screws 2.5x6 – 3 pieces
