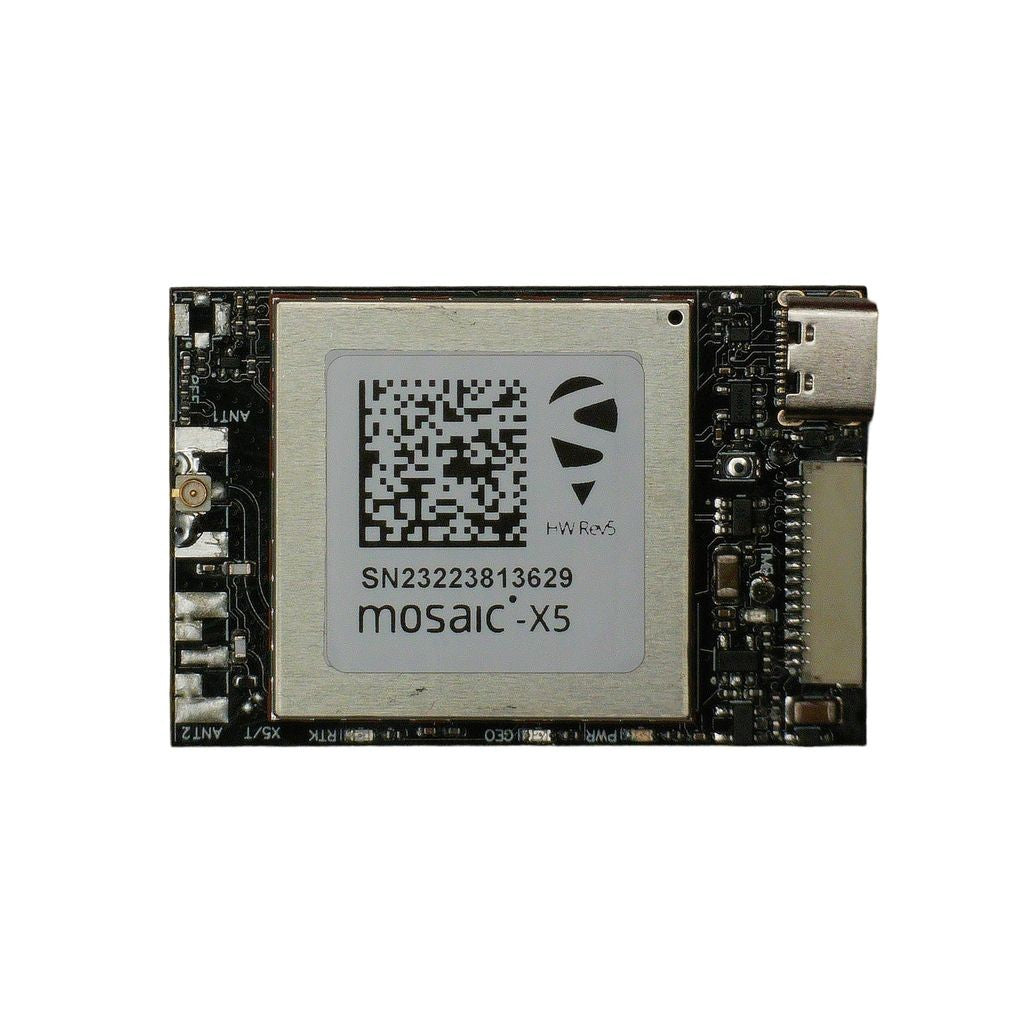

mosaic-X5 RTK InCase PIN GNSS receiver board with JST and USB C
mosaic-X5 RTK InCase PIN GNSS receiver board with JST and USB C
Tax excluded
mosaic-X5 all-constellation multi-frequency top-performance high precision RTK GNSS receiver.
mosaic-X5 high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.
AIM+: Advanced Interference Monitoring and Mitigation, offers built-in protection against intentional and unintentional jamming and spoofing using a sophisticated system of sampling and mitigation mechanisms. In robotic devices neighboring electronics can produce RF radiation which interferes with GNSS signals. AIM+ offers protection against such interference resulting in faster set-up time and robust continuous operation.
Advanced Receiver Autonomous Integrity Monitoring (RAIM+) comprises fault detection mechanisms of the receiver at all the levels including the generation of measurements, quality control and navigation algorithms. Detected faulty measurements, which are typically caused by high multipath or active ionosphere, are removed from the solution.
Activity in the ionosphere is a problem for GNSS signals, from loss of RTK fix to total loss of signal lock. Having honed our skills, supporting applications in the most iono-active areas on Earth, the result is IONO+: the most advanced protection against ionospheric disturbances to GNSS signals on any receiver.
Available in stock (994)
Couldn't load pickup availability
Product Features
Product Features

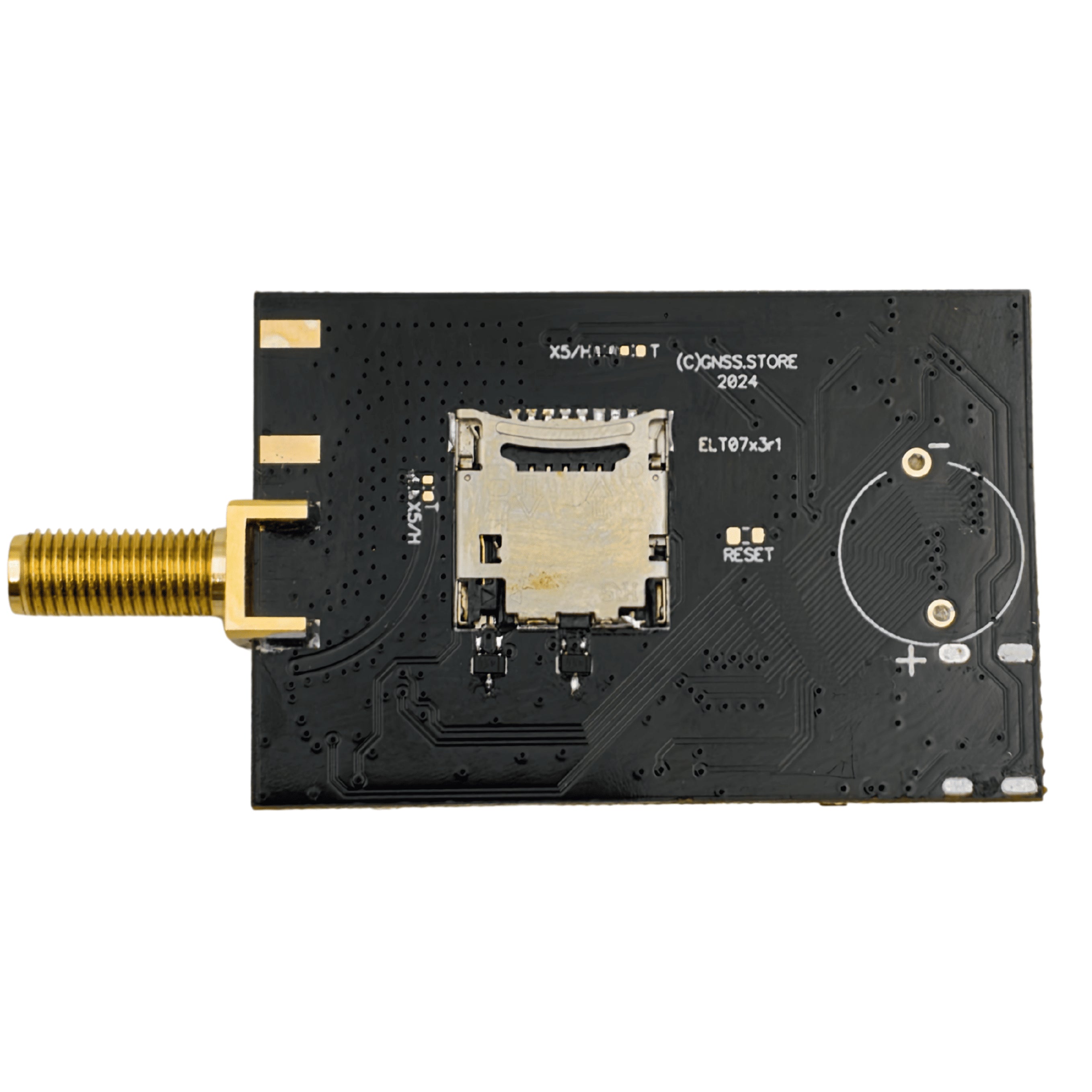

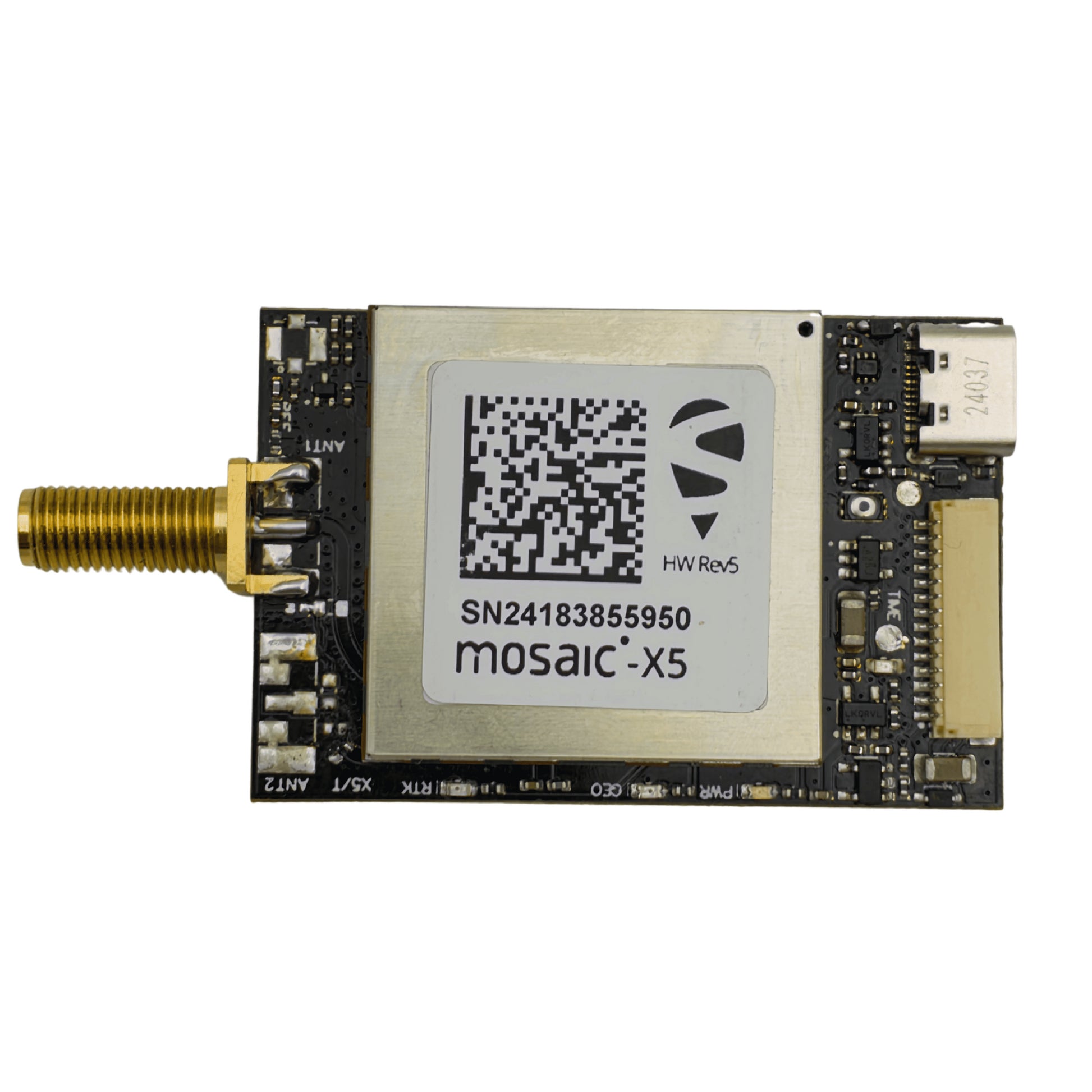

- Antenna input with SMA or IPEX connector
- USB C connector

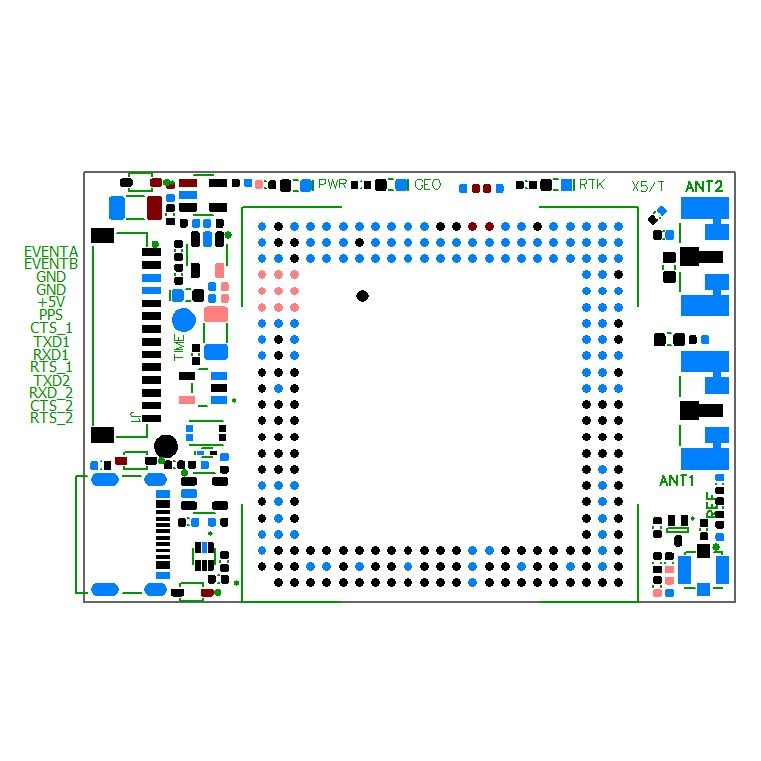

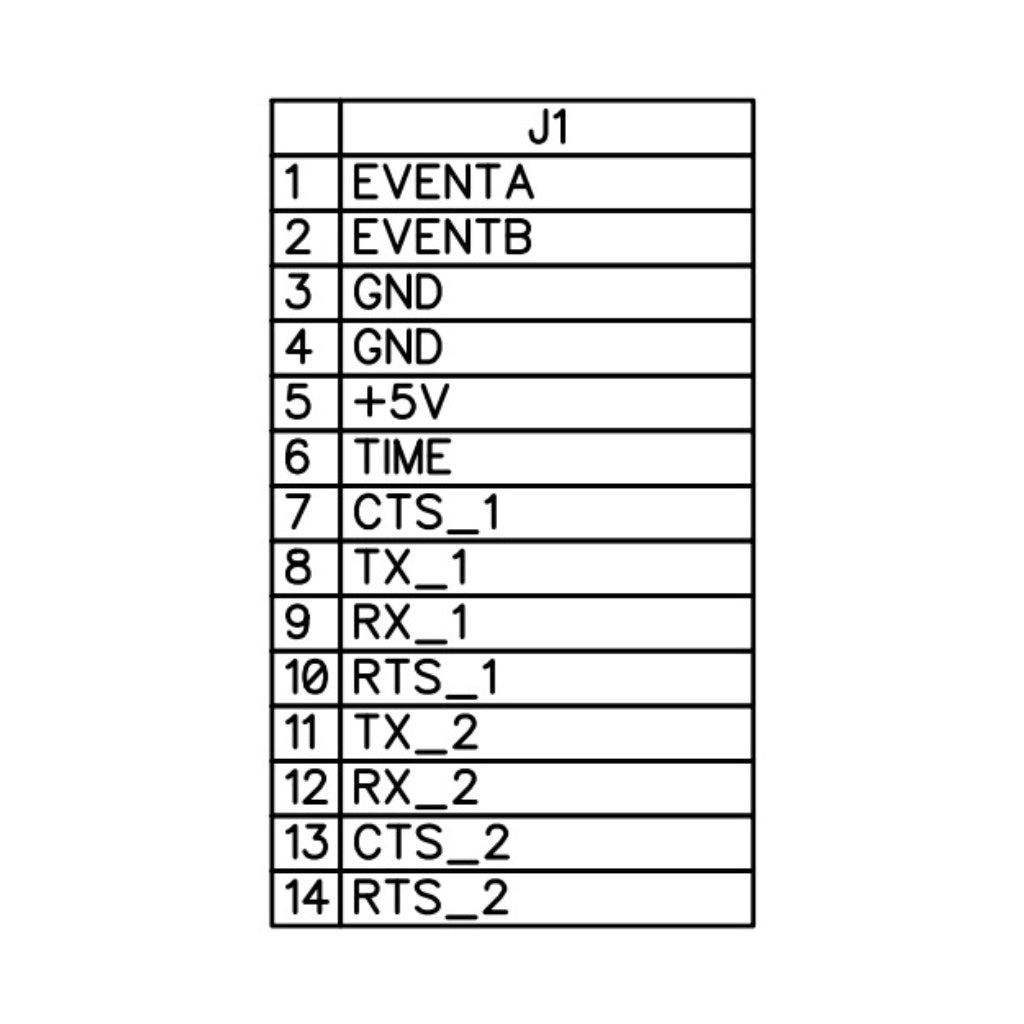

- 2 x UART with hardware flow control interface on JST connector
- EVENTA, EVENTB external event inputs on JST connector
- PPS output on JST connector

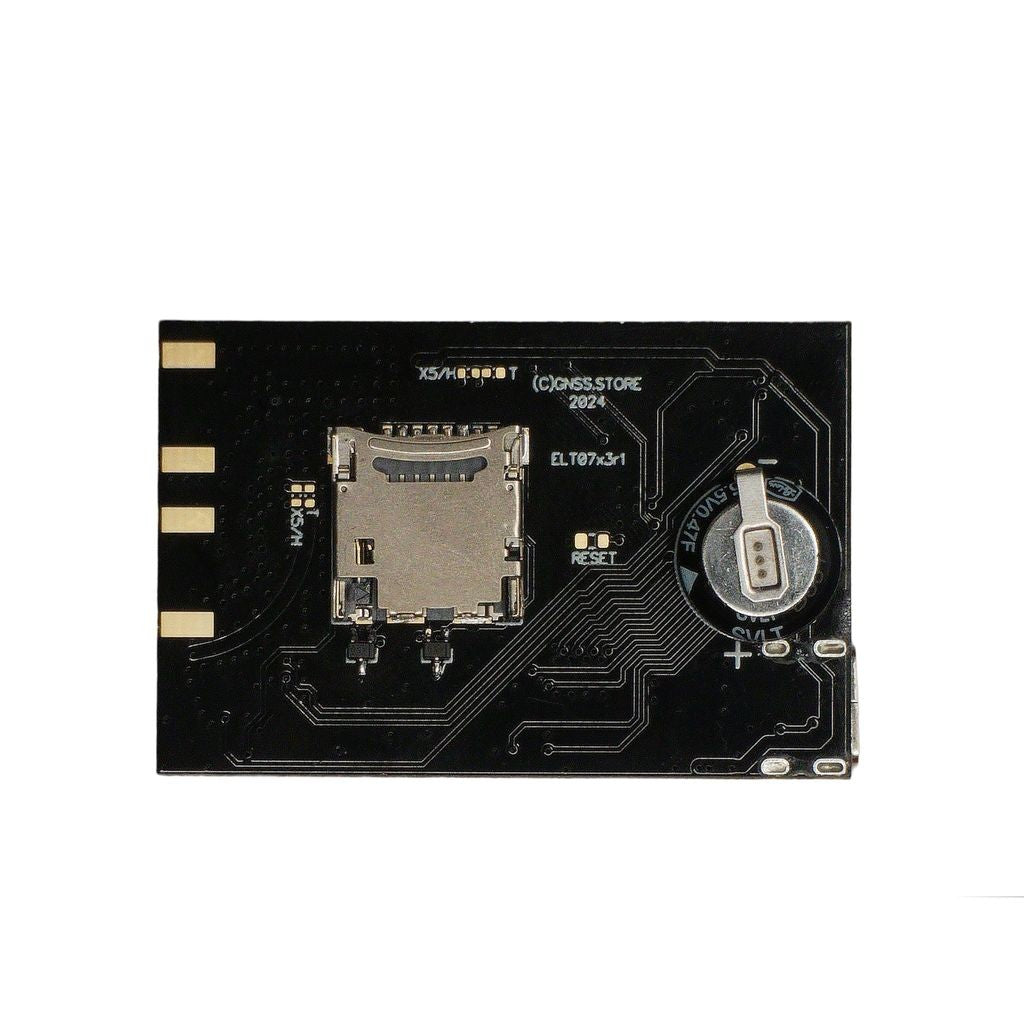

- SD card for data logging. Up to 32GB memory cards supported.
- Time pulse LED, Power LED, RTK LED, Geofence LED
- RxTools Control and Analysis Software
- Extensive visualization and evaluation features
- Dimensions 34x52 mm
- Weight: 15 gr.
- Fully assembled and ready to use
