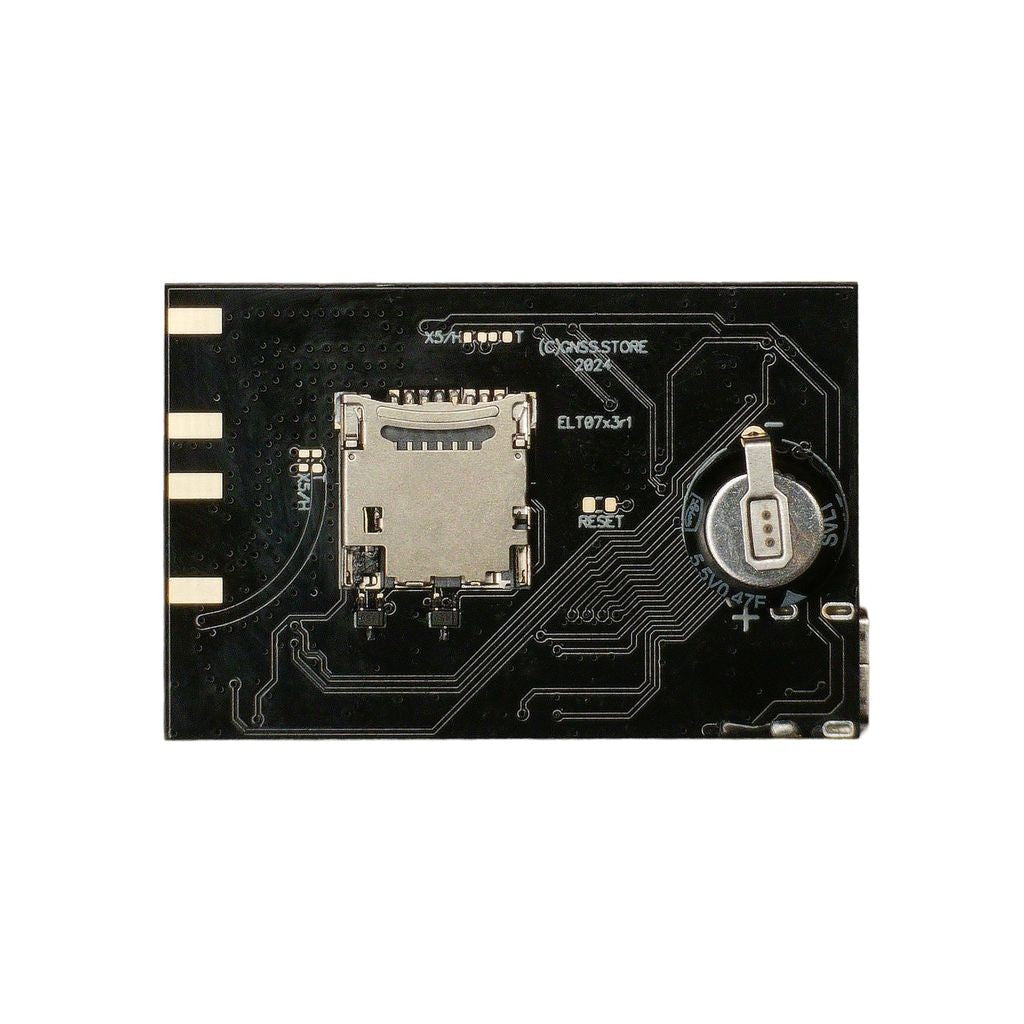

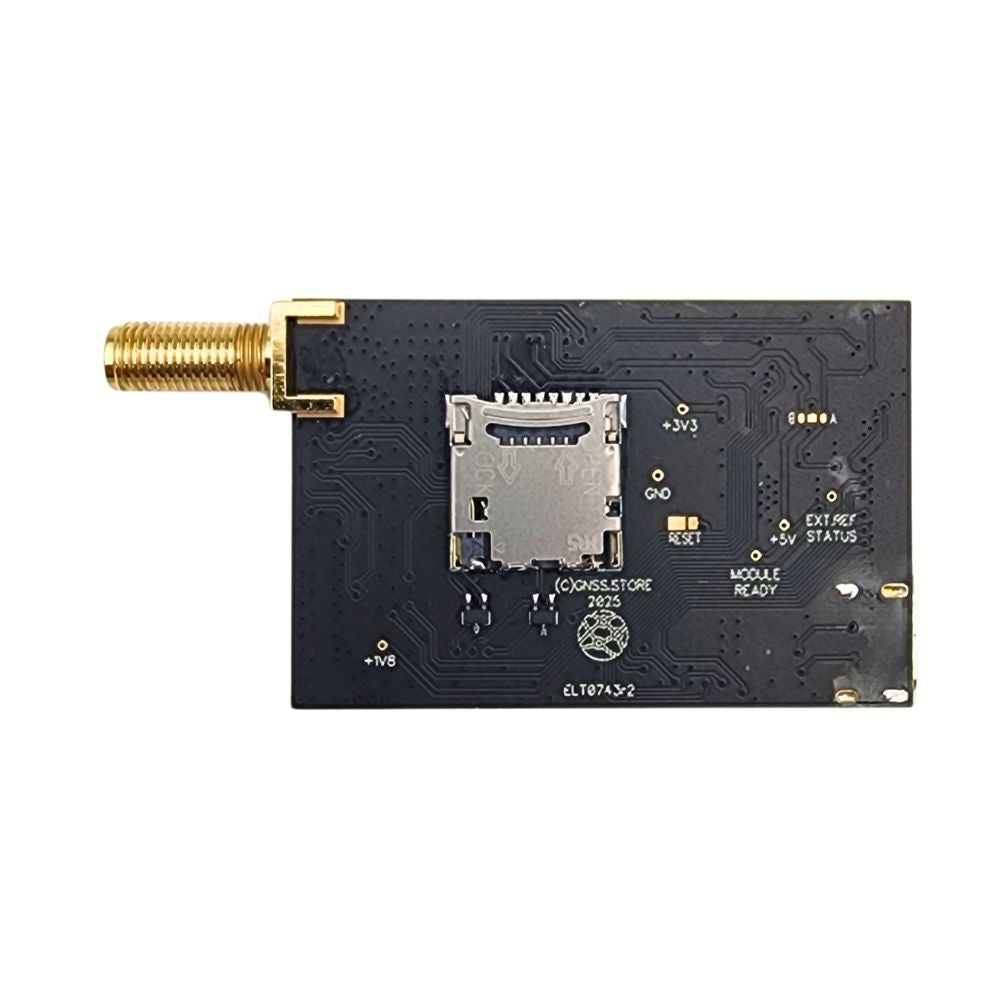

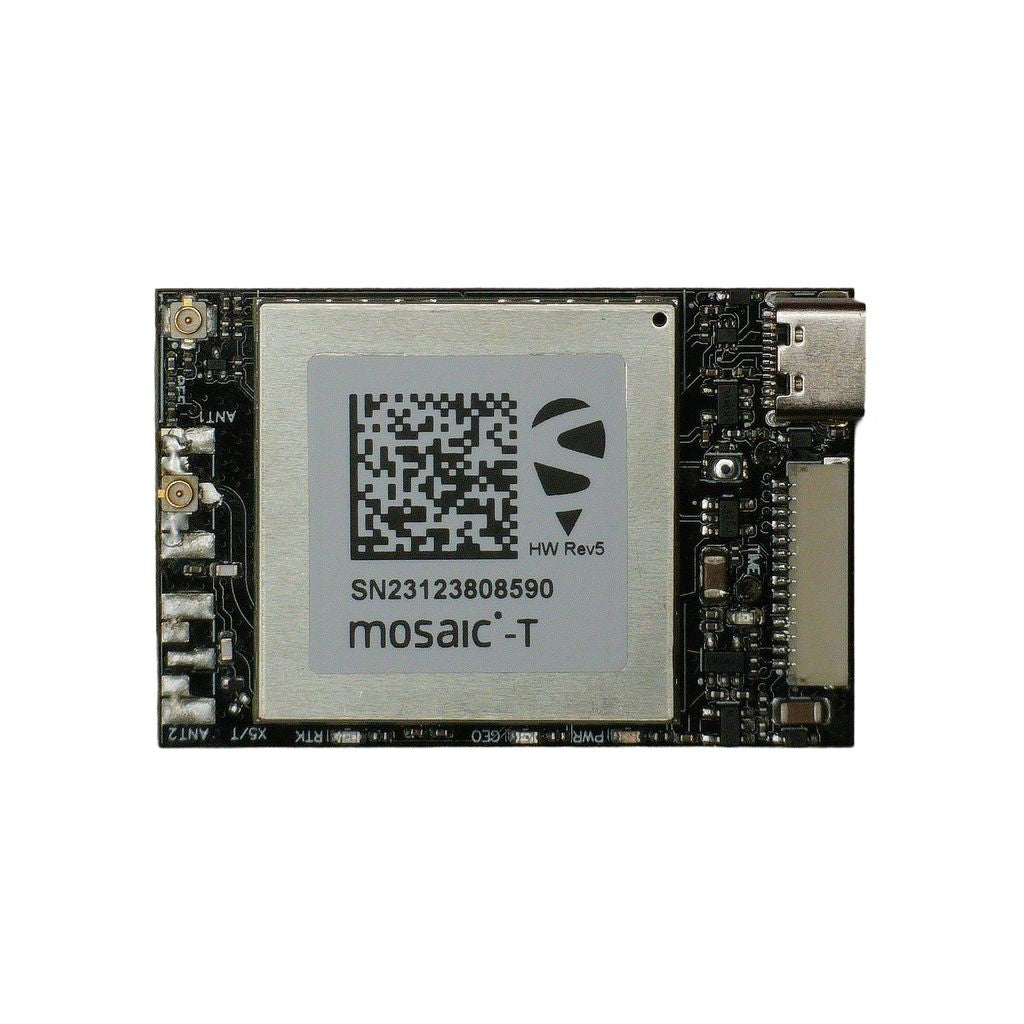

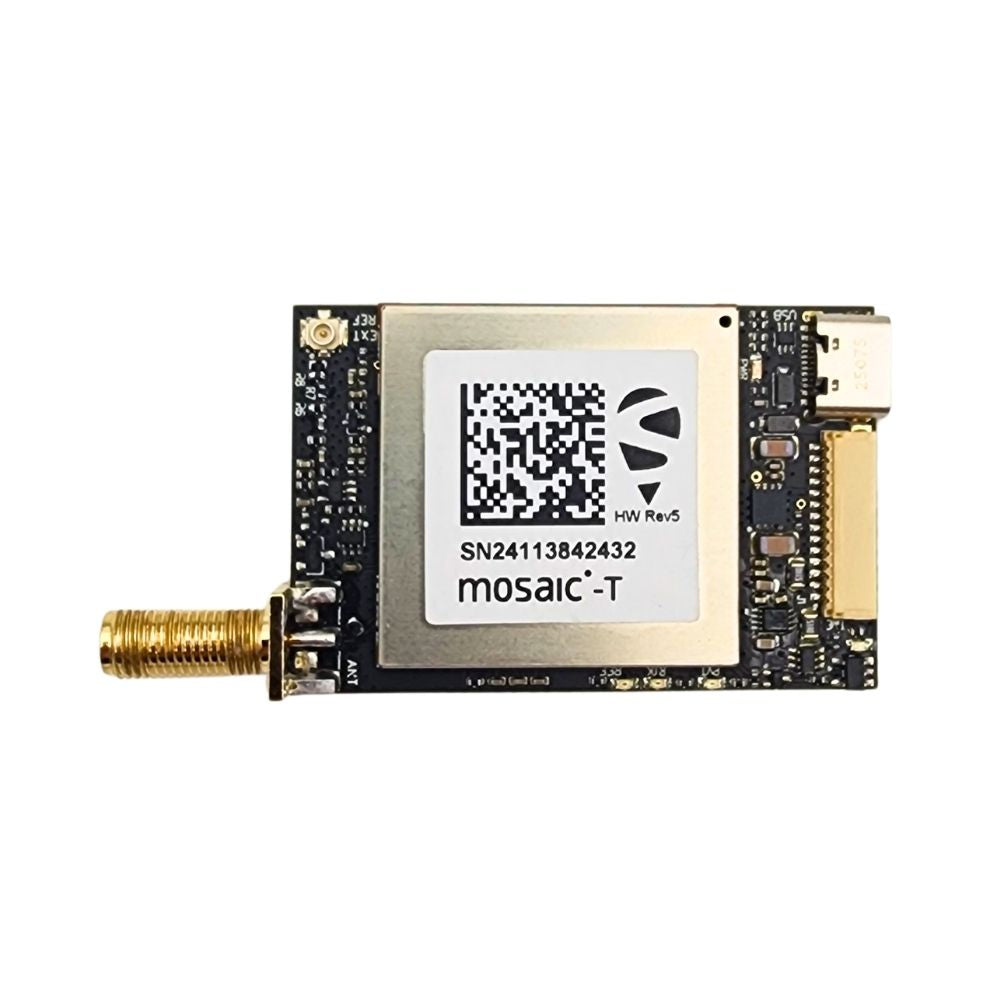

mosaic-T InCase PIN GNSS timing receiver board with SD card and USB C

mosaic-T all-constellation multi-frequency top-performance high precision timing GNSS receiver.

mosaic-T high-reliability timing receiver designed specifically for providing the highest security and availability for critical infrastructure and other applications where resilient timing is essential. mosaic-T provide dedicated inputs for clock and frequency synchronization.

With optional AtomiChron services, mosaic-T is providing 4 constellations NMA for superior anti-spoofing and precise timing reaching sub nanosecond precision.

AIM+: Advanced Interference Monitoring and Mitigation, offers built-in protection against intentional and unintentional jamming and spoofing using a sophisticated system of sampling and mitigation mechanisms. In robotic devices neighboring electronics can produce RF radiation which interferes with GNSS signals. AIM+ offers protection against such interference resulting in faster set-up time and robust continuous operation.

Advanced Receiver Autonomous Integrity Monitoring (RAIM+) comprises fault detection mechanisms of the receiver at all the levels including the generation of measurements, quality control and navigation algorithms. Detected faulty measurements, which are typically caused by high multipath or active ionosphere, are removed from the solution.

Activity in the ionosphere is a problem for GNSS signals, from loss of RTK fix to total loss of signal lock. Having honed our skills, supporting applications in the most iono-active areas on Earth, the result is IONO+: the most advanced protection against ionospheric disturbances to GNSS signals on any receiver.
