mosaic-G5 UltraLight GNSS Smart Antenna for precision and RTK positioning
mosaic-G5 ultraLight RTK GNSS Smart Antenna is a next-generation, ultra-lightweight RTK GNSS solution built around the powerful mosaic-G5 module, integrated with a high-precision RM3100 compass and a compact helical antenna. It is purpose-designed for weight-sensitive UAVs, robotics, and mobile applications where every gram matters.
With its advanced multi-band RF front-end, the mosaic-G5 ultraLight Smart Antenna is capable of simultaneously tracking all major GNSS constellations — ensuring robust positioning and centimeter-level accuracy when combined with correction data.
Engineered for flexibility, it supports concurrent reception of GPS, GLONASS, Galileo, BeiDou, QZSS, and SBAS, delivering a high-performance navigation solution even in challenging environments. Septentrio’s AIM+ advanced anti-jamming and anti-spoofing technology, the mosaic-G5 provides reliable, high-precision positioning where traditional receivers struggle.
In stock
Couldn't load pickup availability
Product Features
Product Features
Lightweight, powerful, and dependable — the mosaic-G5 ultraLight RTK GNSS Smart Antenna is the ideal choice for next-generation UAVs, autonomous systems, and precision applications that demand uncompromised performance in a compact form factor.
Device Features:
- Based on Septentrio mosaic-G5 module with integrated multi-band RF front-end and high-precision positioning engine
- Advanced multi-frequency RTK engine for robust centimeter-level accuracy worldwide, supports positioning across all major constellations and frequencies
- AIM+ technology providing interference suppression, anti-jamming, and anti-spoofing
- Independent tracking of concurrent signals with built-in anti-jamming and interference mitigation
- Low Noise Amplifier (LNA) integrated with the compact helical antenna
- High Gain: 28 dB typ. from antenna
- Axial ratio: 3 dB max.
- Tight Phase Center Variation (PCV)
- Power supply: 5 VDC
- Integrated 3-axis digital compass sensor RM3100 for accurate heading and orientation
Physical Characteristics:

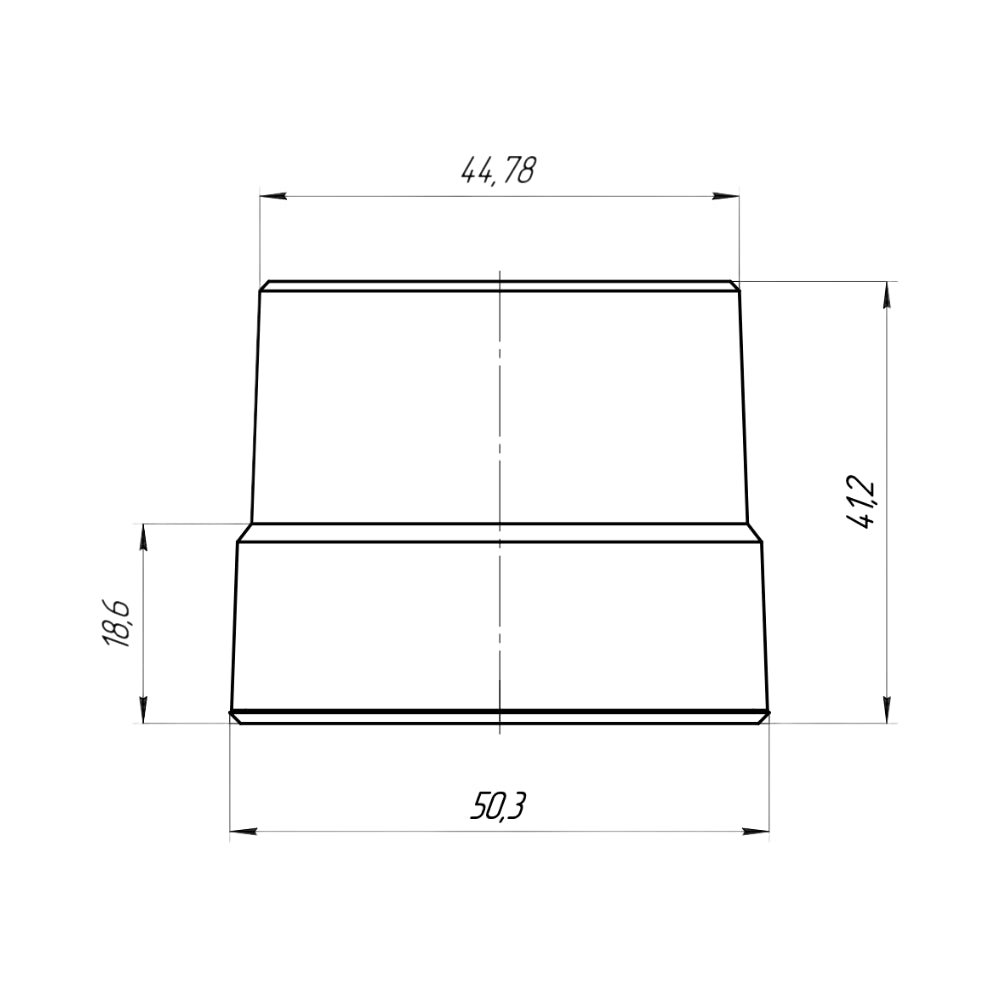

- Dimension: Ø50x41 mm
- Weight: 34 gr.
- Water and Dust Resistance: IP55
- Operating Temperature: -10 °C ~ +60 °C

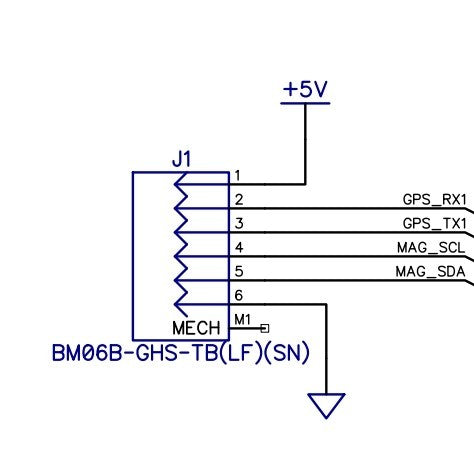

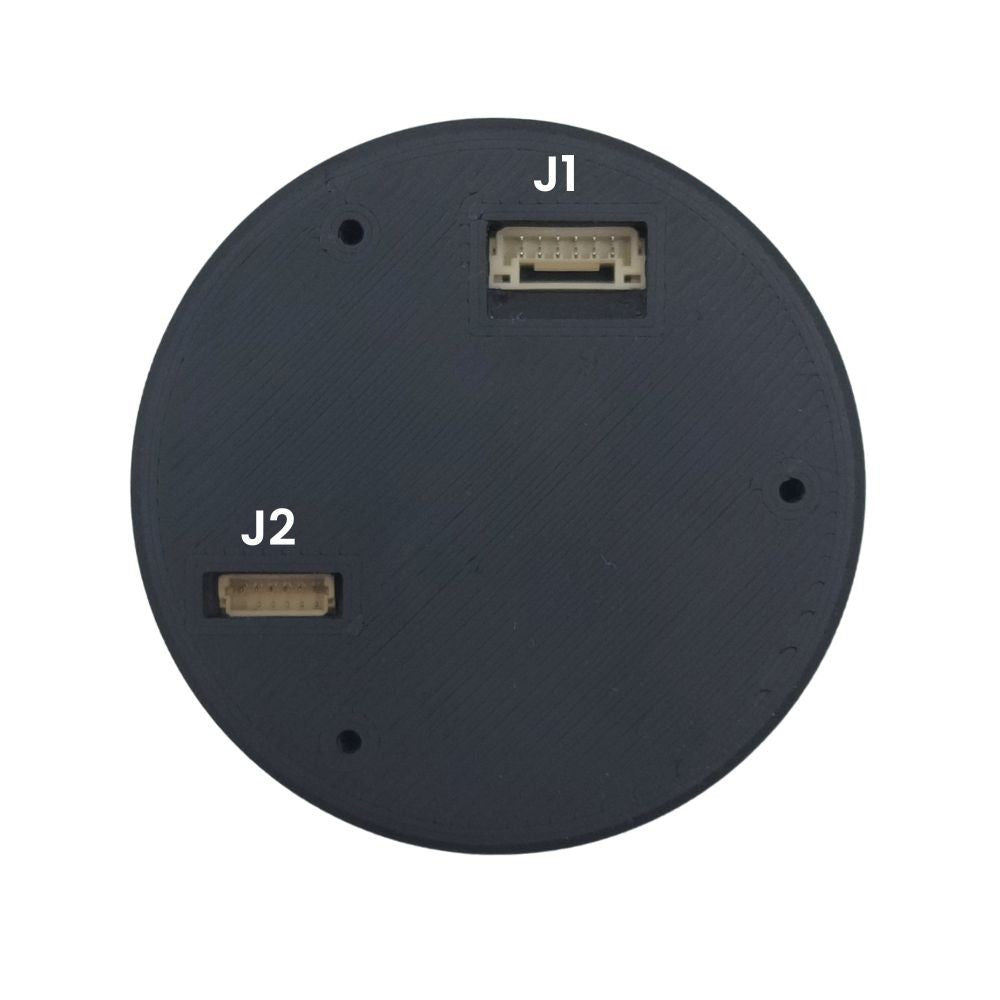

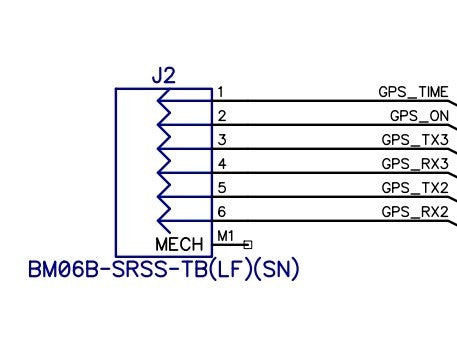

- Connector type: JST SH 1 mm 6 pin, JST GH 1.25 mm 6 pin

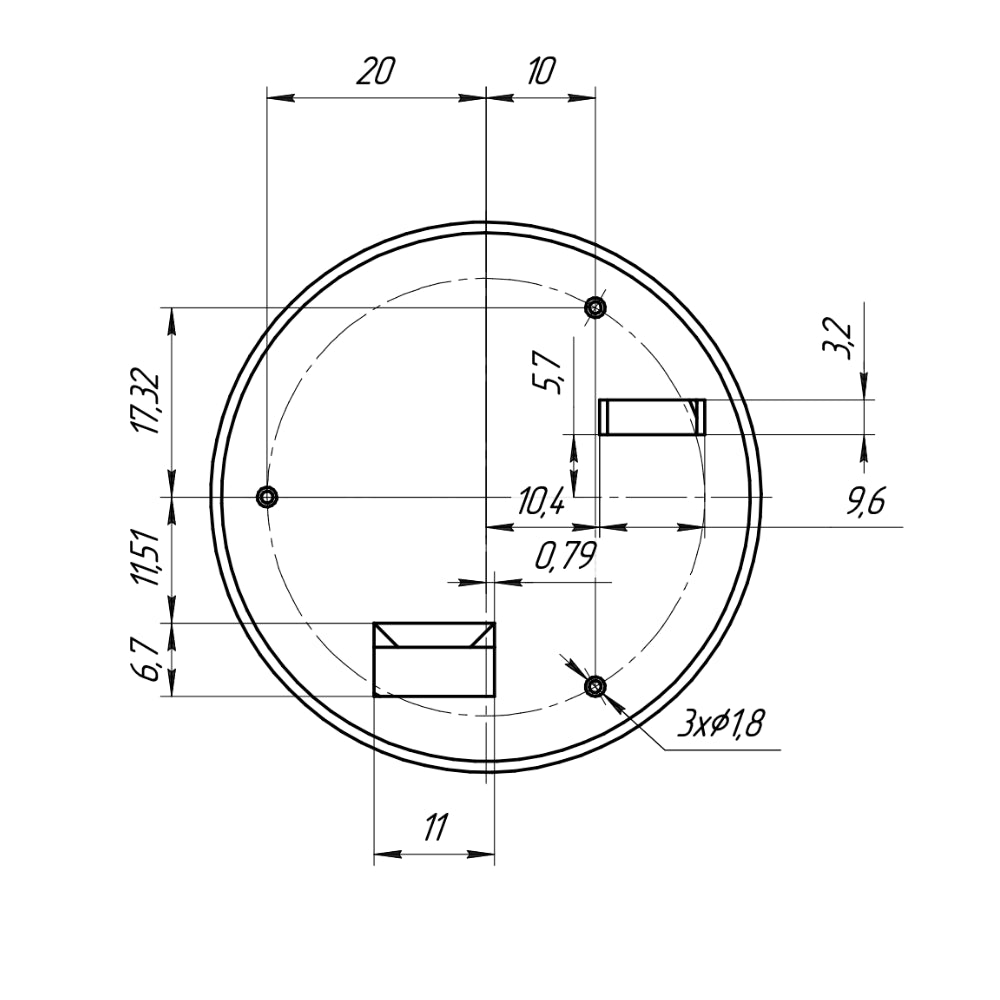

- Mounting Options: Waterproof 3M double-sided tape, Screw mount
- RoHS & Reach Compliant
- Fully assembled, tested, sealed, and ready for use

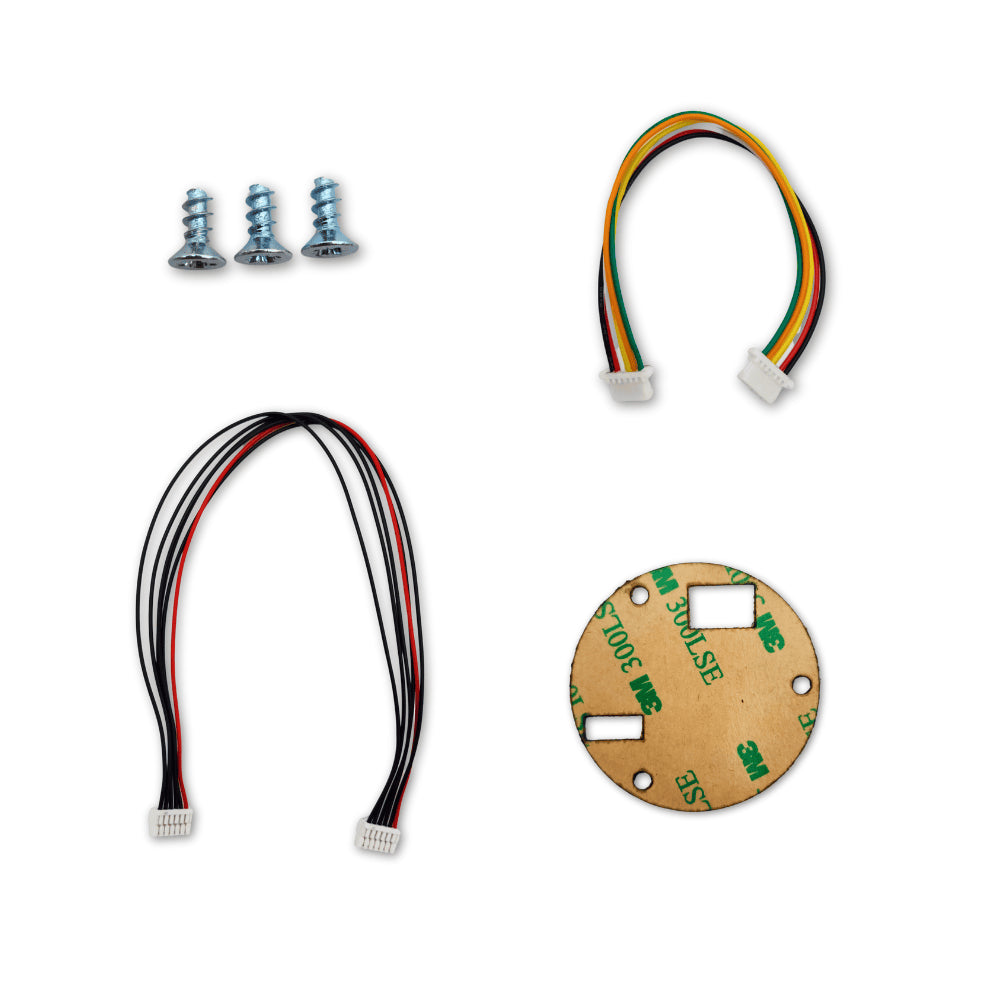

Kit included:
- Smart antenna – 1 piece
- Cable 200mm JST GH male 6 pin to 6 pin compatible with Pixhawk – 1 piece
- Cable 100 mm JST SH 1.0 mm 6 pin to 6 pin – 1 piece
- Waterproof 3M double-sided tape – 1 piece
- Screws 2.5x6 – 3 pieces
