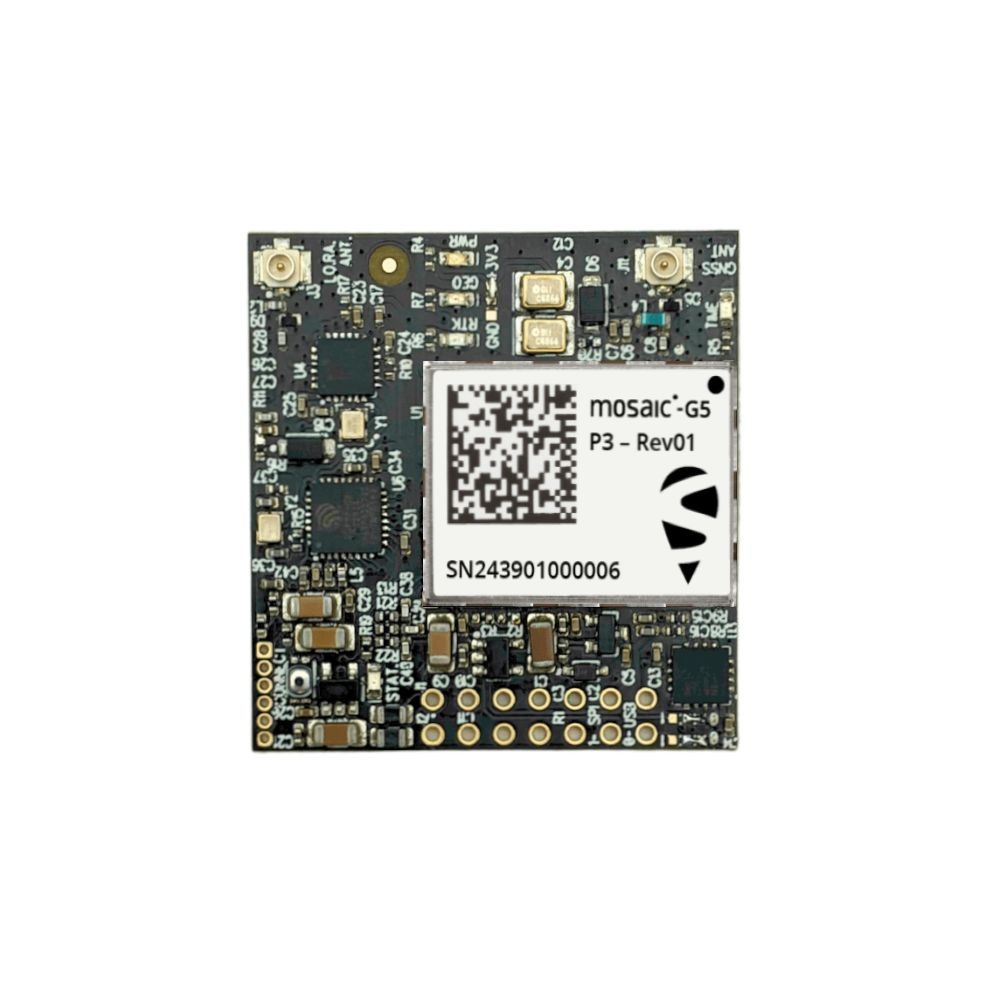

mosaic-G5 RTK with LoRa technology GNSS receiver board
mosaic-G5 RTK with LoRa technology GNSS receiver board
Tax excluded
mosaic-G5 all-constellation multi-frequency top-performance high precision RTK GNSS receiver with LoRa RTK corrections receiver
mosaic-G5 RTK GNSS with integrated LoRa delivers reliable centimeter-level accuracy — perfect for surveying, agriculture, construction, drones, and even multi-drone swarms, all without relying on mobile networks.
mosaic-G5 high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.
AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation.
APME+ a posteriori multipath estimator for code and phase multipath mitigation.
LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations
IONO+ provides advanced protection against ionospheric disturbances
RAIM+ receiver autonomous integrity monitoring
In stock
Couldn't load pickup availability
Product Features
Product Features
An RTK GNSS receiver with integrated LoRa is ideal for applications where centimeter-level accuracy is required in areas with limited or no internet access. The LoRa link provides a low-power, long-range channel for receiving RTCM corrections directly from a local base station.
This makes it especially suitable for:
- Surveying and construction – reliable corrections without mobile networks.
- Precision agriculture – cost-effective guidance for tractors and field equipment.
- Drones and UAVs – lightweight, power-efficient correction channel.
- Drone swarms and multi-drone operations – one base station can serve many drones simultaneously, ensuring synchronized, high-precision positioning.
- Autonomous robots and vehicles – dependable local infrastructure for navigation.
In short: RTK + LoRa offers simple, efficient, and scalable centimeter-level positioning for both single devices and coordinated fleets.
- GNSS antenna input with IPEX connector
- LoRa antenna input with IPEX connector
- LoRa configuration switch
- USB and one UART with hardware flow control interface
- EVENTA, EVENTB external event inputs (3.3V)
- PPS output (3.3V)
- Green Time pulse LED, purple Power LED, red LED (GPIO1), orange LED (GPIO2)
- RxTools Control and Analysis Software
- Extensive visualization and evaluation features
- Dimensions 34x36 mm
- Weight: 10 gr.
- Fully assembled, tested and ready to use
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| mosaic-G5 all-constellation multi-frequency top-performance high precision RTK GNSS receiver with LoRa RTK corrections receiver mosaic-G5 RTK GNSS with integrated LoRa delivers reliable centimeter-level accuracy — perfect for surveying, agriculture, construction, drones, and even multi-drone swarms, all without relying on mobile networks. mosaic-G5 high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals. AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation. APME+ a posteriori multipath estimator for code and phase multipath mitigation. LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations IONO+ provides advanced protection against ionospheric disturbances RAIM+ receiver autonomous integrity monitoring An RTK GNSS receiver with integrated LoRa is ideal for applications where centimeter-level accuracy is required in areas with limited or no internet access. The LoRa link provides a low-power, long-range channel for receiving RTCM corrections directly from a local base station. This makes it especially suitable for:
In short: RTK + LoRa offers simple, efficient, and scalable centimeter-level positioning for both single devices and coordinated fleets.
| Regular price
$440.00
Sale price
$440.00
Regular price
| ELTEHS |
Choose your option
mosaic-G5 RTK with LoRa technology GNSS receiver board
mosaic-G5 RTK with LoRa technology GNSS receiver board
Tax excluded
In stock
mosaic-G5 all-constellation multi-frequency top-performance high precision RTK GNSS receiver with LoRa RTK corrections receiver
mosaic-G5 RTK GNSS with integrated LoRa delivers reliable centimeter-level accuracy — perfect for surveying, agriculture, construction, drones, and even multi-drone swarms, all without relying on mobile networks.
mosaic-G5 high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.
AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation.
APME+ a posteriori multipath estimator for code and phase multipath mitigation.
LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations
IONO+ provides advanced protection against ionospheric disturbances
RAIM+ receiver autonomous integrity monitoring
An RTK GNSS receiver with integrated LoRa is ideal for applications where centimeter-level accuracy is required in areas with limited or no internet access. The LoRa link provides a low-power, long-range channel for receiving RTCM corrections directly from a local base station.
This makes it especially suitable for:
- Surveying and construction – reliable corrections without mobile networks.
- Precision agriculture – cost-effective guidance for tractors and field equipment.
- Drones and UAVs – lightweight, power-efficient correction channel.
- Drone swarms and multi-drone operations – one base station can serve many drones simultaneously, ensuring synchronized, high-precision positioning.
- Autonomous robots and vehicles – dependable local infrastructure for navigation.
In short: RTK + LoRa offers simple, efficient, and scalable centimeter-level positioning for both single devices and coordinated fleets.
- GNSS antenna input with IPEX connector
- LoRa antenna input with IPEX connector
- LoRa configuration switch
- USB and one UART with hardware flow control interface
- EVENTA, EVENTB external event inputs (3.3V)
- PPS output (3.3V)
- Green Time pulse LED, purple Power LED, red LED (GPIO1), orange LED (GPIO2)
- RxTools Control and Analysis Software
- Extensive visualization and evaluation features
- Dimensions 34x36 mm
- Weight: 10 gr.
- Fully assembled, tested and ready to use
