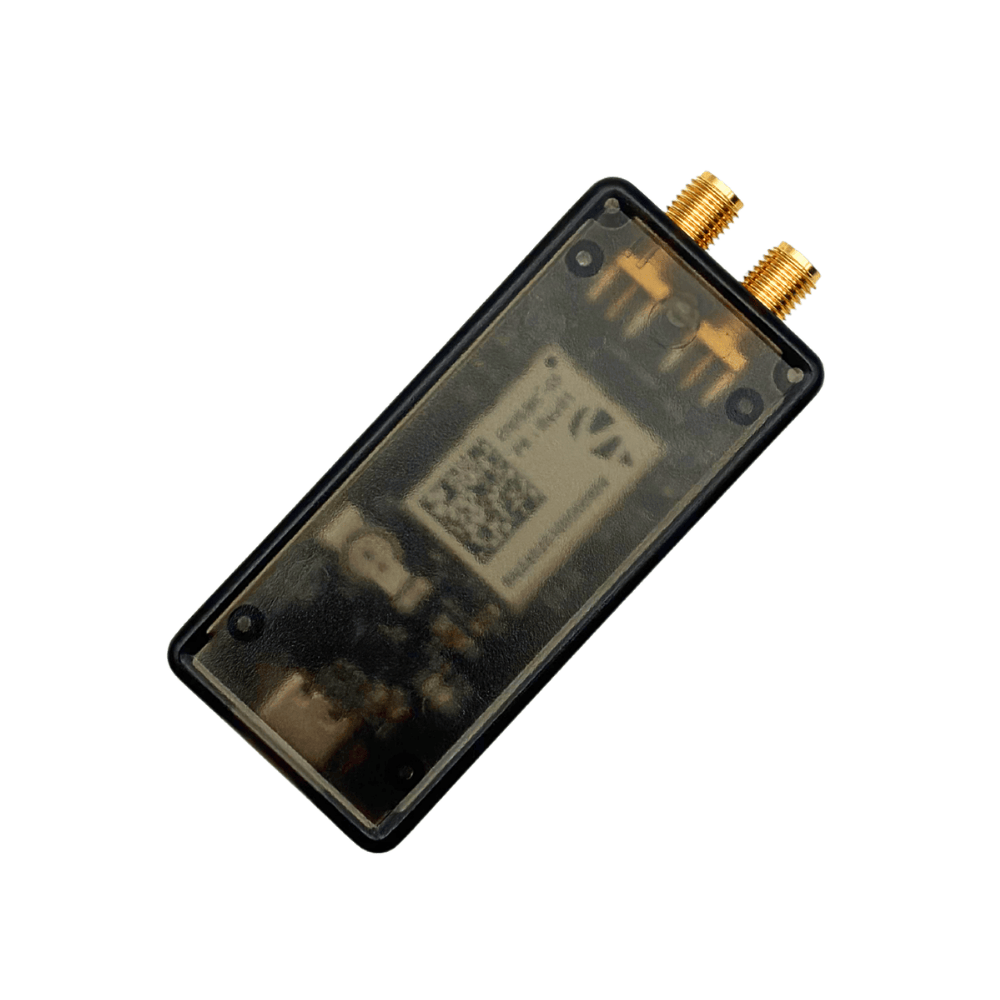

mosaic-G5 P3H Dual Channel RTK GNSS dongle
mosaic-G5 P3H Dual Channel RTK GNSS dongle
Tax excluded
mosaic-G5 P3H dual channel all-constellation multi-frequency top-performance high precision RTK GNSS receiver.
mosaic-G5 high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.
AIM+ Advanced functionality with jamming and spoofing detection and automatic interference mitigation.
APME+ a posteriori multipath estimator for code and phase multipath mitigation.
LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations
IONO+ provides advanced protection against ionospheric disturbances
RAIM+ receiver autonomous integrity monitoring
In stock
Couldn't load pickup availability
Product Features
Product Features
- Two antenna inputs with SMA connectors
- USB C connector
- Green Time pulse LED, purple Power LED, red LED (GPIO1), orange LED (GPIO2)
- RxTools Control and Analysis Software
- Extensive visualization and evaluation features
- Dimensions 85x30x15 mm
- Weight: 20 gr.
- Fully assembled, tested and ready to use
