MAX-M8Q Mic GPS GNSS LIS3MDL SAW LNA Triple Band ANT
MAX-M8Q Mic GPS GNSS LIS3MDL SAW LNA Triple Band ANT
Tax excluded

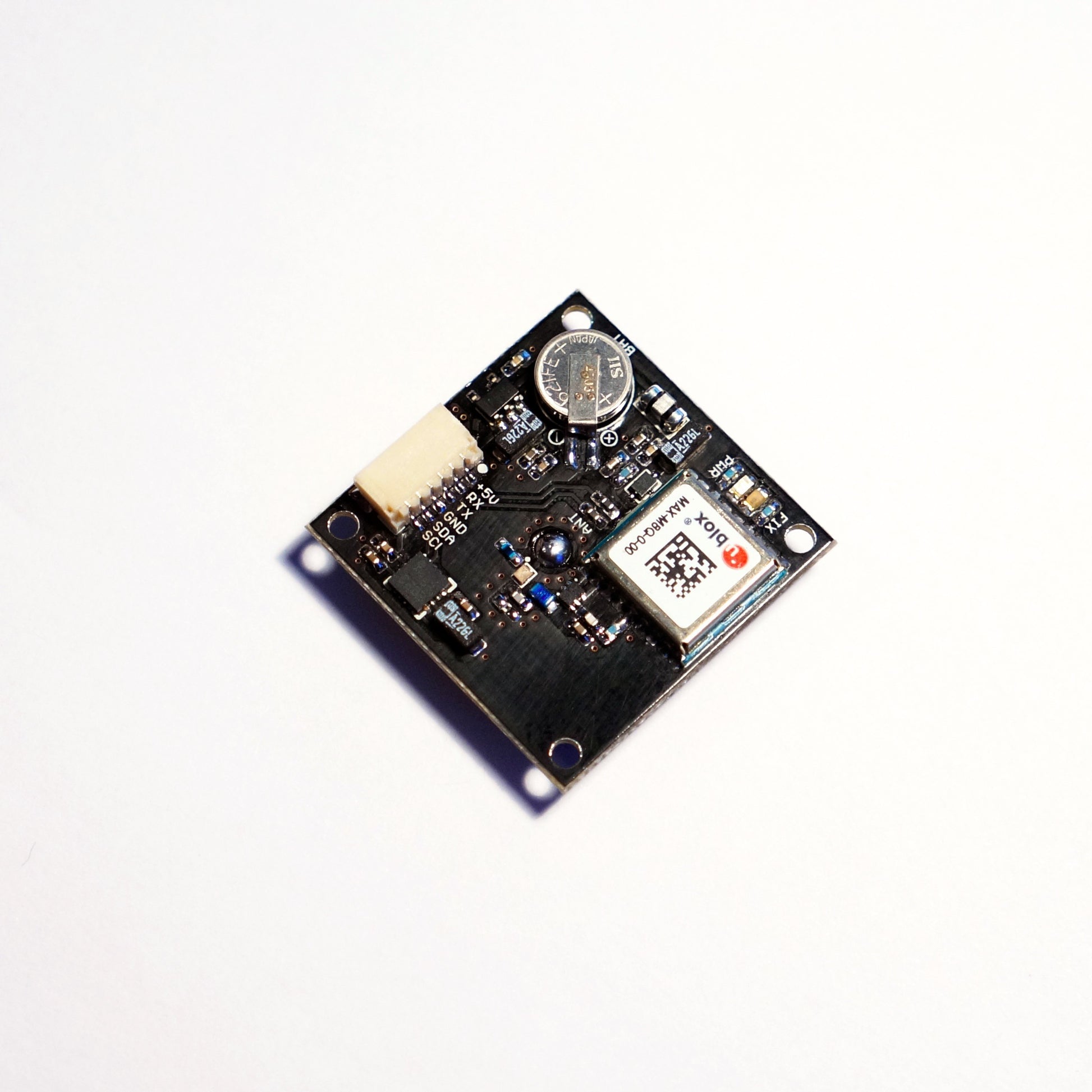

MAX-M8Q u-blox GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS receiver + LIS3MDL Compass with Triple Band antenna + Triple Band Pass filter and LNA
The MAX-M8Q Evaluation board makes evaluating the high performance of the u-blox 8 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The MAX-M8Q Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the MAX-M8Q breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the MAX-M8Q with LIS3MDL Compass
Available in stock (113)
Couldn't load pickup availability
Product Features
Product Features
- 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C (MAX-M8Q)
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
-
UART (Tx, Rx) and I2C (SDA, SCL)(for LIS3MDL)

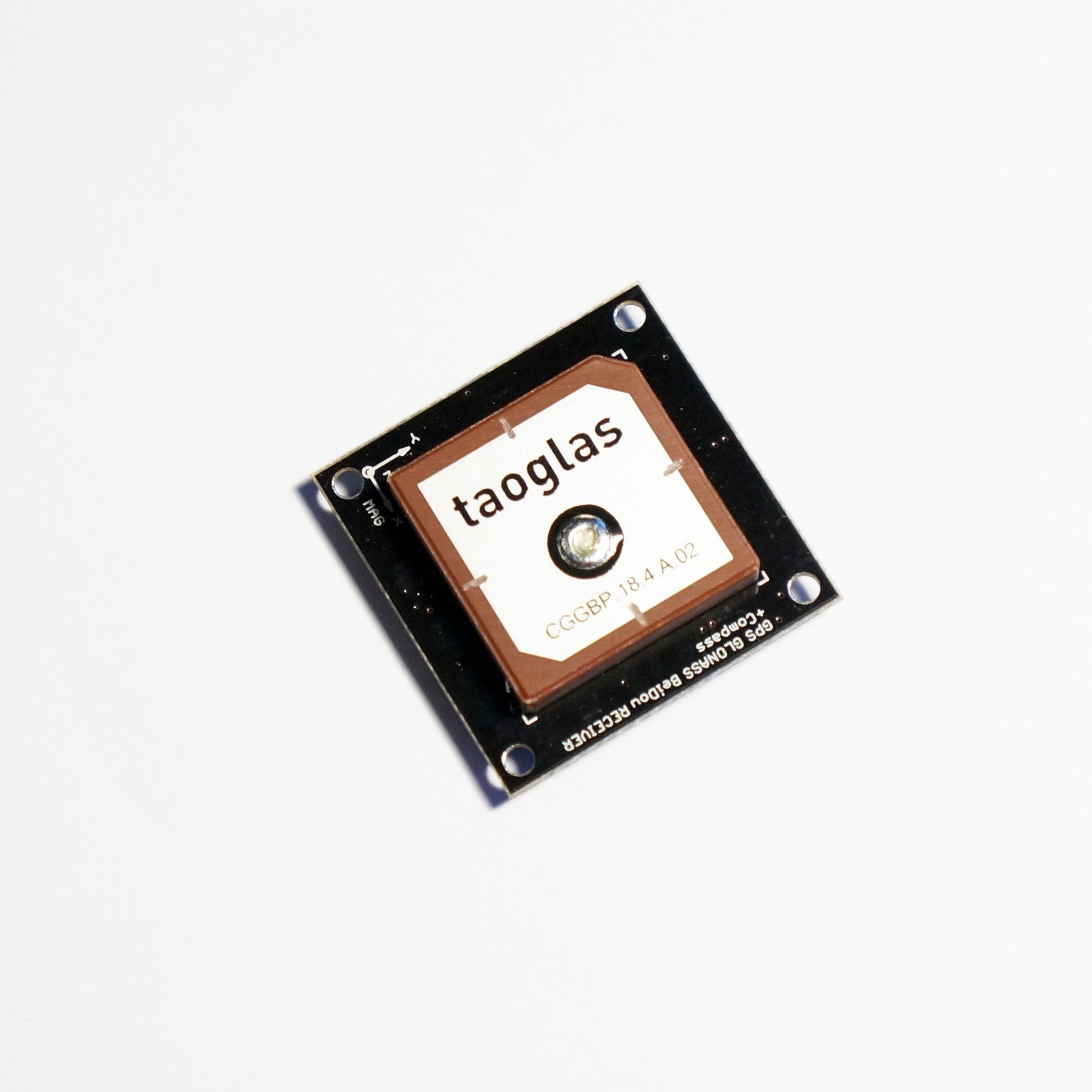

- Triple band GPS, Glonass and BeiDou antenna
- Triple band Band Pass filter
- Triple Band LNA
- u-center ublox GPS Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- 1 TTL UART port, 1 I2C port
- Time pulse LED
- Supercapacitor for HOT module start and settings storage
- Build-in LIS3MDL Compass
- Dimensions: 25x25 mm; hole distance 22x22mm
- Weight: 16 gr.
- Fully assembled and ready to use
- Best performance for this weight and size!
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| MAX-M8Q u-blox GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS receiver + LIS3MDL Compass with Triple Band antenna + Triple Band Pass filter and LNA The MAX-M8Q Evaluation board makes evaluating the high performance of the u-blox 8 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The MAX-M8Q Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the MAX-M8Q breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the MAX-M8Q with LIS3MDL Compass
| Regular price
$80.00
Sale price
$80.00
Regular price
| ELTEHS |
Choose your option
MAX-M8Q Mic GPS GNSS LIS3MDL SAW LNA Triple Band ANT
MAX-M8Q Mic GPS GNSS LIS3MDL SAW LNA Triple Band ANT
Tax excluded
Available in stock (113)
MAX-M8Q u-blox GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS receiver + LIS3MDL Compass with Triple Band antenna + Triple Band Pass filter and LNA
The MAX-M8Q Evaluation board makes evaluating the high performance of the u-blox 8 positioning engine simple. With a built-in USB interface for both power supply and high-speed data transfer, the need for an external power supply is eliminated. The MAX-M8Q Breakout board is very compact, and it’s user-friendly interface and power supply options make it ideally suited for use in laboratories, vehicles and outdoor locations. Furthermore, the MAX-M8Q breakout board can be used with a PDA or a notebook PC, making it the perfect companion through all stages of design-in projects. It’s a fully assembled and tested PCB for the MAX-M8Q with LIS3MDL Compass
- 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C (MAX-M8Q)
- SuperSense Indoor GPS, -167dBm
- On-board low noise 3.3V voltage regulator and RF filter for noise blocking
-
UART (Tx, Rx) and I2C (SDA, SCL)(for LIS3MDL)
- Triple band GPS, Glonass and BeiDou antenna
- Triple band Band Pass filter
- Triple Band LNA
- u-center ublox GPS Evaluation Software
- Extensive visualization and evaluation features
- Supports AssistNow Online and AssistNow Offline A-GPS services
- 1 TTL UART port, 1 I2C port
- Time pulse LED
- Supercapacitor for HOT module start and settings storage
- Build-in LIS3MDL Compass
- Dimensions: 25x25 mm; hole distance 22x22mm
- Weight: 16 gr.
- Fully assembled and ready to use
- Best performance for this weight and size!
