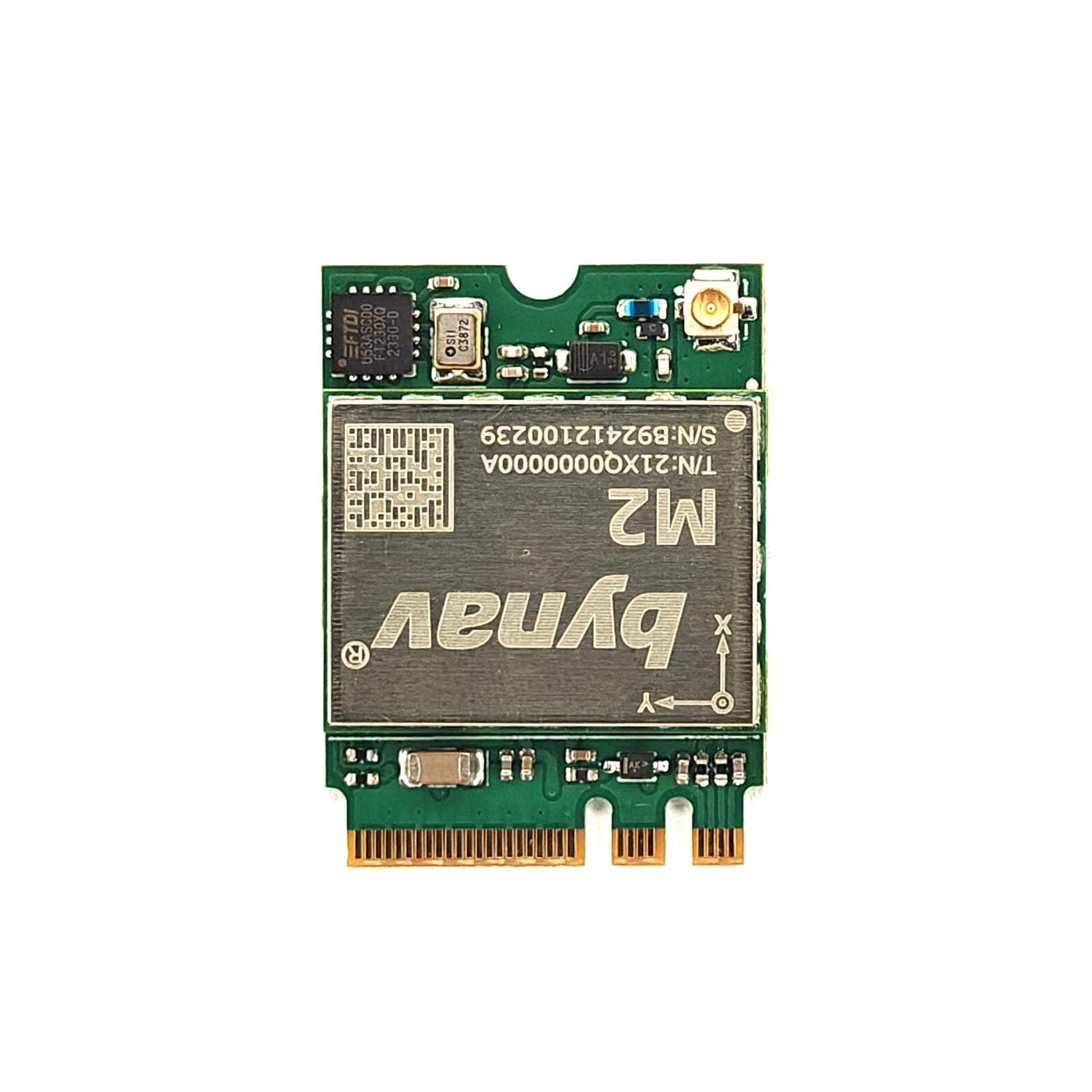

M21 M.2 socket RTK with IMU GNSS receiver
M21 M.2 socket RTK with IMU GNSS receiver
Tax excluded
M21 Deeply coupled IMU All-constellation Multi-frequency High Precision RTK GNSS receiver.
M21 is Bynav new-generation proprietary high-precision RTK positioning module based on the Alice 22nm high performance automotive SoC, designed on the basis of ISO26262 ASIL B functional safety. The module supports GPS L1C/A/L1C/L2/L5, BDS B1l/B2l/B3l/B1C/B2a/B2b, GLONASS G1/G2, Galileo E1/E5a/E5b/E6, QZSS L1/L2/L5/L6(CLAS), NavIC L5, SBAS L1C/A and L-band. The built-in anti-interference and anti-deception technologies enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as satellite signal interference and loss. Relying on the excellent performance, M21 is well suited for autonomous driving, lane-level navigation, drones and robots.
Available in stock (24)
Couldn't load pickup availability
Product Features
Product Features
- M.2 2230 Key A+E compatible (Part of NGFF, Next Generation Form Factor)
- Antenna input with IPEX connector
- Only USB interface used
- BY_Connect Bynav Evaluation Software
- Extensive visualization and evaluation features
- Backup supercapacitor
- Dimensions 22x30 mm
- Weight: 10 gr.
- Fully assembled and ready to use
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| M21 Deeply coupled IMU All-constellation Multi-frequency High Precision RTK GNSS receiver. M21 is Bynav new-generation proprietary high-precision RTK positioning module based on the Alice 22nm high performance automotive SoC, designed on the basis of ISO26262 ASIL B functional safety. The module supports GPS L1C/A/L1C/L2/L5, BDS B1l/B2l/B3l/B1C/B2a/B2b, GLONASS G1/G2, Galileo E1/E5a/E5b/E6, QZSS L1/L2/L5/L6(CLAS), NavIC L5, SBAS L1C/A and L-band. The built-in anti-interference and anti-deception technologies enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as satellite signal interference and loss. Relying on the excellent performance, M21 is well suited for autonomous driving, lane-level navigation, drones and robots.
| Regular price
$191.00
Sale price
$191.00
Regular price
| ELTEHS |
Choose your option
M21 M.2 socket RTK with IMU GNSS receiver
M21 M.2 socket RTK with IMU GNSS receiver
Tax excluded
Available in stock (24)
M21 Deeply coupled IMU All-constellation Multi-frequency High Precision RTK GNSS receiver.
M21 is Bynav new-generation proprietary high-precision RTK positioning module based on the Alice 22nm high performance automotive SoC, designed on the basis of ISO26262 ASIL B functional safety. The module supports GPS L1C/A/L1C/L2/L5, BDS B1l/B2l/B3l/B1C/B2a/B2b, GLONASS G1/G2, Galileo E1/E5a/E5b/E6, QZSS L1/L2/L5/L6(CLAS), NavIC L5, SBAS L1C/A and L-band. The built-in anti-interference and anti-deception technologies enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as satellite signal interference and loss. Relying on the excellent performance, M21 is well suited for autonomous driving, lane-level navigation, drones and robots.
- M.2 2230 Key A+E compatible (Part of NGFF, Next Generation Form Factor)
- Antenna input with IPEX connector
- Only USB interface used
- BY_Connect Bynav Evaluation Software
- Extensive visualization and evaluation features
- Backup supercapacitor
- Dimensions 22x30 mm
- Weight: 10 gr.
- Fully assembled and ready to use
