L1 IPEX (U.FL) 25mm Two Stage 33dB GPS/Glonass Active Patch Antenna Module – Eltehs GNSS Store (elt0180)

Product Features

Patch antenna characteristics:

Frequency: L1/B1/E1 1575.42MHZ G1 1602MHz
Gain: 2dBi
VSWR: <1.5
Impendance: 50 Ohm
Polarizacion: RHCP
Axis Ratio: <3dB
Horizontal angle: 360deg

Signal Received:

GPS L1
GLONASS G1
GALILEO E1
BDS B1I/B1C
SBAS L1
QZSS L1

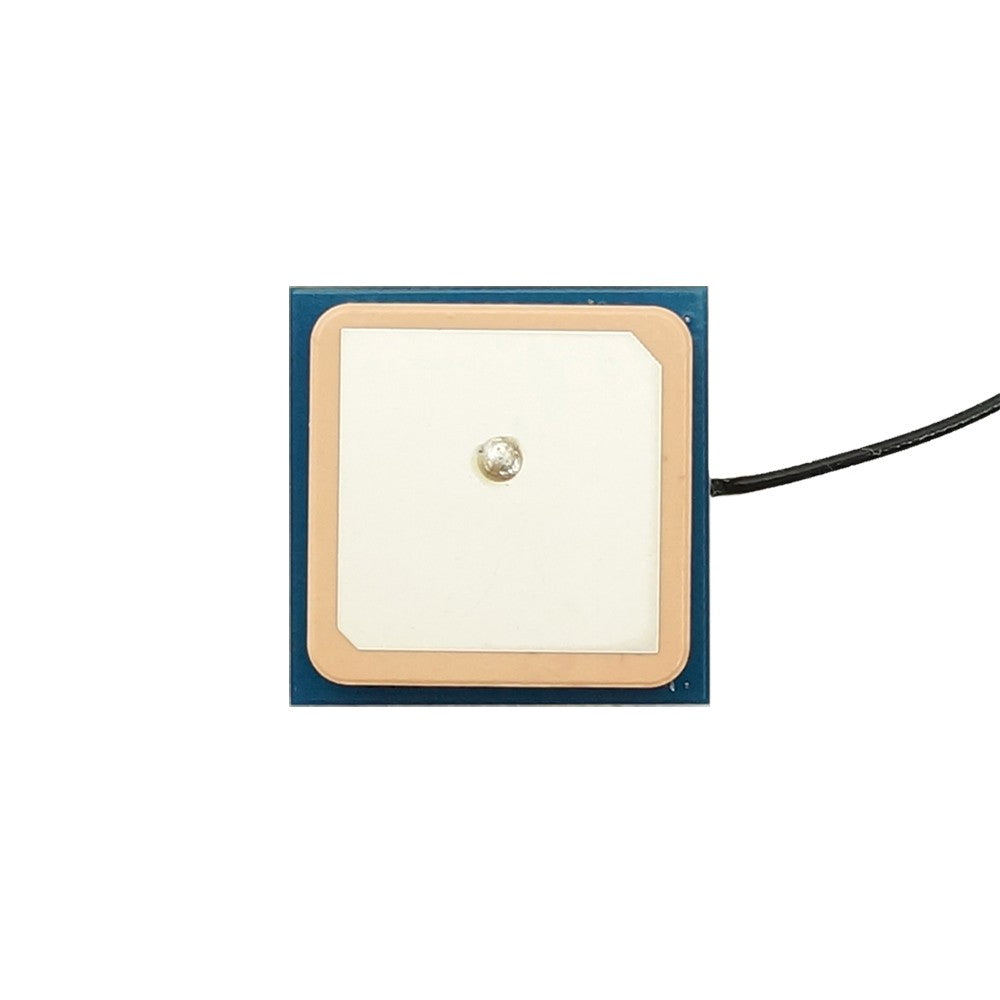

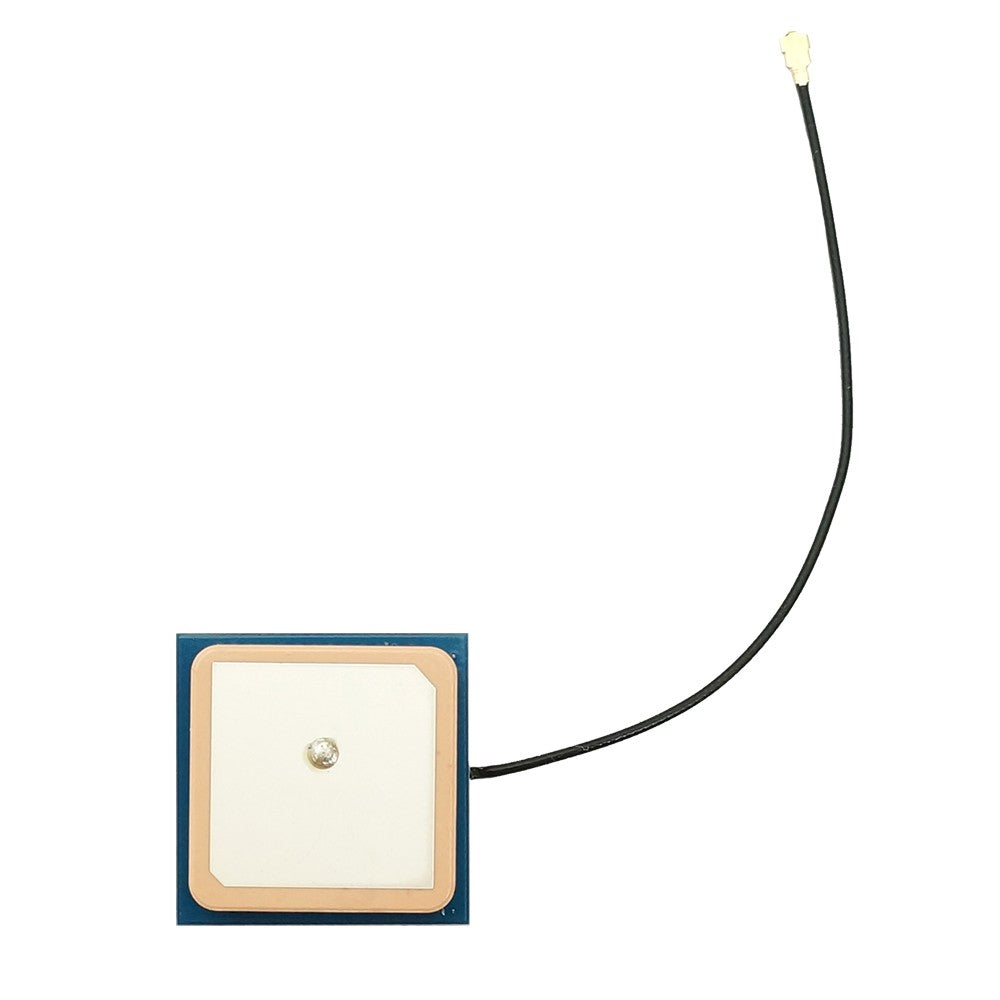

IPEX (U.FL) 25mm Two Stage 33dB GPS/Glonass Active Patch Antenna Module

LNA Specifications:

LNA Gain: 33dB
Noise Figure: <2dB
Output Impendance: 50 Ohm
Supply Voltage: 2.8-5V
Supply current: <20mA

Mechanical Data:

Dimensions: 28x28x7mm (Ground Plane)
Weight: 14 gr.
Connector: IPEX (U.FL)
Cable length: 50mm Ø1.13 cable
Mounting: double sided 3M tape

L1 IPEX (U.FL) 25mm Two Stage 33dB GPS/Glonass Active Patch Antenna Module

Name: L1 IPEX (U.FL) 25mm Two Stage 33dB GPS/Glonass Active Patch Antenna Module
Brand: GNSS Store
SKU: ELT0180
Price: 19.00 USD
Availability: InStock

SKU: ELT0180

EAN: 4751046551808

$19.00

Tax excluded

L1. IPEX (U.FL) 25mm Two Stage 33dB GPS/Galileo/Glonass/Beidou/SBAS/QZSS Active Patch Antenna Module.

The 25mm active patch antenna module has been designed specifically for embedded (inside device) integration with GPS/Glonass receiver modules. The antenna combines a 25x25mm advanced low profile ceramic patch antenna with a two stage LNA and a front-end SAW filter with ultra thin coaxial cable.
