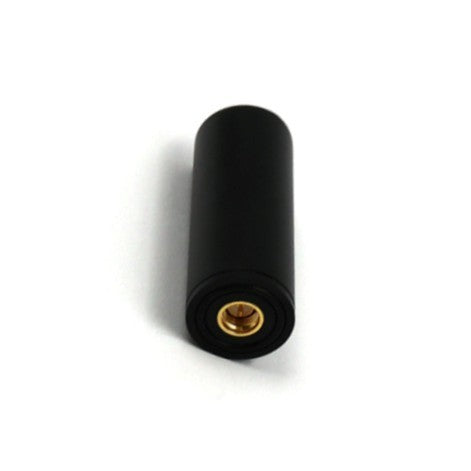

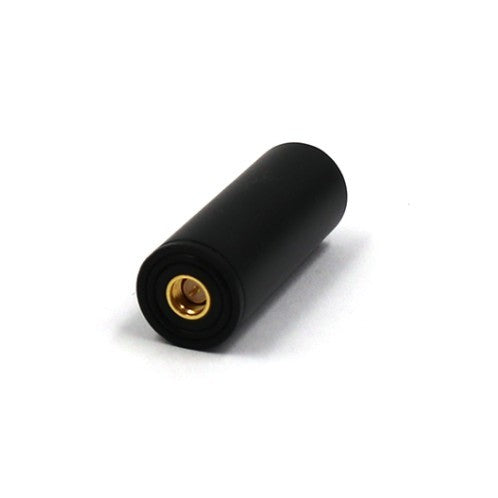

L1 High Performance GNSS Active Quad Helix Antenna for Drones or Robots
L1 High Performance GNSS Active Quad Helix Antenna for Drones or Robots
Tax excluded
High Performance GNSS L1 Active Quad Helix Antenna for Drones or Robots description:
This is an active high-accuracy, GNSS antenna for the GPS/SBAS/QZSS L1, Glonass G1, Beidou B1I/B1c, Galileo E1 bands. The antenna is designed for applications requiring greater accuracy than L1-only antennas can provide. The antenna is built on helical structure technology providing exceptional pattern control, polarization purity and high-efficiency in a compact form factor. It features an integrated SMA connector and rugged IP67 automotive grade components. This antenna is ideal for applications requiring minimal integration effort or for retrofitting existing products. The antenna is equipped with an O-ring.
Available in stock (779)
Couldn't load pickup availability
Product Features
Product Features
Signal Received:
- GPS L1
- GLONASS G1
- GALILEO E1
- BDS B1I/B1C
- SBAS L1
- QZSS L1
Active Quad Helix Antenna for Drones or Robots features:
- Quadrifilar helix antenna
- Concurrent GNSS reception on GPS, GLONASS, Galileo and Beidou
- Rugged IP67 rating with SMA mount
- Small form factor
- Ground plane independent
- GIS, RTK and other high accuracy GNSS applications
- Low power consumption
- Low phase center variation over azimuth and elevation and among different samples
- Nominal Impedance 50Ω
- Polarization RHCP
- Axial Ratio ≤3dB
- Gain RHCP (maximum) ≤3,5dB
- LNA Gain 28dB(typical)
- Noise Figure ≤2dB
- Output/Input VSWR ≤2.0
- Operation Voltage +3.3V
- Operation Current 30mA max
- Group Delay Ripple ＜5ns
MECHANICAL
- Dimensions:Ø18x50 mm
- Weight: 11 gr.
- Connector: SMA
- Mounting: SMA mount
ENVIRONMENTAL
- Temperature Operating -40℃ to +70℃ Storage -40℃ to +70℃
- Humidity 95% non-condensing
- Water/Dust Resistance IP67
