mosaic-X5 all-constellation multi-frequency top-performance high precision RTK GNSS receiver with Ethernet and PoE.
mosaic-X5 high-reliability receiver tracks all Global Navigation Satellite System (GNSS) constellations and supports all current and future signals.
AIM+: Advanced Interference Monitoring and Mitigation, offers built-in protection against intentional and unintentional jamming and spoofing using a sophisticated system of sampling and mitigation mechanisms. In robotic devices neighboring electronics can produce RF radiation which interferes with GNSS signals. AIM+ offers protection against such interference resulting in faster set-up time and robust continuous operation.
Advanced Receiver Autonomous Integrity Monitoring (RAIM+) comprises fault detection mechanisms of the receiver at all the levels including the generation of measurements, quality control and navigation algorithms. Detected faulty measurements, which are typically caused by high multipath or active ionosphere, are removed from the solution.
Activity in the ionosphere is a problem for GNSS signals, from loss of RTK fix to total loss of signal lock. Having honed our skills, supporting applications in the most iono-active areas on Earth, the result is IONO+: the most advanced protection against ionospheric disturbances to GNSS signals on any receiver.
Product features:

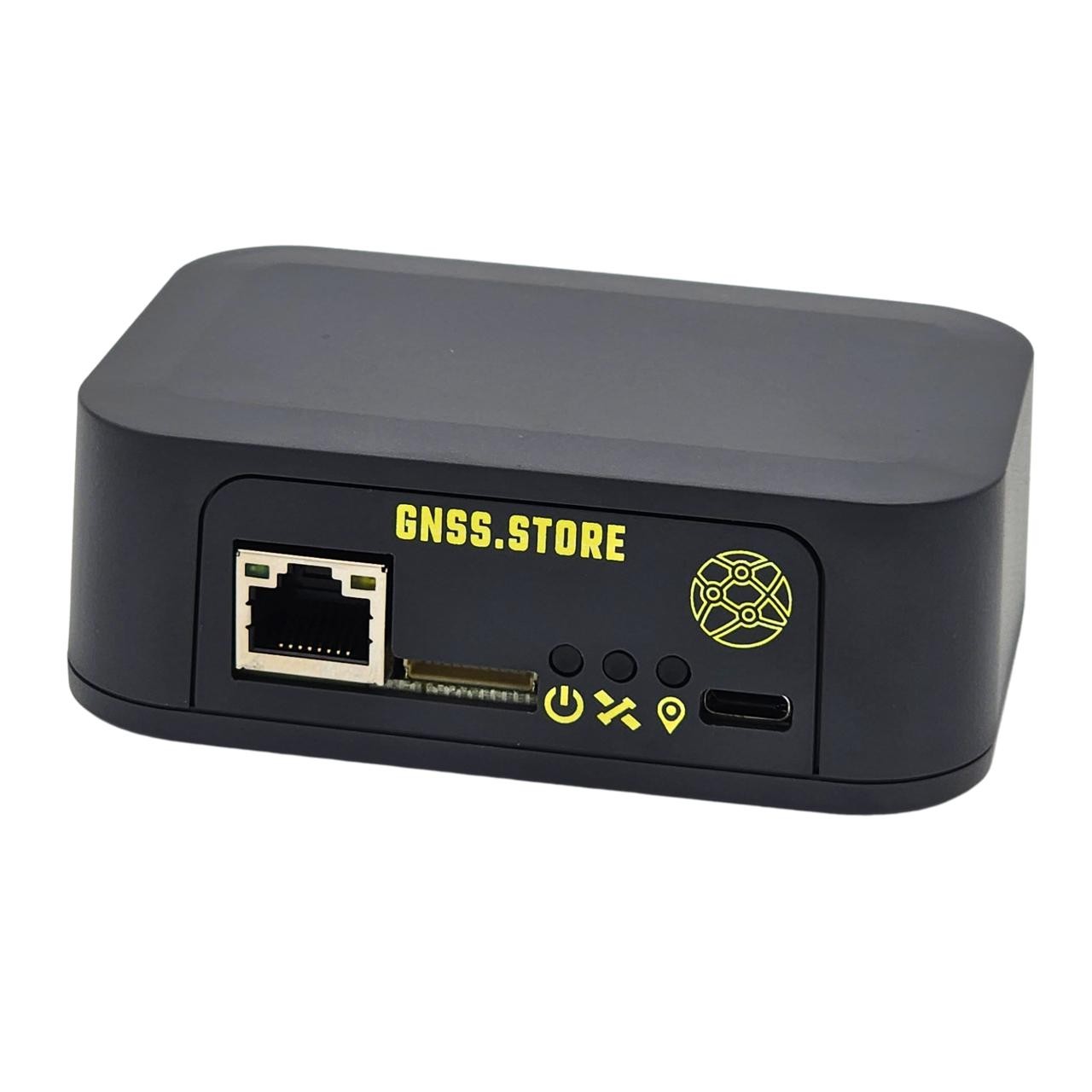

- Ethernet connector with Power over Ethernet support

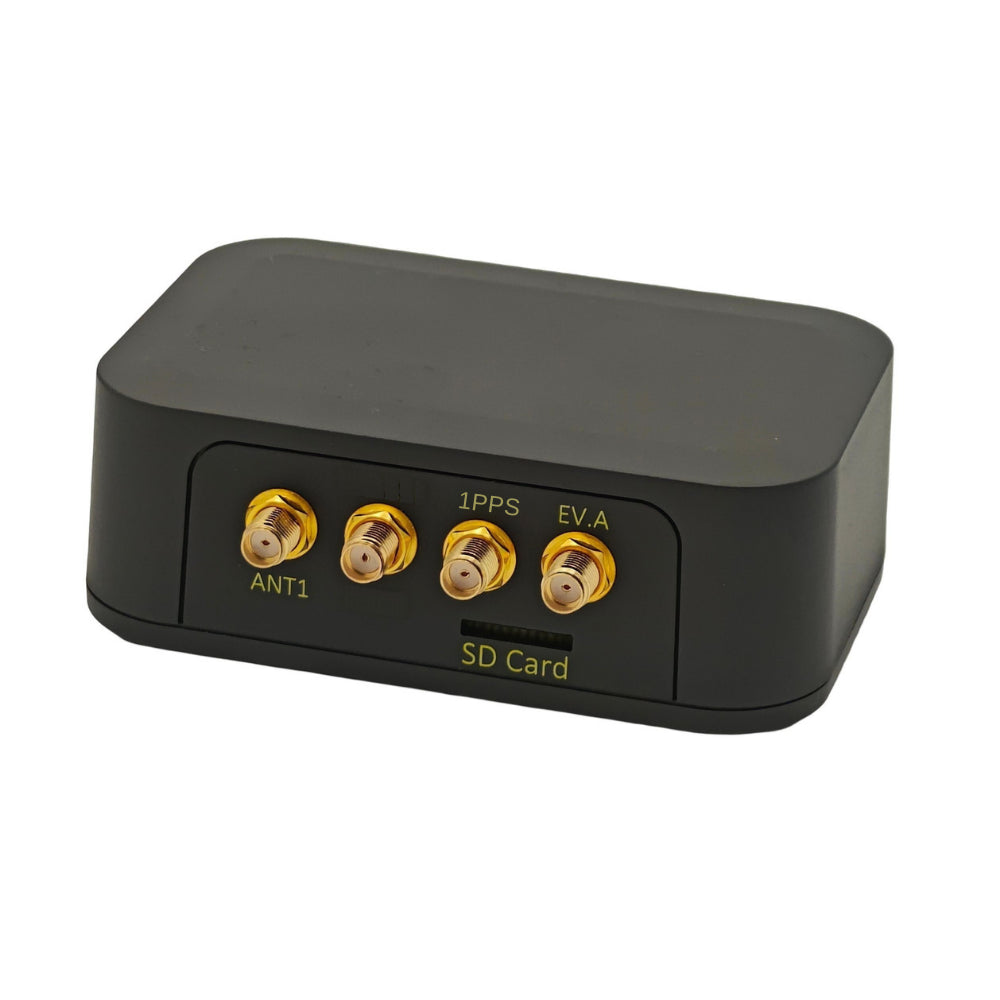

- Antenna input with SMA connector
- USB C connector
- SD card connector for data logging. Max 32GB memory card supported.

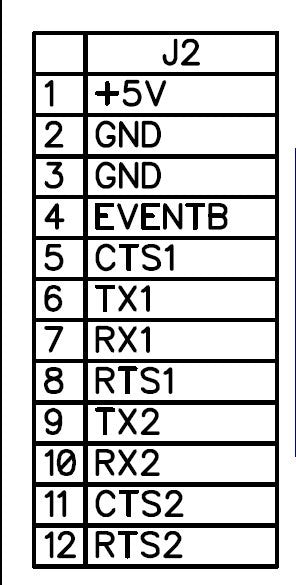

- 2 x UART with hardware flow control interface on JST SH connector
- EVENTA external event inputs on SMA connector (3.3V or 5V)
- EVENTB external event inputs on JST SH connector (3.3V or 5V)
- PPS output on SMA connector (5V or 3.3V)
- Purple Power LED, Green PVT LED (GPLED), Orange RTK LED (GPLED2). GPLED/GPLED2 functions are configured in the receiver
- RxTools Control and Analysis Software
- Extensive visualization and evaluation features
- Dimensions 100x67x35 mm
- Weight: 135 gr.
- Fully assembled, tested and ready to use
