M20 RTK Handheld Surveyor Kit with Quick Charge Connectivity
M20 RTK Handheld Surveyor Kit with Quick Charge Connectivity
Tax excluded
Hurry up, only 5 items left in stock.
Couldn't load pickup availability
Specifications
Specifications

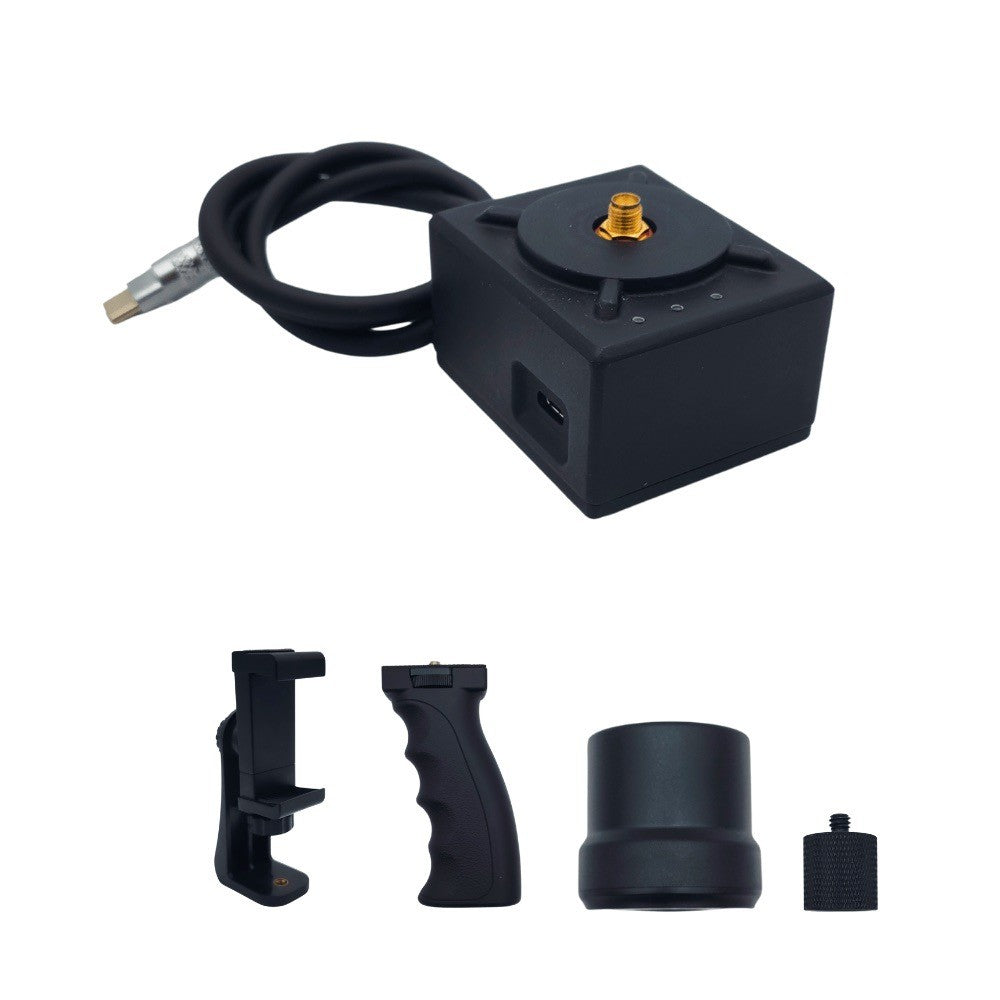

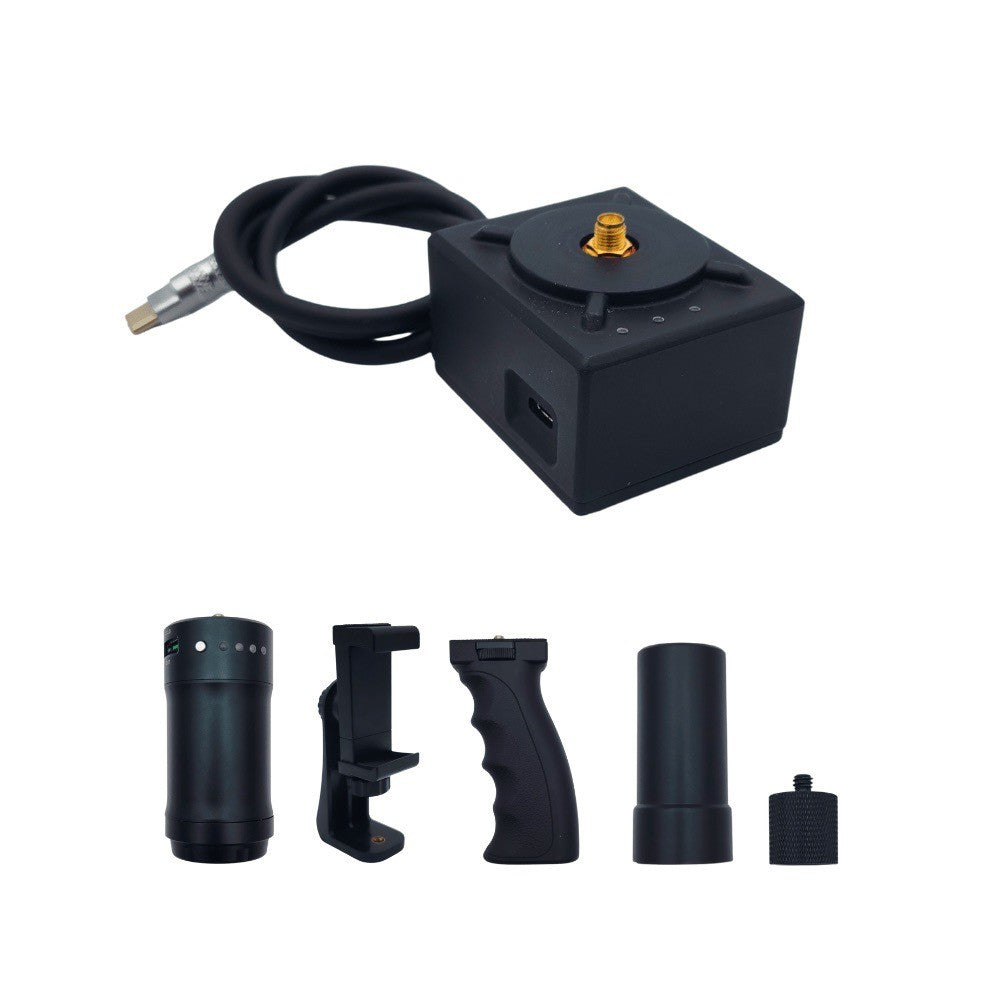

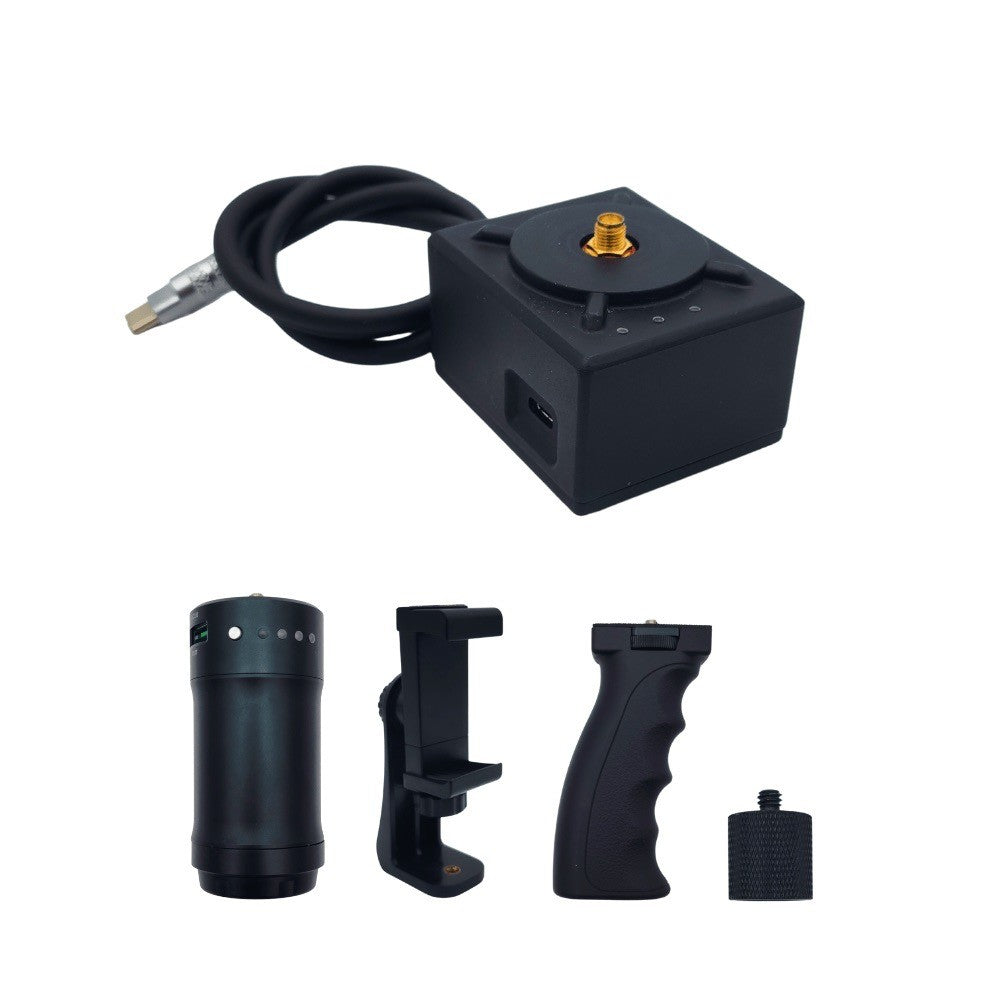

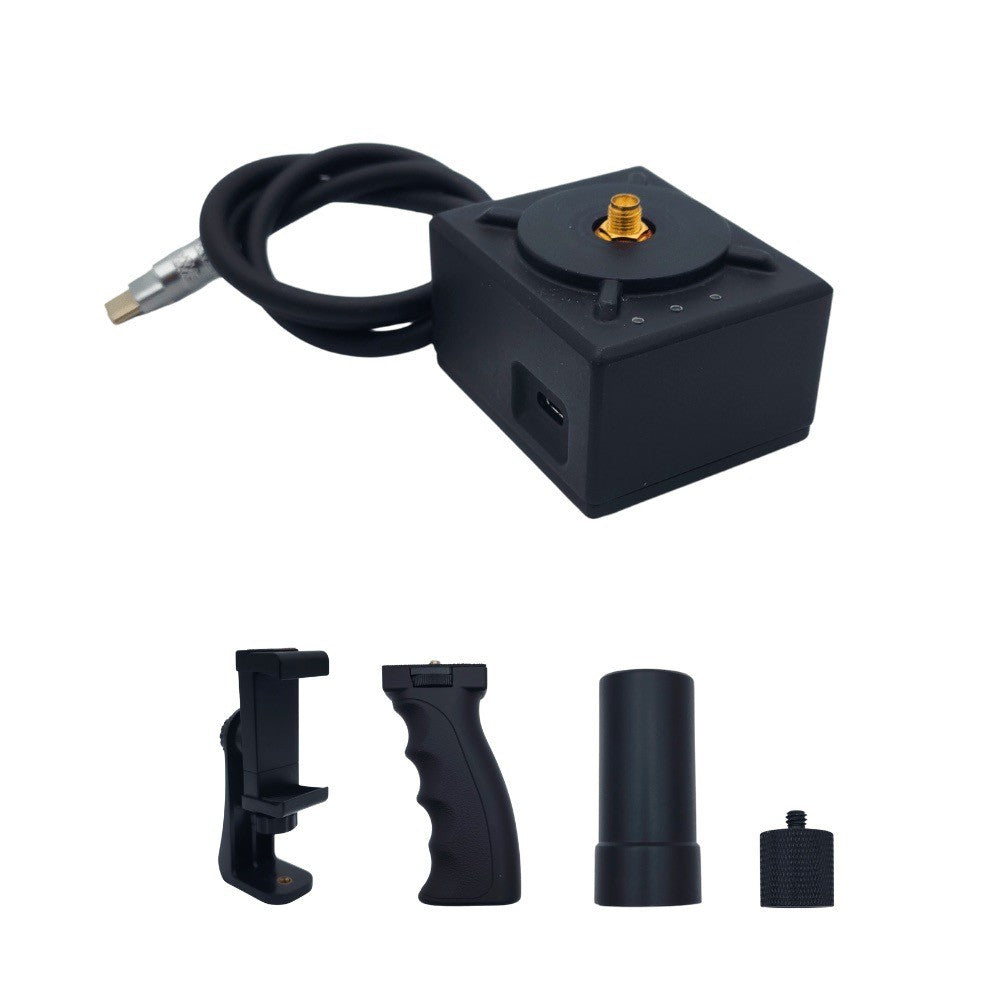

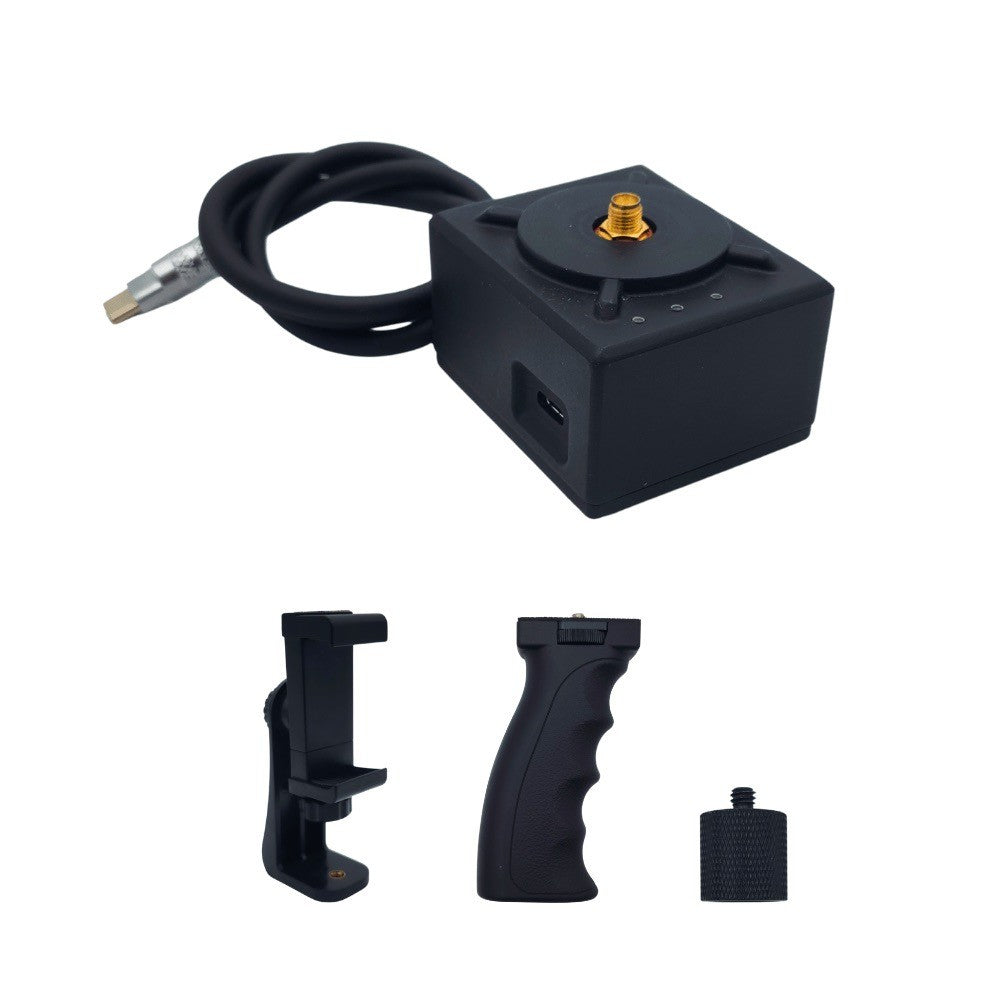

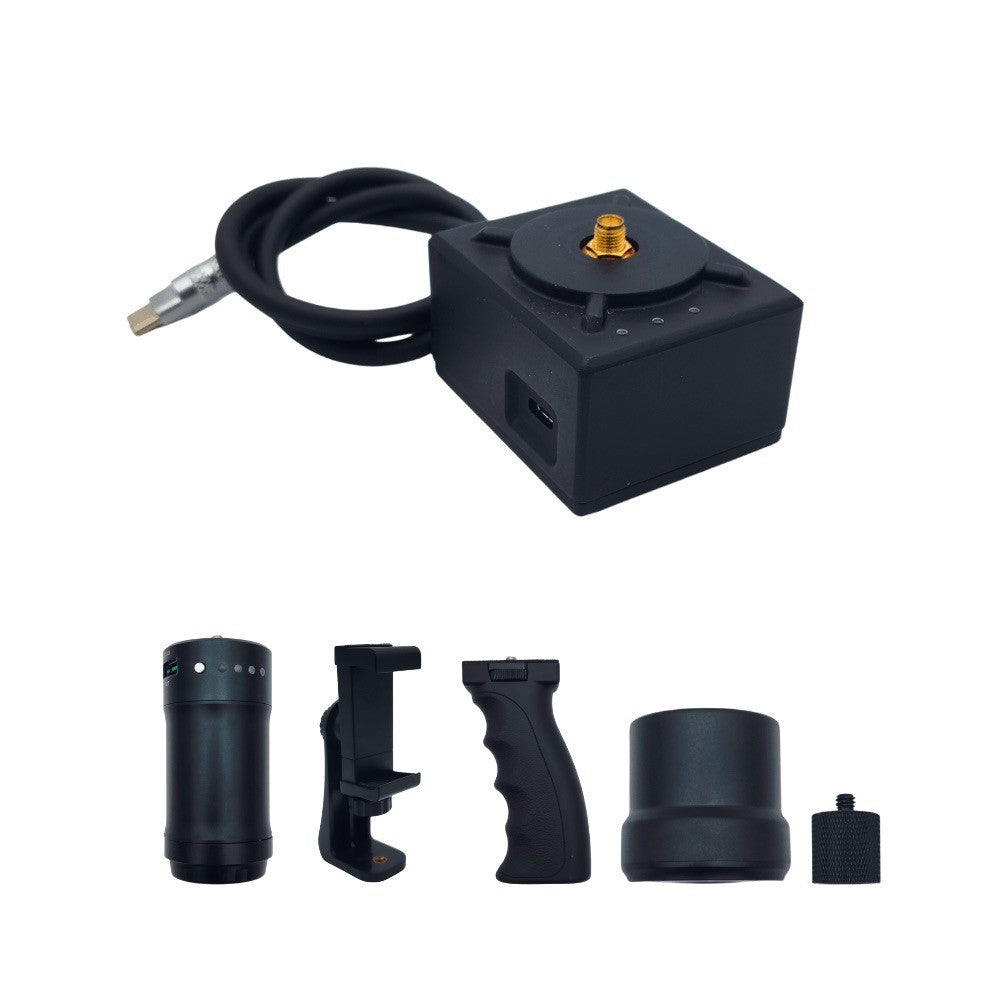

Key Features of the M20 RTK Handheld Surveyor Kit with Quick Charge Connectivity
- Smartphone holder
- Plastic enclosure with an integrated 180/90/30 cm USB-C cable for smartphone connection
- USB-C port for simultaneous charging of the connected smartphone via Power Delivery 3.0 protocol
- SMA connector for external antenna input
- Integrated low-noise 3.3 V voltage regulator
- Purple Power LED, green Time pulse LED, orange RTK LED
- Evaluation software: BY_Connect for PC
- Backup supercapacitor
- Mounting: 1/4" photographic tripod, 5/8" threaded survey pin
- Dimensions: 62 × 55 × 35 mm
- Weight: 105 g
- IP55 protection
- Fully assembled, tested, and ready for use
RTK Handheld Surveyor Kit with Quick Charge Connectivity

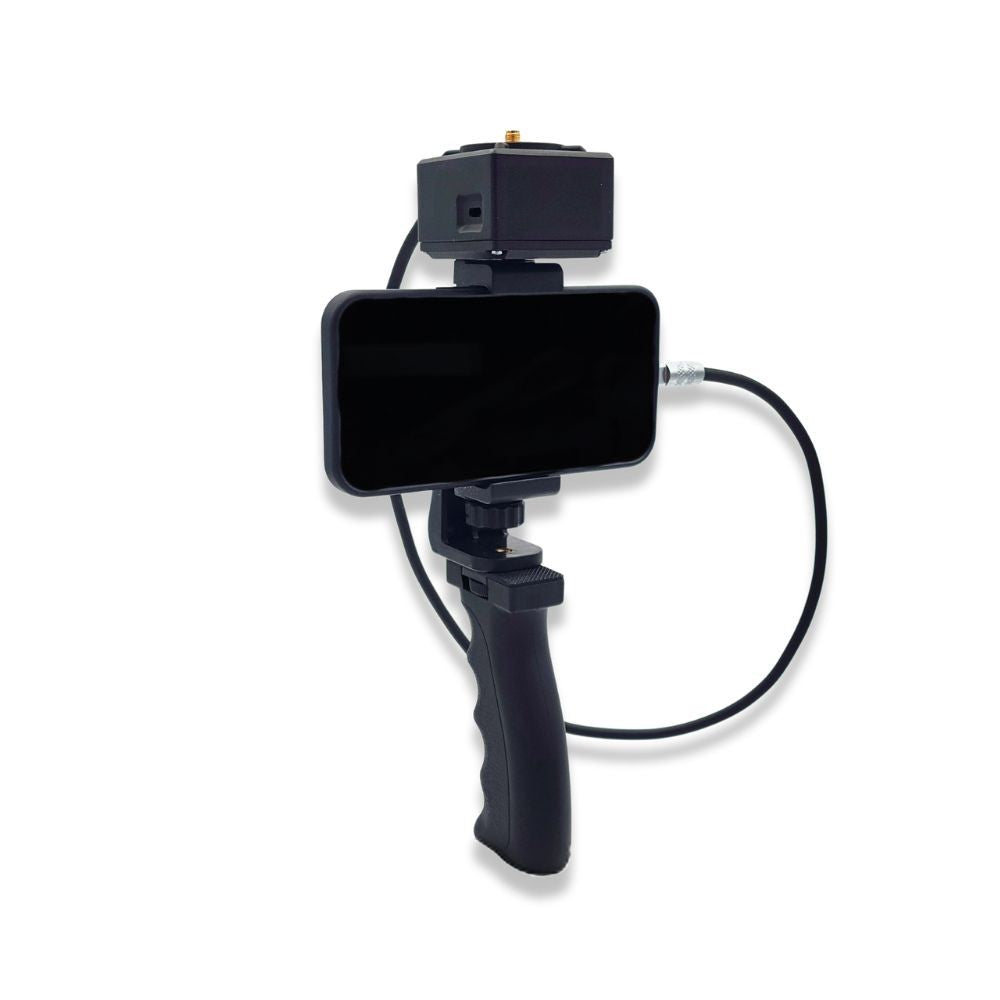

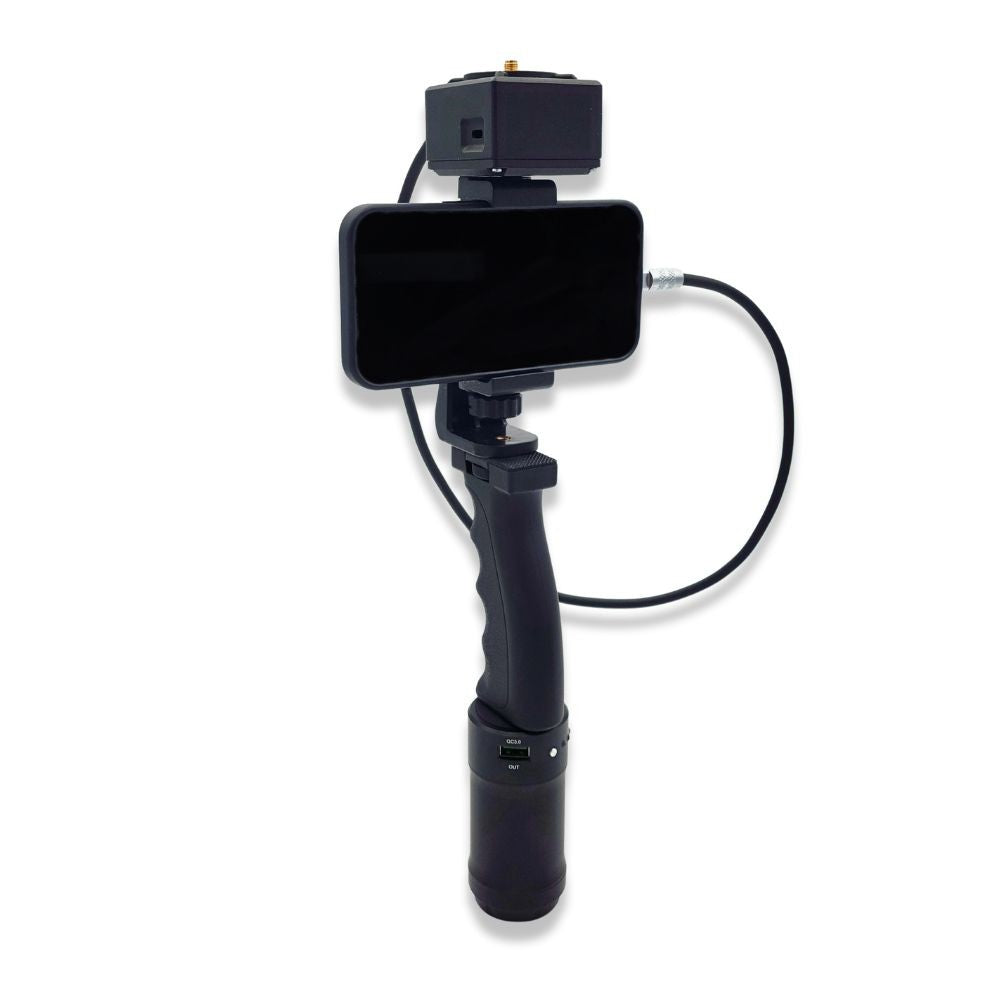

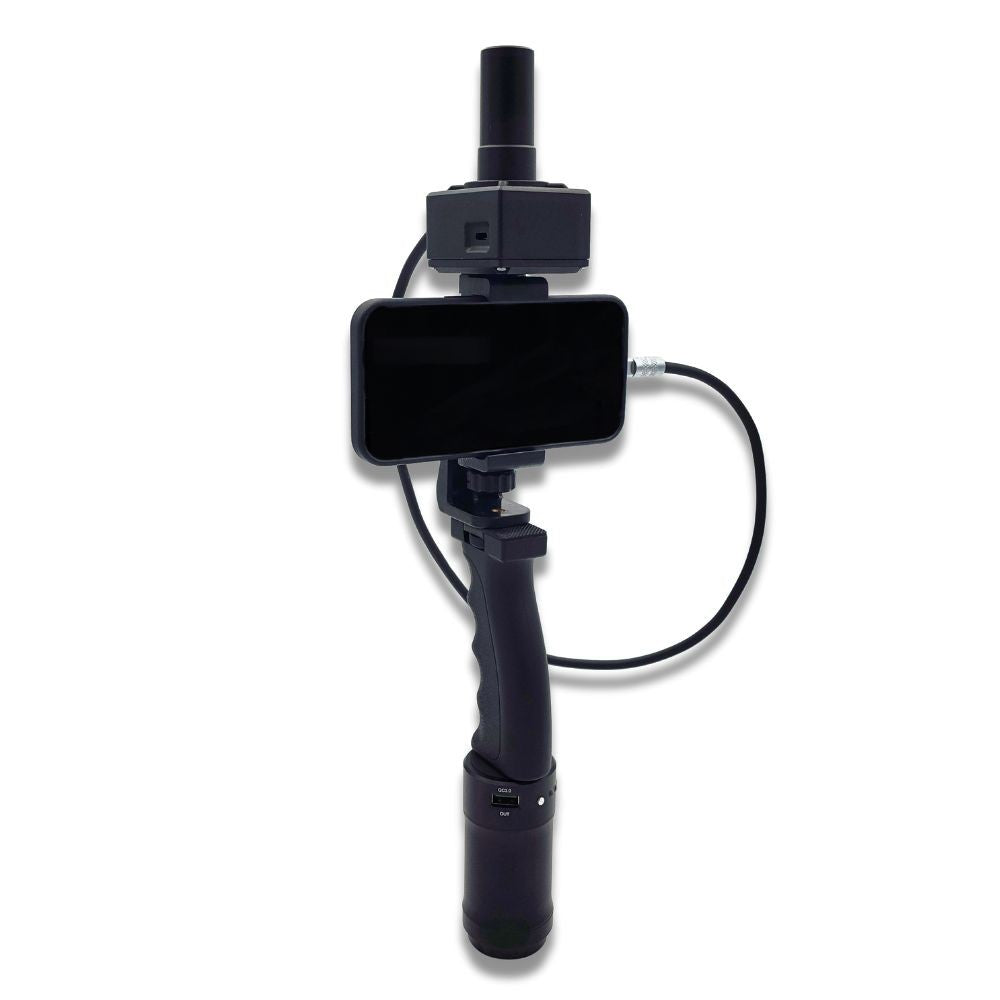

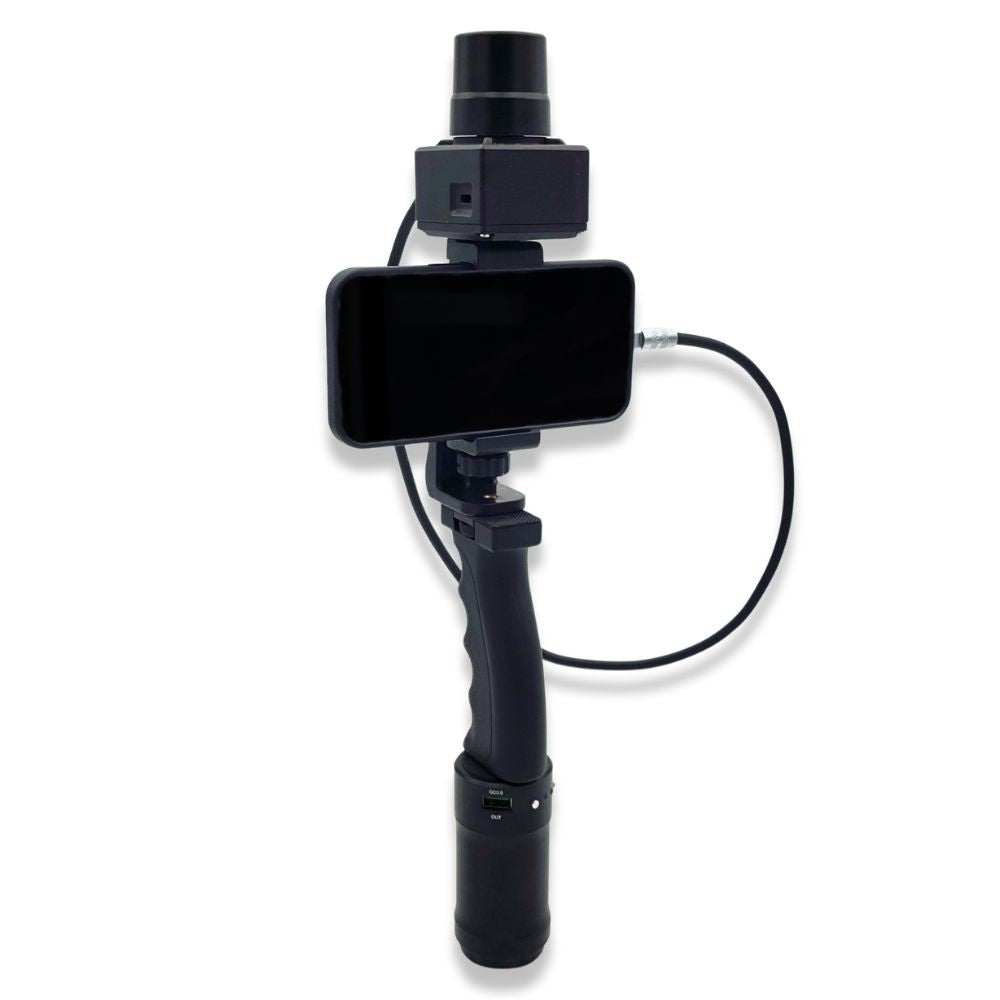

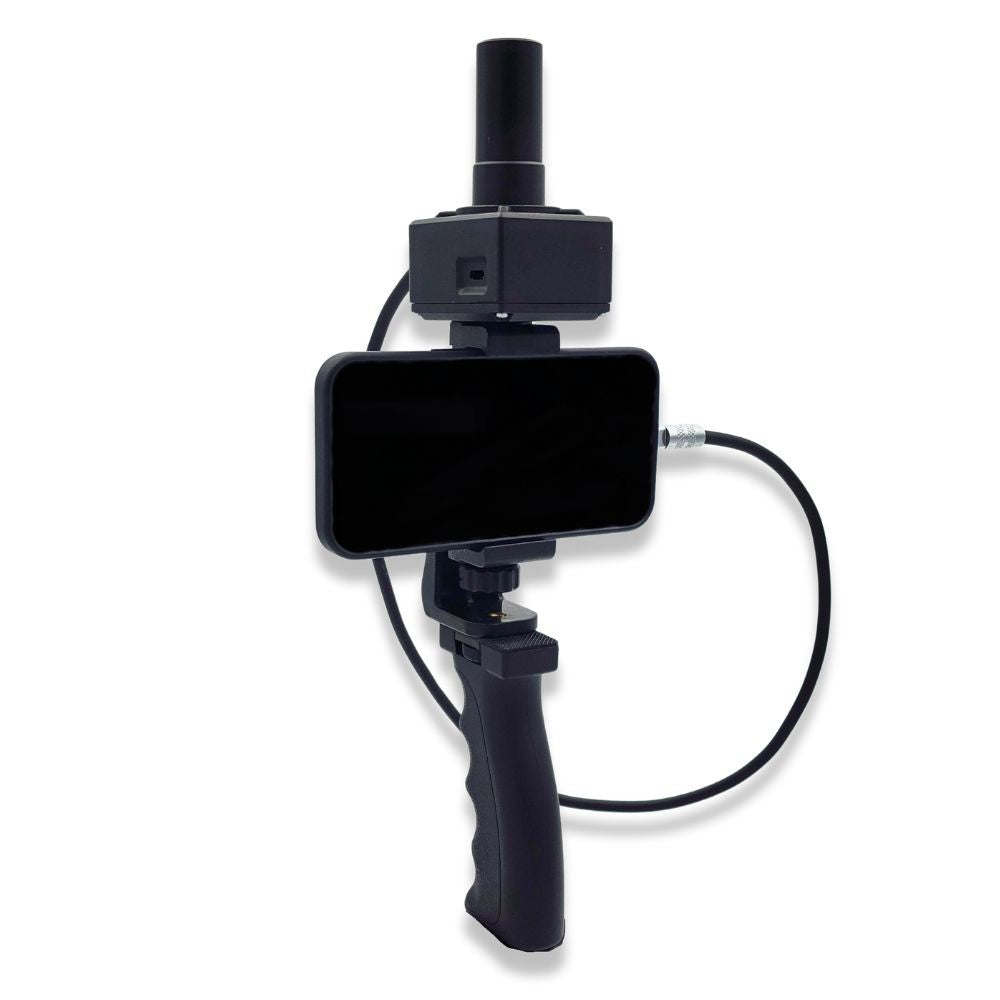

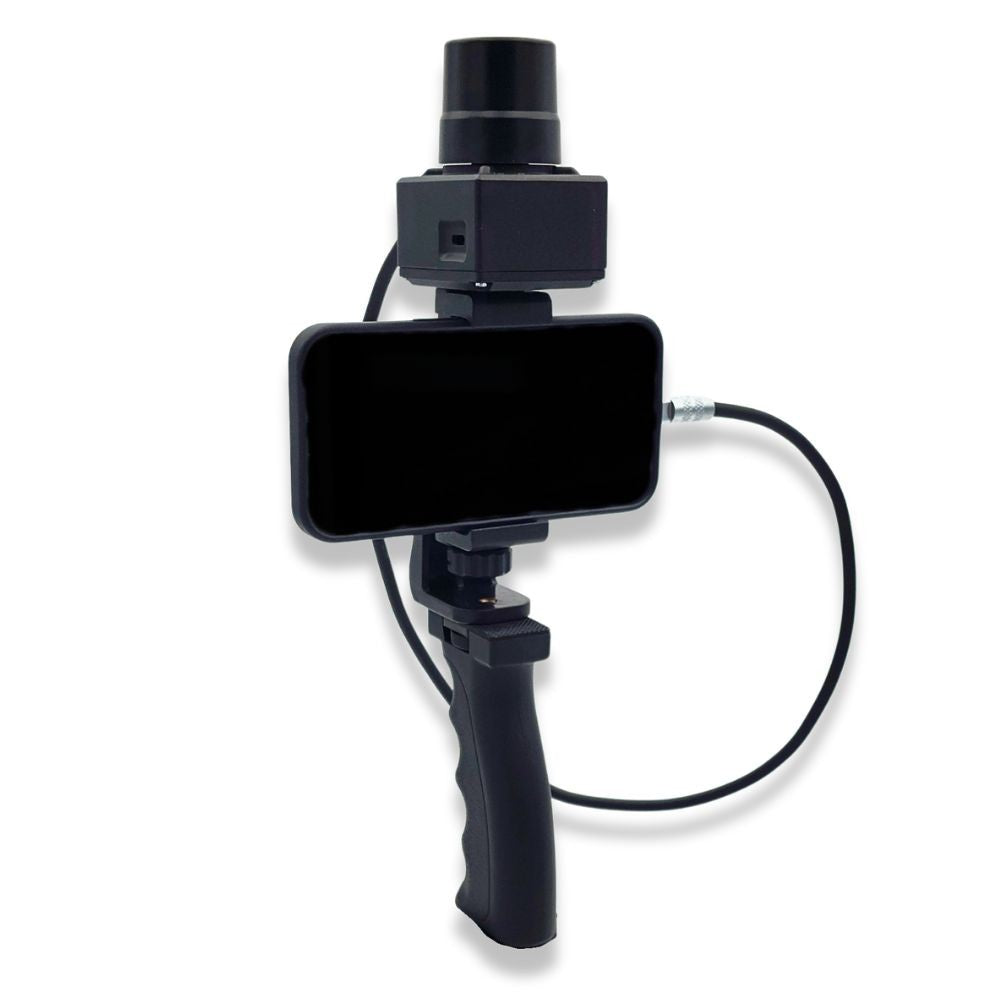

This RTK smart antenna is designed for handheld surveying in combination with a smartphone. Our solution differs from others by offering the ability to connect a PowerBank or another external power source for fast charging during operation.
The device we developed can be used in construction, landscape design, cartography (e.g., for OpenStreetMap), and other applications.
M20 All-constellation Multi-frequency High Precision RTK GNSS receiver
M20 is Bynav new-generation proprietary high-precision RTK positioning module based on the Alice 22nm high performance automotive SoC, designed on the basis of ISO26262 ASIL B functional safety. The module supports GPS L1C/A/L1C/L2/L5, BDS B1l/B2l/B3l/B1C/B2a/B2b, GLONASS G1/G2, Galileo E1/E5a/E5b/E6, QZSS L1/L2/L5/L6(CLAS), NavIC L5, SBAS L1C/A and L-band. The built-in anti-interference and anti-deception technologies enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as satellite signal interference and loss. Relying on the excellent performance, M20 is well suited for autonomous driving, lane-level navigation, drones and robots.
