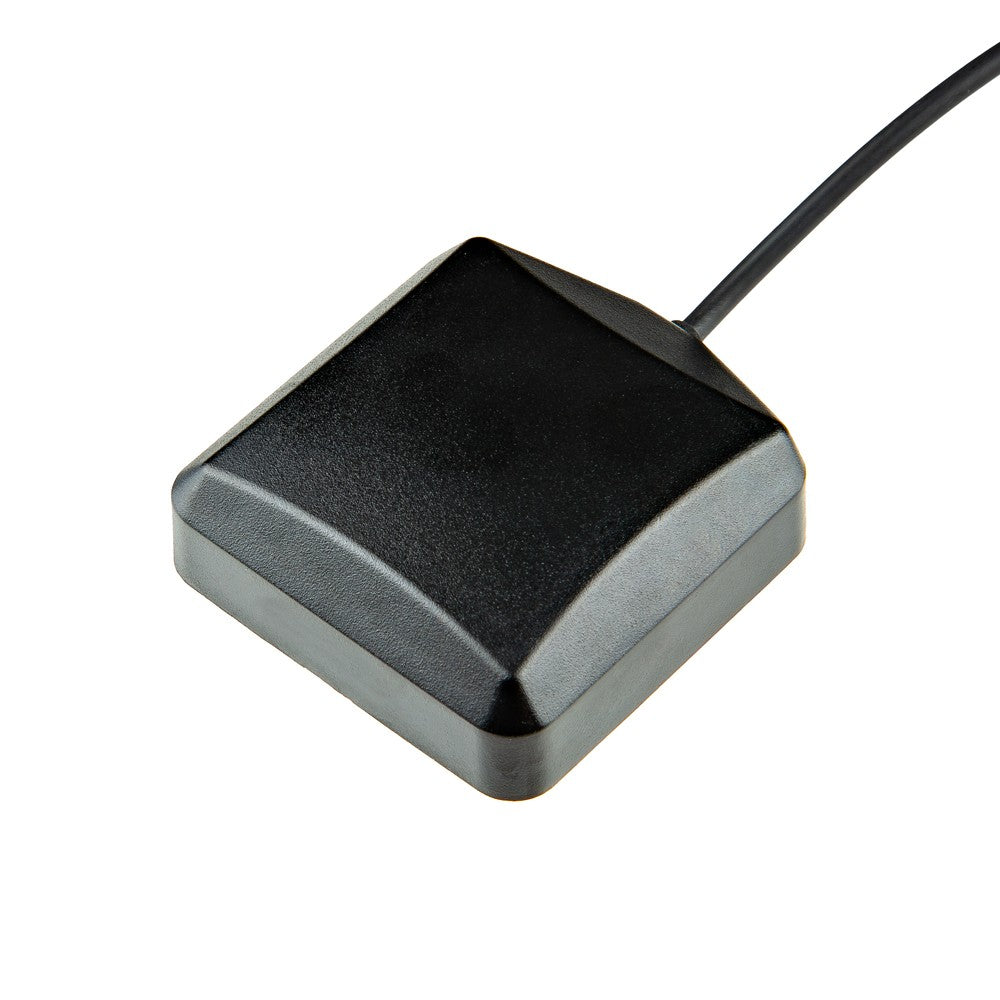

ANN-MB5 L1-L5 multi-band standard precision GNSS antenna description:
The u-blox ANN-MB5 multi-band (L1/L5/E5a/B2a/NavIC) active GNSS antenna is designed for the new generation of multi-frequency, multi-constellation standard precision GNSS technology, which can achieve the most accurate, reliable, and robust positioning even in challenging environments. ANN-MB5’s compact design, excellent price-to-performance ratio, and easy mounting features ensure a fast, easy, and reliable multi-band antenna solution for mass adoption. ANN-MB5 is a perfect match to the u-blox L1/L5 multi-band meter-level GNSS technology (e.g., F10 standard precision platform), providing customers with the ready-to-use, multi-frequency antenna they need to minimize the evaluation and design efforts, and speed up time-to-market.
Available in stock (117)
Couldn't load pickup availability
Product Features
Product Features
Highlights:
- L1-L5 multi-band active GNSS antenna for mass-market applications
- Supports GPS, GLONASS, Galileo, and BeiDou for maximum position availability
- Enables fast time-to-market
- Versatile mounting options to meet diverse installation needs
Signal Received:
- GPS L1//L5
- GLONASS G1
- GALILEO E1/E5a
- BDS B1I/B1C/B2a
- SBAS L1/L5
- QZSS L1/L5
Amplifier characteristics
- LNA Gain: 15 ± 3 dB
- Noise figure Max: 2.0 dB
- Axial Ratio: 3.2 dB max. @Zenith
- Max. Output VSWR: 2.0
- Polarization: RHCP
- Voltage range: 3 - 5 V
- Typ. current: 17 mA
Mechanical data
- Weight 104 g (typ. including cable)
- Size 49.2 x 46.2 x 16 mm

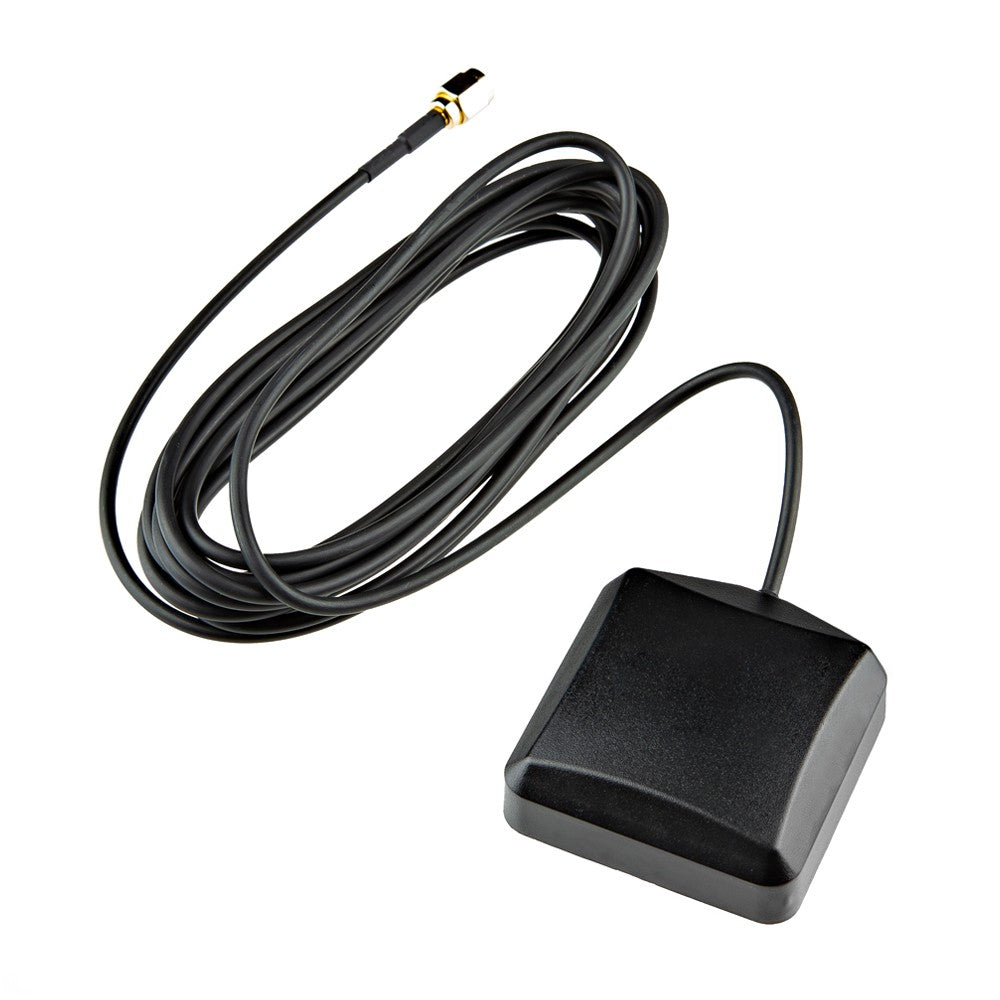

- Cable 3 m RG174 standard
- Connector SMA
- Mounting Magnetic base
- Housing color Black
Certifications and approvals
CE approval Based on Radio Equipment Directive (RED) 2014/53/EU and the Restriction of the use of certain Hazardous Substances Directive (RoHS) 2011/65/EU and 2015/863/EU
Environmental data
- Operating temperature –40 °C to +85 °C
- Storage temperature –40° C to +85 °C
- Waterproof IP 67
