AllBand+ 28dB RTK antenna
Ideal for precision positioning and RTK surveying systems, this antenna provides excellent circular polarized signal reception, great multi-path and out-of-band signal rejection. The Antenna features a precision tuned, four star full frequency helical antenna. The signals from the helical antenna combined in a hybrid combiner, amplified in a wide-band Low Noise Amplifier, then band-split for narrow filtering in each band and further amplified prior to recombination at the output. The Antenna offers excellent axial ratio and a tightly grouped phase center variation. The antenna features an integrated cable with an SMA connector. It can be mounted using double-sided adhesive tape or a magnetic plate, both included in the package.
Available in stock (198)
Couldn't load pickup availability
Product Features
Product Features
Signal Received:
- GPS L1/L2/L5
- GLONASS G1/G2
- GALILEO E1/E5a/E5b/E6
- BDS B1I/B2I/B3I/B1C/B2a/B2b
- SBAS L1/L5
- QZSS L1/L2/L5/L6
- IRNSS I5
- L-band
Antenna features:
- Low Noise Amplifier (LNA)
- Axial ratio: ≤ 3 dB typ.
- Tight Phase Center Variation (PCV)
- High Gain: 28 dB typ.
- Low current: 15 mA typ.
- Invariant performance from: +3 to 16VDC

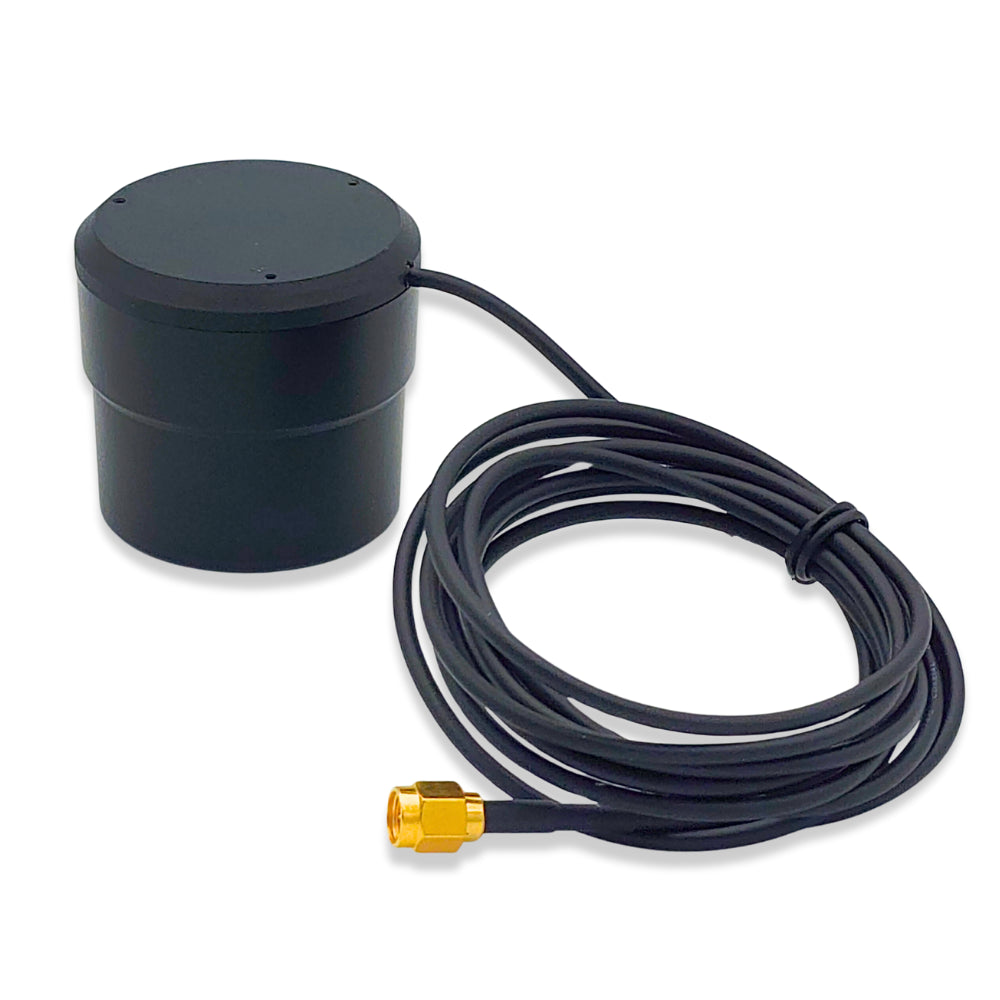

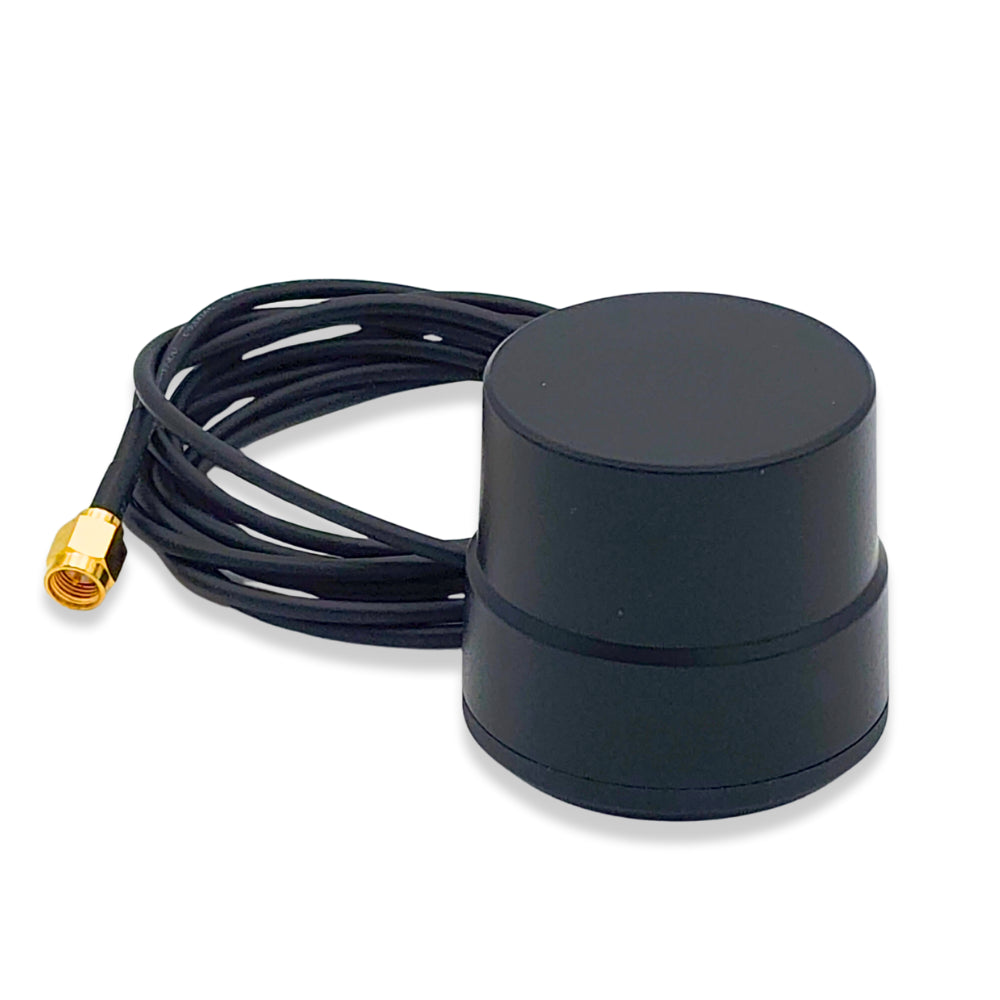

- Integrated cable with an SMA connector
Typical Applications Include:
- Autonomous Driving
- Precision Positioning for Robotics
- Precision Agriculture
- Inventory Management & Container tracking
- Telematics & Asset Tracking
- Timing Accuracy Synchronization
- UAV
Phy sical Characteristics:
- Protection class: IP64
- Operating Temperature Range: -40 +85 ℃
- Dimensions: Ø50x46 mm
- Weight: 30 gr.
- RoHS & Reach Compliant

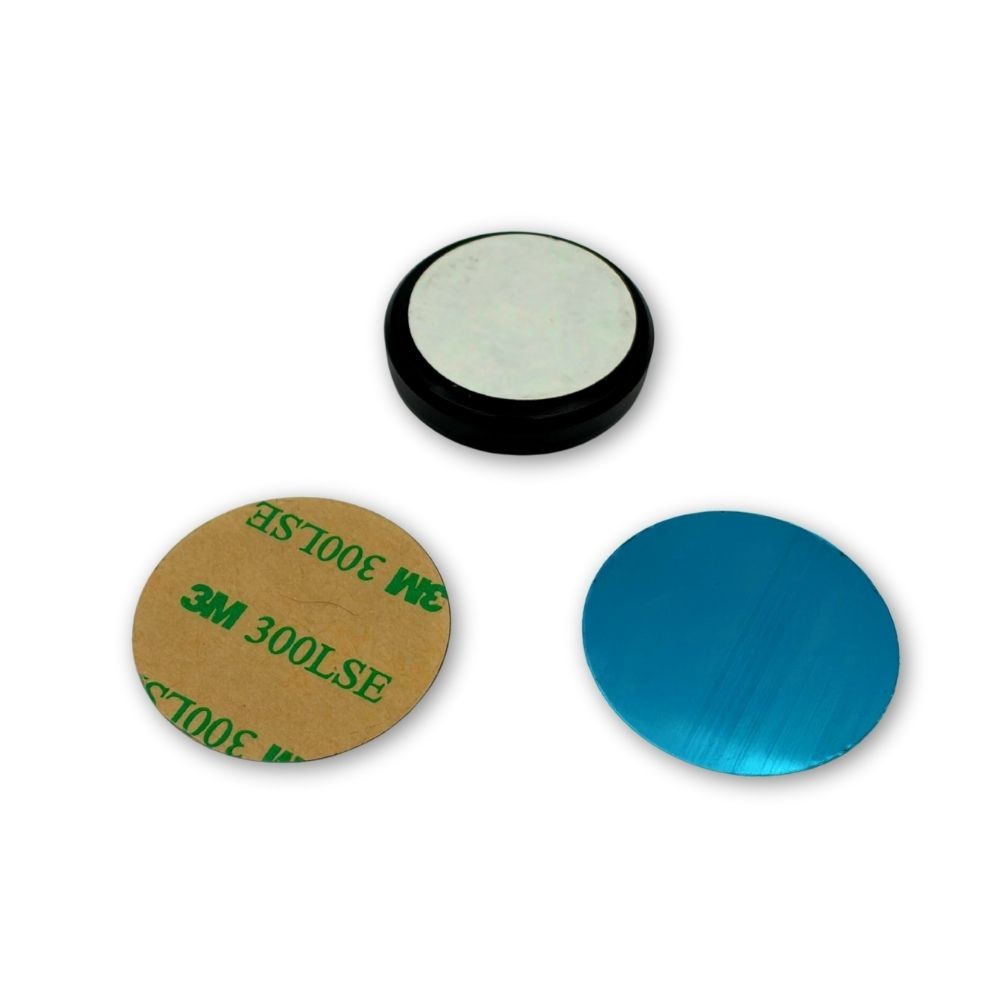

- Mounting: double-sided adhesive tape or a magnetic plate
This MultiBand antenna is the latest addition to an ongoing product road map of high precision antennas. For RTK applications when used on the base and/or the rover, the MultiBand antenna can achieve genuine cm-level accuracy.
