UM980 Mic RTK GNSS receiver
UM980 Mic RTK GNSS receiver
Tax excluded
Mic Form Factor features:
- Allows you to reuse expensive LGA component, if something goes wrong
- Takes care of all the RF complexity so you only need to connect antenna directly to the module
- Solder by hand UM980 LGA module
- Upgrade you existing design of NEO-F10N Micro, ZED-F9P Micro or Septentrio mosaic Micro module.
UM980 All-constellation Multi-frequency High Precision RTK GNSS receiver.
UM980 is Unicore’s new-generation proprietary high-precision RTK positioning module based on the Nebulas IV SoC which integrates RF, baseband and high-precision algorithm. The module supports GPS L1C/A/L1C/L2P(Y)/L2C/L5, BDS B1I/B2I/B3I/B1C/B2a/B2b, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, QZSS L1C/A/L1C/L2C/L5, NavIC L5 and SBAS L1C/A. The built-in multi-frequency anti-jamming technology enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as city blocks and tree shades. Relying on the excellent performance, UM980 is well suited for high-precision navigation and positioning applications such as precision agriculture, surveying and mapping and so on.
Available in stock (174)
Couldn't load pickup availability
Product Features
Product Features

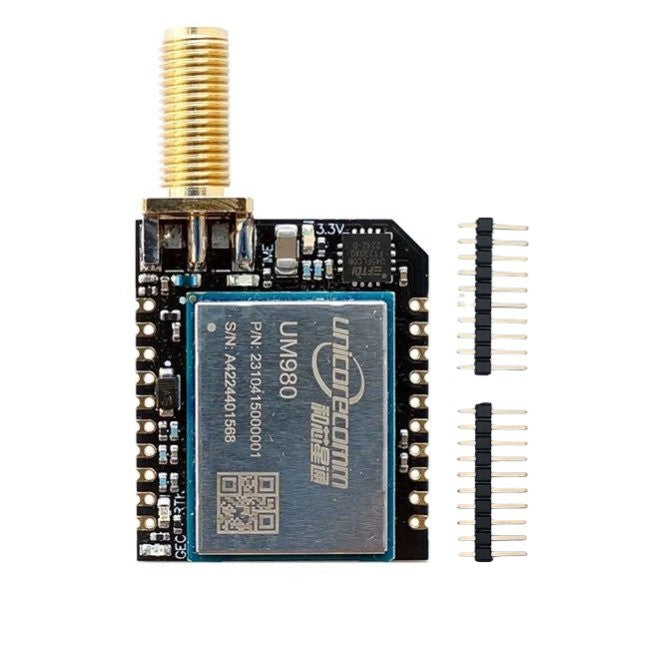

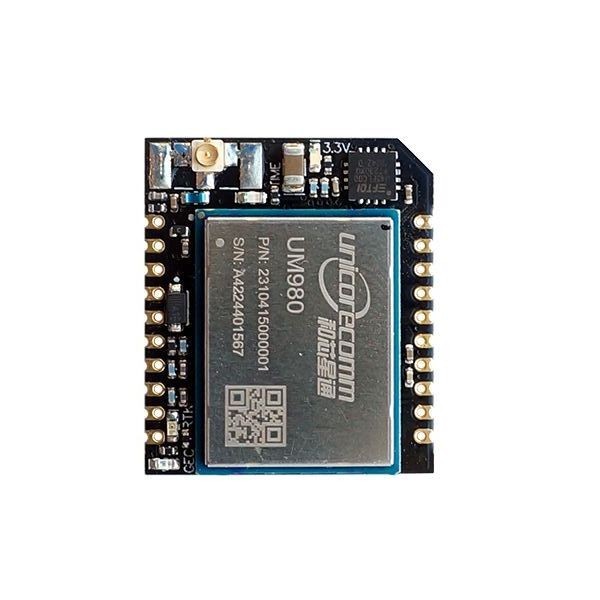

- Antenna input with SMA or IPEX connector

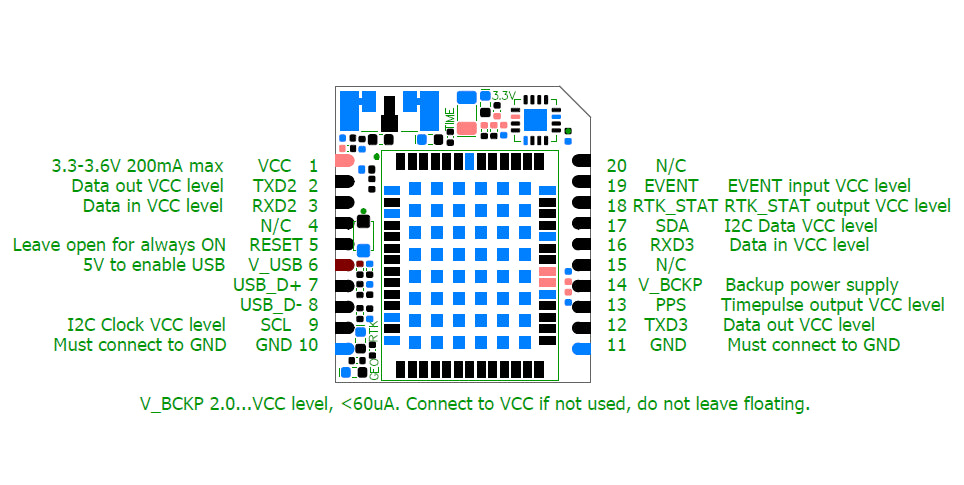

- USB, I2C* and 2 UART (Tx, Rx) interface
- Purple Power LED, green Time pulse LED, red PVT LED, orange RTK LED
- Extensive visualization and evaluation features
- Dimensions 24.5x33.5 mm
- Weight: 10 gr.
- Fully assembled and ready to use
- Compatible with AgOpenGPS TeensyModules
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| Mic Form Factor features:
UM980 All-constellation Multi-frequency High Precision RTK GNSS receiver. UM980 is Unicore’s new-generation proprietary high-precision RTK positioning module based on the Nebulas IV SoC which integrates RF, baseband and high-precision algorithm. The module supports GPS L1C/A/L1C/L2P(Y)/L2C/L5, BDS B1I/B2I/B3I/B1C/B2a/B2b, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, QZSS L1C/A/L1C/L2C/L5, NavIC L5 and SBAS L1C/A. The built-in multi-frequency anti-jamming technology enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as city blocks and tree shades. Relying on the excellent performance, UM980 is well suited for high-precision navigation and positioning applications such as precision agriculture, surveying and mapping and so on.
| Regular price
From $191.00
Sale price
From $191.00
Regular price
| ELTEHS |
Choose your option
UM980 Mic RTK GNSS receiver
UM980 Mic RTK GNSS receiver
Tax excluded
Available in stock (174)
Mic Form Factor features:
- Allows you to reuse expensive LGA component, if something goes wrong
- Takes care of all the RF complexity so you only need to connect antenna directly to the module
- Solder by hand UM980 LGA module
- Upgrade you existing design of NEO-F10N Micro, ZED-F9P Micro or Septentrio mosaic Micro module.
UM980 All-constellation Multi-frequency High Precision RTK GNSS receiver.
UM980 is Unicore’s new-generation proprietary high-precision RTK positioning module based on the Nebulas IV SoC which integrates RF, baseband and high-precision algorithm. The module supports GPS L1C/A/L1C/L2P(Y)/L2C/L5, BDS B1I/B2I/B3I/B1C/B2a/B2b, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, QZSS L1C/A/L1C/L2C/L5, NavIC L5 and SBAS L1C/A. The built-in multi-frequency anti-jamming technology enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as city blocks and tree shades. Relying on the excellent performance, UM980 is well suited for high-precision navigation and positioning applications such as precision agriculture, surveying and mapping and so on.
- Antenna input with SMA or IPEX connector
- USB, I2C* and 2 UART (Tx, Rx) interface
- Purple Power LED, green Time pulse LED, red PVT LED, orange RTK LED
- Extensive visualization and evaluation features
- Dimensions 24.5x33.5 mm
- Weight: 10 gr.
- Fully assembled and ready to use
- Compatible with AgOpenGPS TeensyModules
