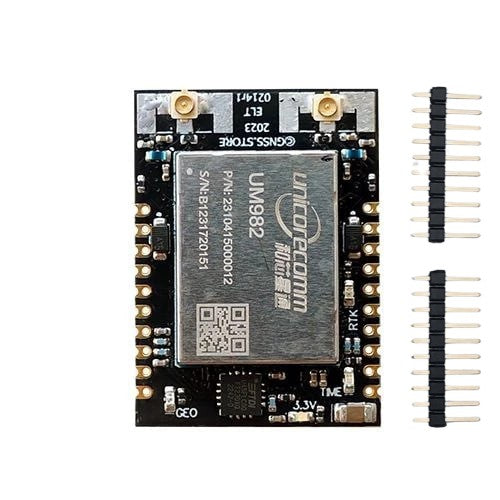

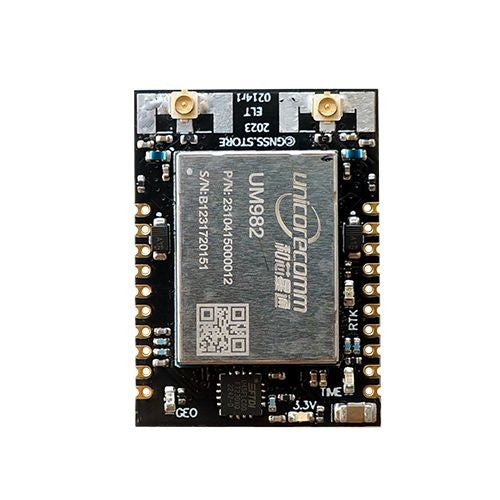

UM982 Mic Dual Channel RTK GNSS receiver
UM982 Mic Dual Channel RTK GNSS receiver
Tax excluded
Mic Form Factor features:
- Allows you to reuse expensive LGA component, if something goes wrong
- Takes care of all the RF complexity so you only need to connect antenna directly to the module
- Solder by hand UM982 LGA module
- Upgrade you existing design of NEO-F10N Micro, ZED-F9P Micro or Septentrio mosaic Micro module.
UM982 Mic Dual channel All-constellation Multi-frequency High precision RTK GNSS receiver.
UM982 is Unicore’s new-generation proprietary high-precision RTK positioning and heading module based on the Nebulas IV SoC which integrates RF, baseband and high-precision algorithm. Its main and secondary antenna inputs can simultaneously track multiple frequencies of all GNSS systems, and the module can perform on-chip RTK positioning and dual-antenna heading calculations. The module supports GPS L1C/A/L2P(Y)/L2C/L5, BDS B1I/B2I/B3I, GLONASS G1/G2, Galileo E1/E5a/E5b and QZSS L1/L2/L5. The built-in multi-frequency anti-jamming technology enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as city blocks and tree shades. Featuring the extraordinary positioning performance and reliability, UM982 is a perfect choice for high-precision navigation and positioning applications, such as UAV, autonomous machine and precision agriculture. Board can be used for a Base, Rover or Heading operation mode.
UM982 supported by PX4 Autopilot, Ardupilot, AgOpenGPS and other software, supporting GPS for Yaw aka Moving Baseline.
Available in stock (140)
Couldn't load pickup availability
Product Features
Product Features

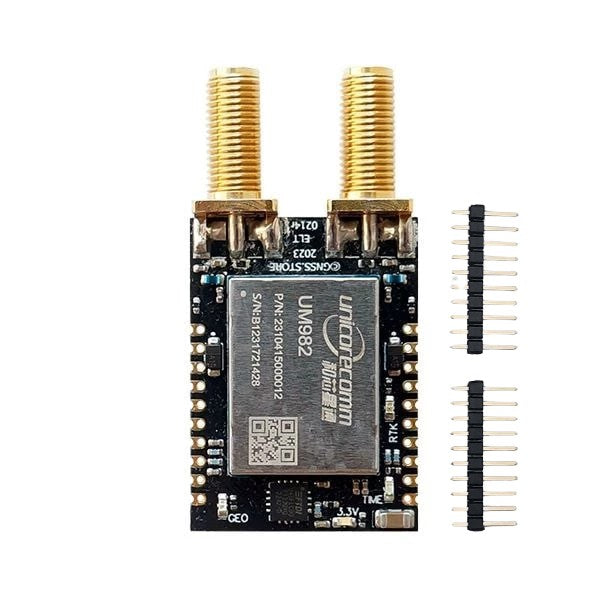

- Two antenna inputs with SMA or IPEX connectors

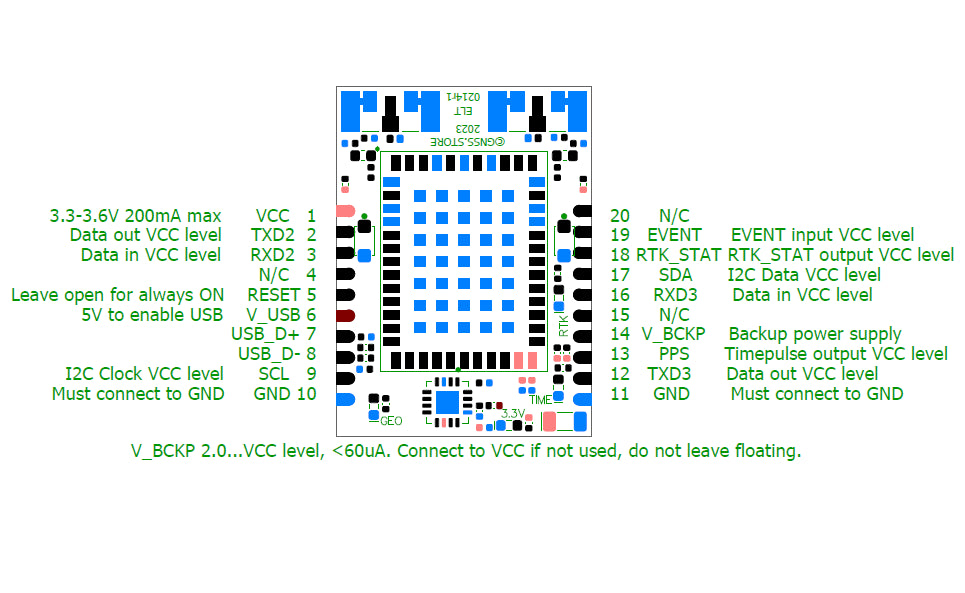

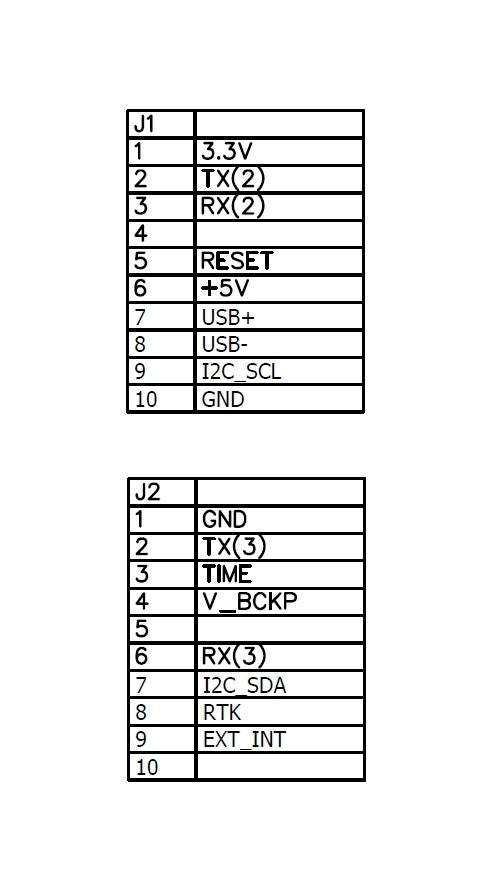

- USB, I2C* and 2 UART (Tx, Rx) interface
- Purple Power LED, green Time pulse LED, red PVT LED, orange RTK LED
- Extensive visualization and evaluation features
- Dimensions 24.5x33.5 mm
- Weight: 10 gr.
- Fully assembled and ready to use
- Compatible with AgOpenGPS TeensyModules
UM982 Module Specifications
