Active Multiband GNSS MultiPatch Antenna description
Ideal for precision positioning and RTK surveying systems, this antenna provides excellent circular polarized signal reception, great multi-path and out-of-band signal rejection. The Antenna features a precision tuned, circular dual-feed, stacked patch element. The signals from the two orthogonal feeds are combined in a hybrid combiner, amplified in a wide-band Low Noise Amplifier, then band-split for narrow filtering in each band and further amplified prior to recombination at the output. The Antenna offers excellent axial ratio and a tightly grouped phase center variation. The Antenna is housed IP67 in screw mount industrial grade weather-proof enclosure, available with 5m cable.
Out of stock
Couldn't load pickup availability
Product Features
Product Features
Signal Received:
- GPS L1/L2/L5
- GLONASS G1/G2/G3
- GALILEO E1/E5a/E5b
- BDS B1I/B2I/B1C/B2a/B2b
- SBAS L1/L5
- QZSS L1/L2/L5
- IRNSS I5
Active Multiband GNSS MultiPatch Antenna Features:
- Low Noise Amplifier (LNA)
- Axial Ratio: ≤3 dB typ.
- Tight Phase Center Variation (PCV)
- High Gain: 33 dB typ.
- Low current: 45 mA typ.
- Invariant performance from: +3.3 to 12VDC
Typical Applications Include:
- Autonomous Driving
- Precision Positioning for Robotics
- Precision Agriculture
- Inventory Management & Container tracking
- Telematics & Asset Tracking
- Timing Accuracy Synchronization

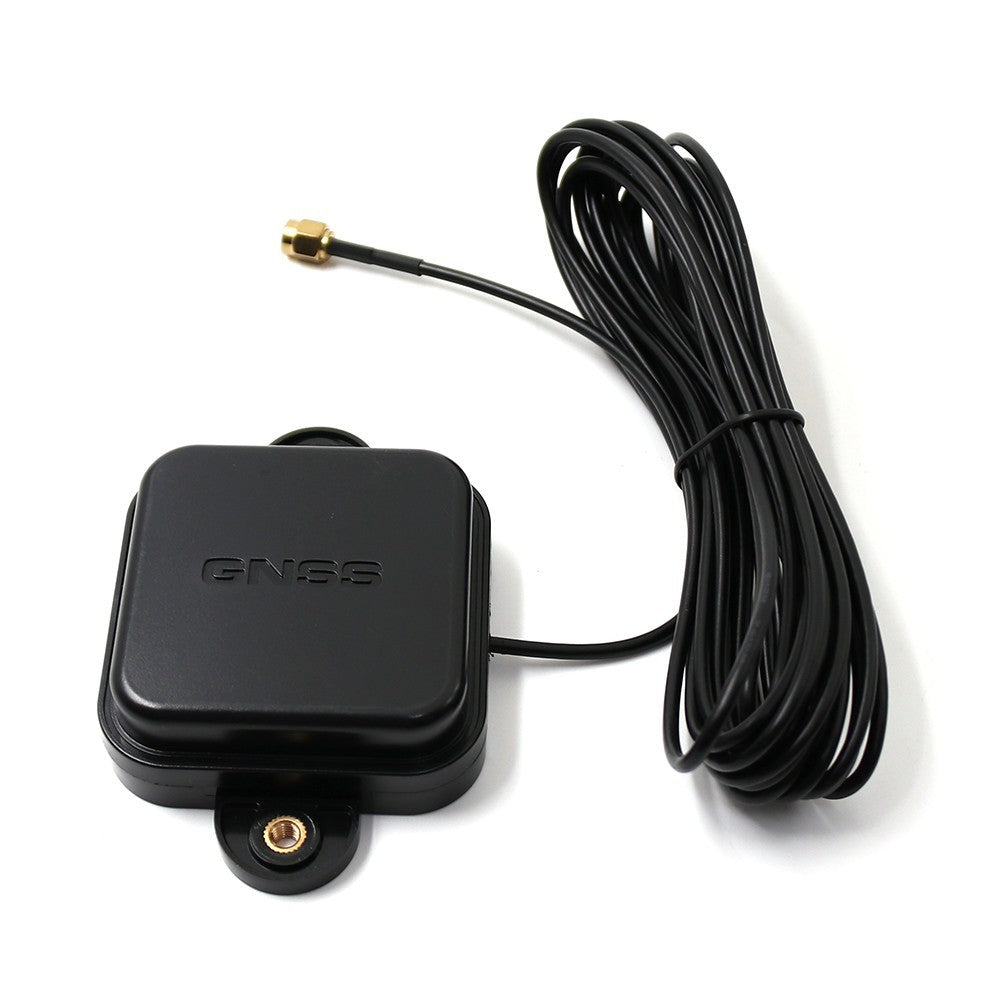

Mechanical data:
- Weight: 235 gr.
- Dimensions: 100 x 68 x 24 mm
- SMA cable connector
- Cable RG 174 length: 5 meter
- Housing color: black

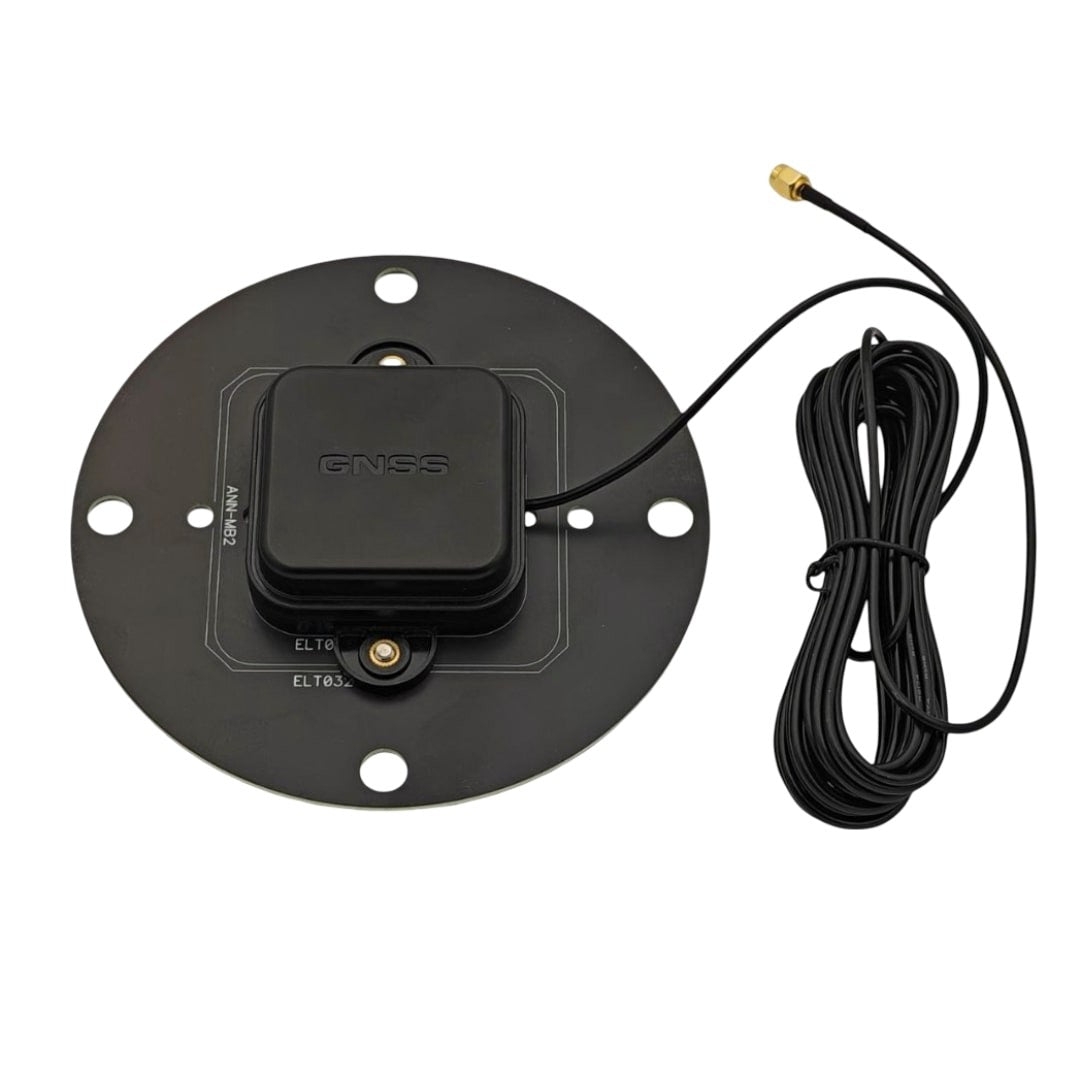

- Mounting: magnet mount, double sided 3M tape, screw mount 2 x M5 distance 82 mm
This MultiBand antenna is the latest addition to an ongoing product road map of high precision antennas. For RTK applications when used on the base and/or the rover, the MultiBand antenna can achieve genuine cm-level accuracy.
