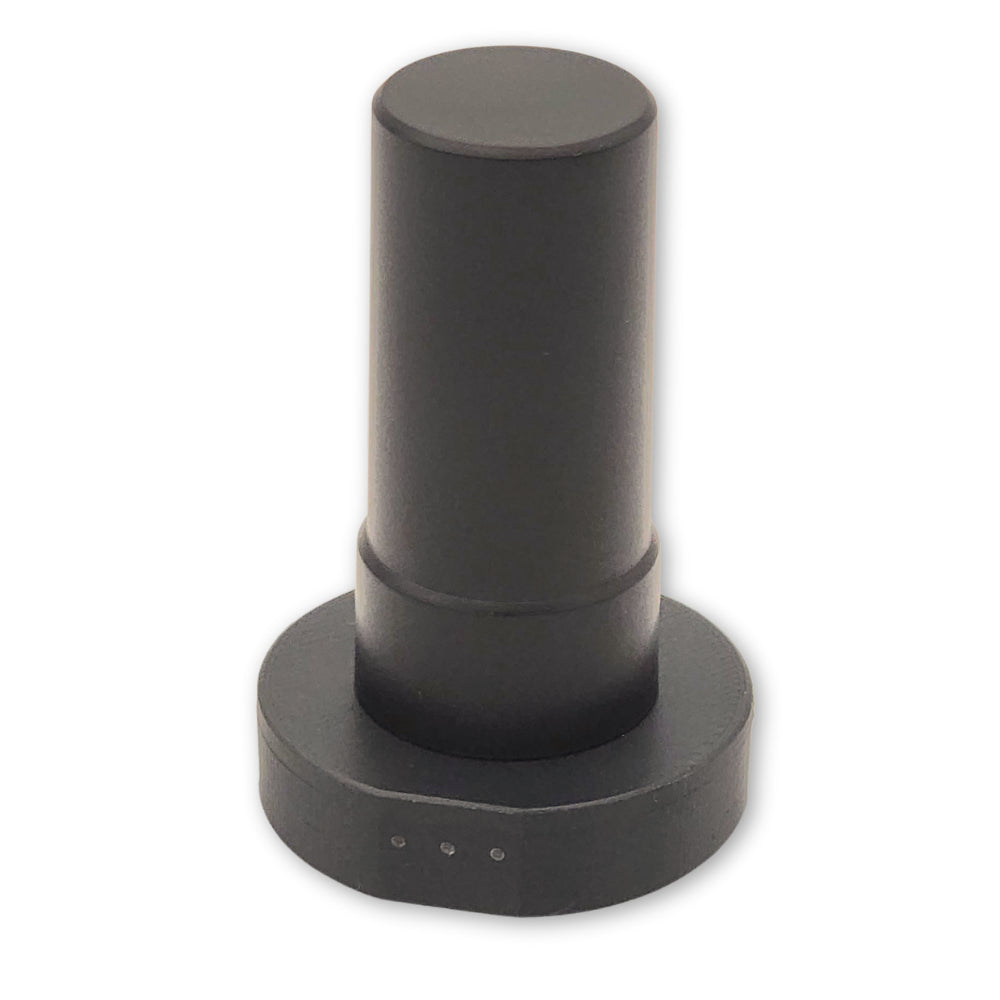

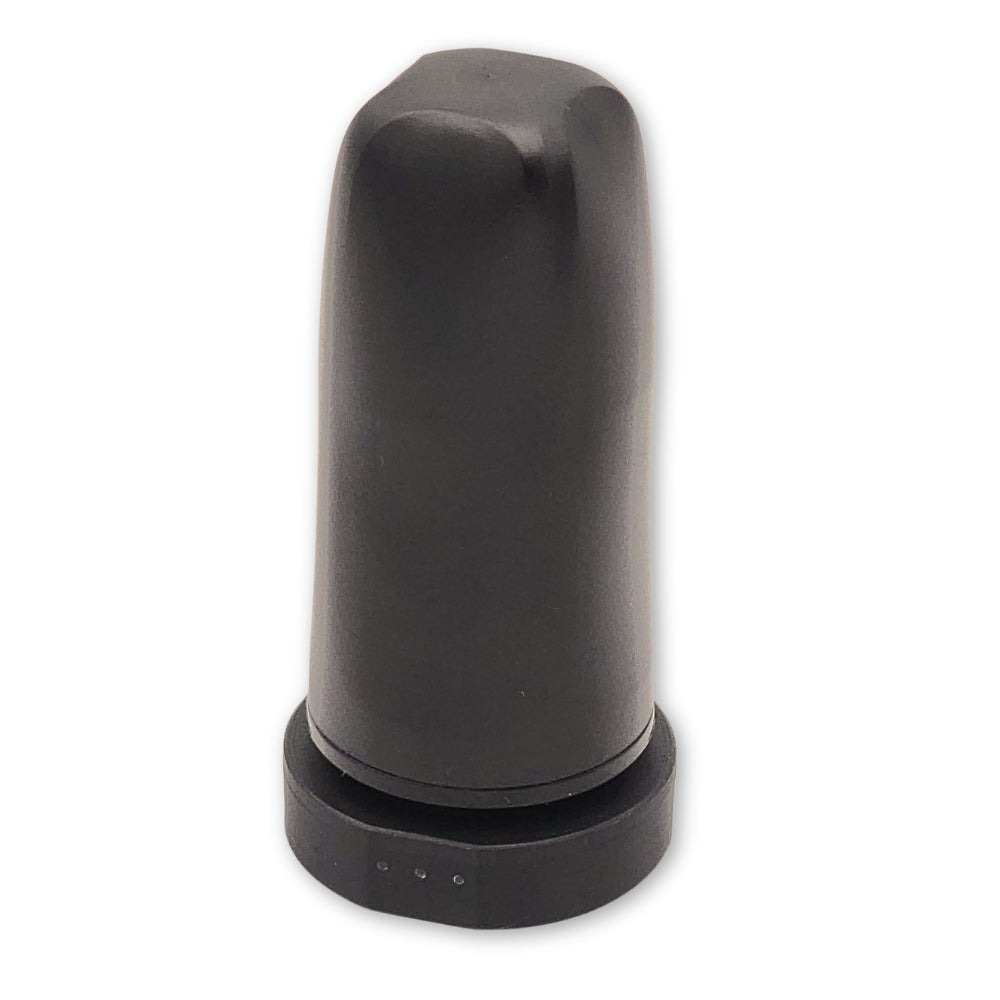

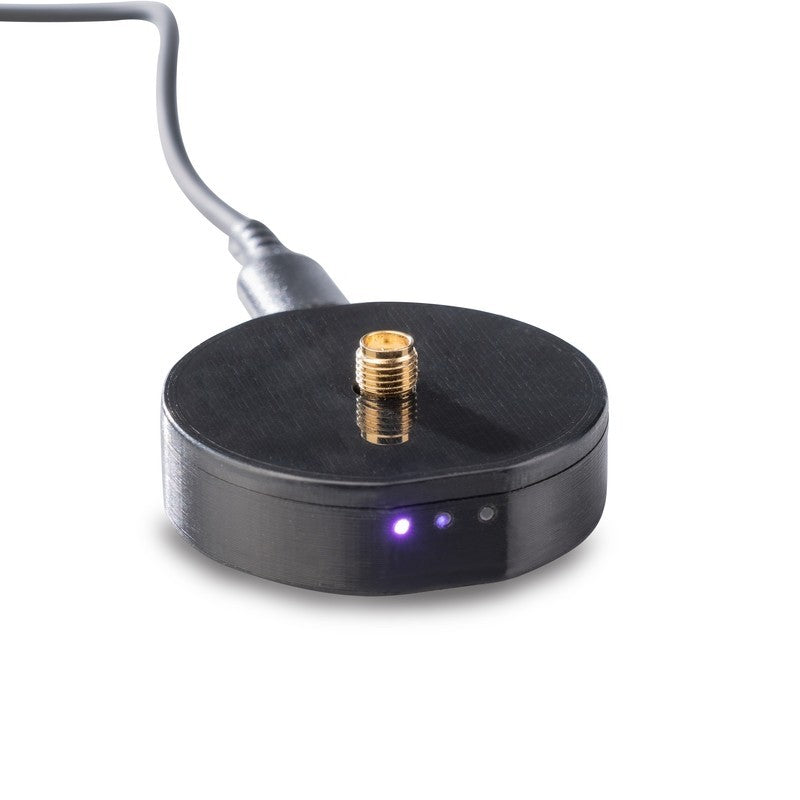

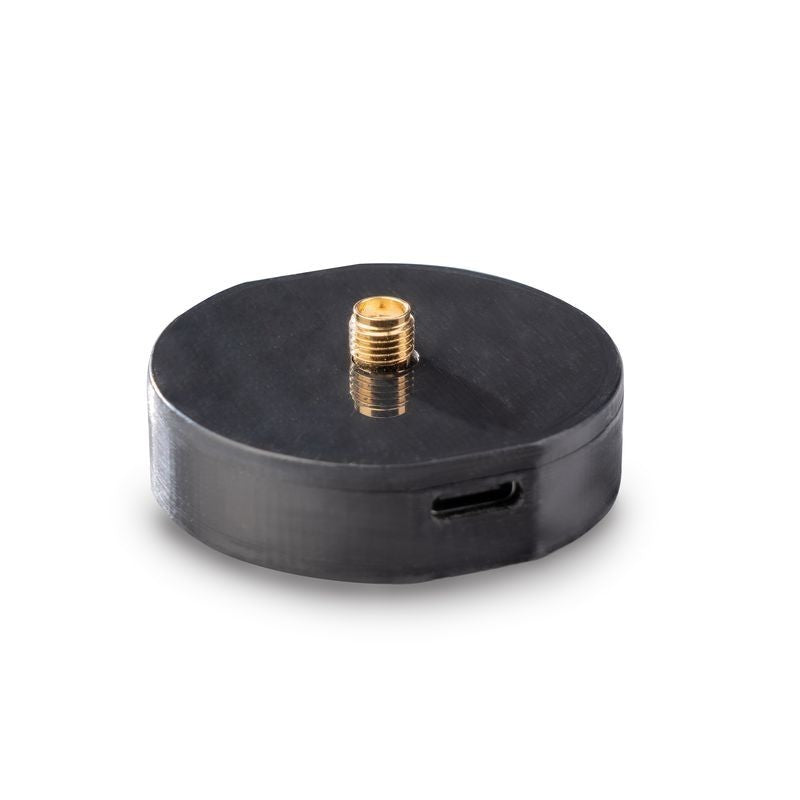

ZED-F9P RTK GNSS Smart Antenna module with USB-C, RFI protection and SMA Helix antenna. Black plastic case.

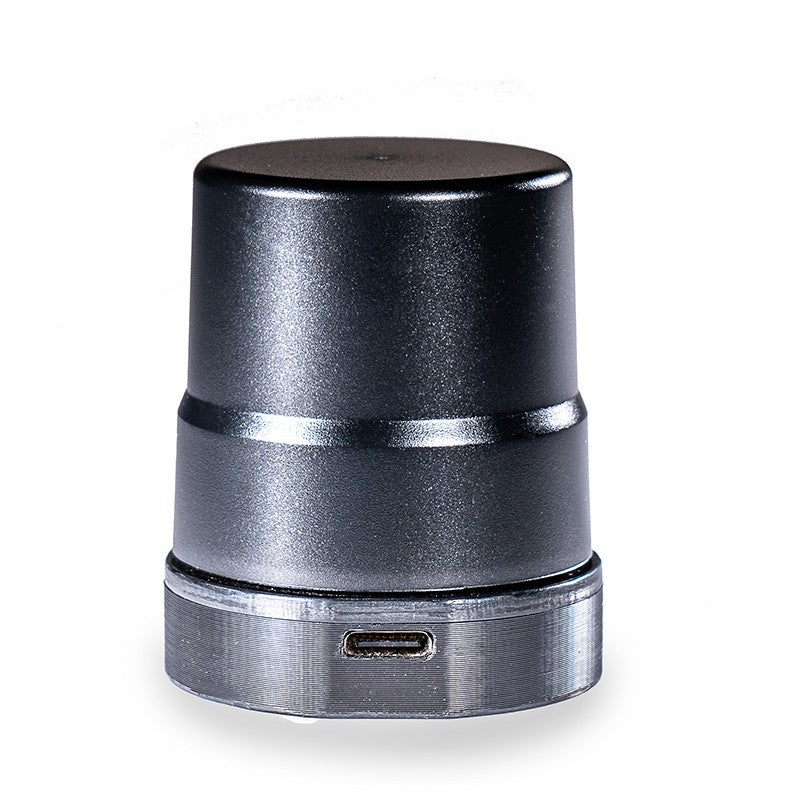

ZED-F9P four RTK GNSS Smart Antenna module with USB C and SMA antenna connectors in IP54 black plastic case for your UAV systems, Robots, RC, FPV or other projects (With USB-C and white plastic case). Base or Rover operation. Multi-band receiver delivers centimeter-level accuracy in seconds. Ultra small and light. Designed to use together with recommended Helix antenna.

The ZED-F9P positioning module features the new u-blox F9 receiver platform, which provides multi-band GNSS to high volume industrial applications in a compact form factor. ZED-F9P is a multi-band GNSS module with integrated u-blox multi-band RTK technology for centimeter-level accuracy. The module enables precise navigation and automation of moving industrial machinery by means of a small, surface mounted module.

The ZED-F9P module is designed for easy integration and low design-in costs with minimal e-BOM. It is well-suited for mass market adoption, thanks to its small package size, light weight, and small power consumption. ZED-F9P ensures the security of positioning and navigation information by using secure interfaces and advanced jamming and spoofing detection technologies.

ZED-F9P offers support for a range of correction services allowing each application to optimize performance according to the application’s individual need. ZED-F9P comes with built-in support for standard RTCM corrections, supporting centimeter-level navigation from local base stations or from virtual reference stations (VRS) in a Network RTK setup. The module can be upgraded to support future SSR-type correction services suitable for mass market penetration.
