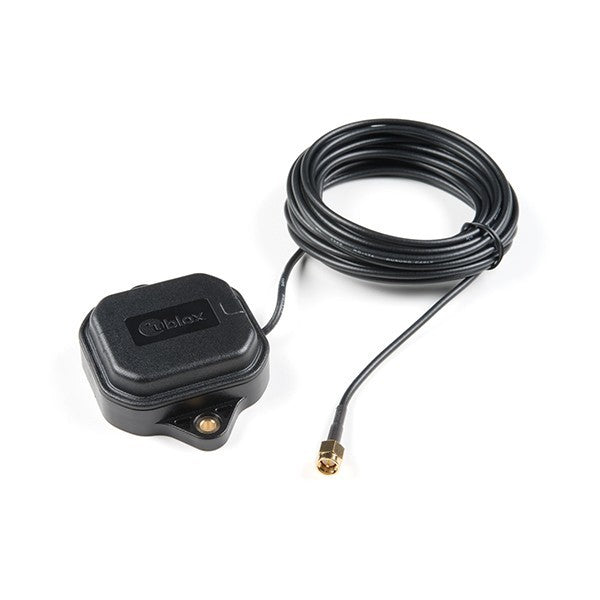

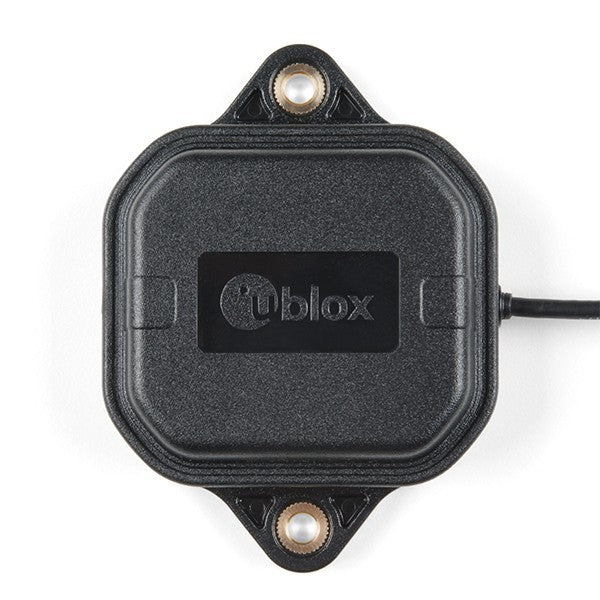

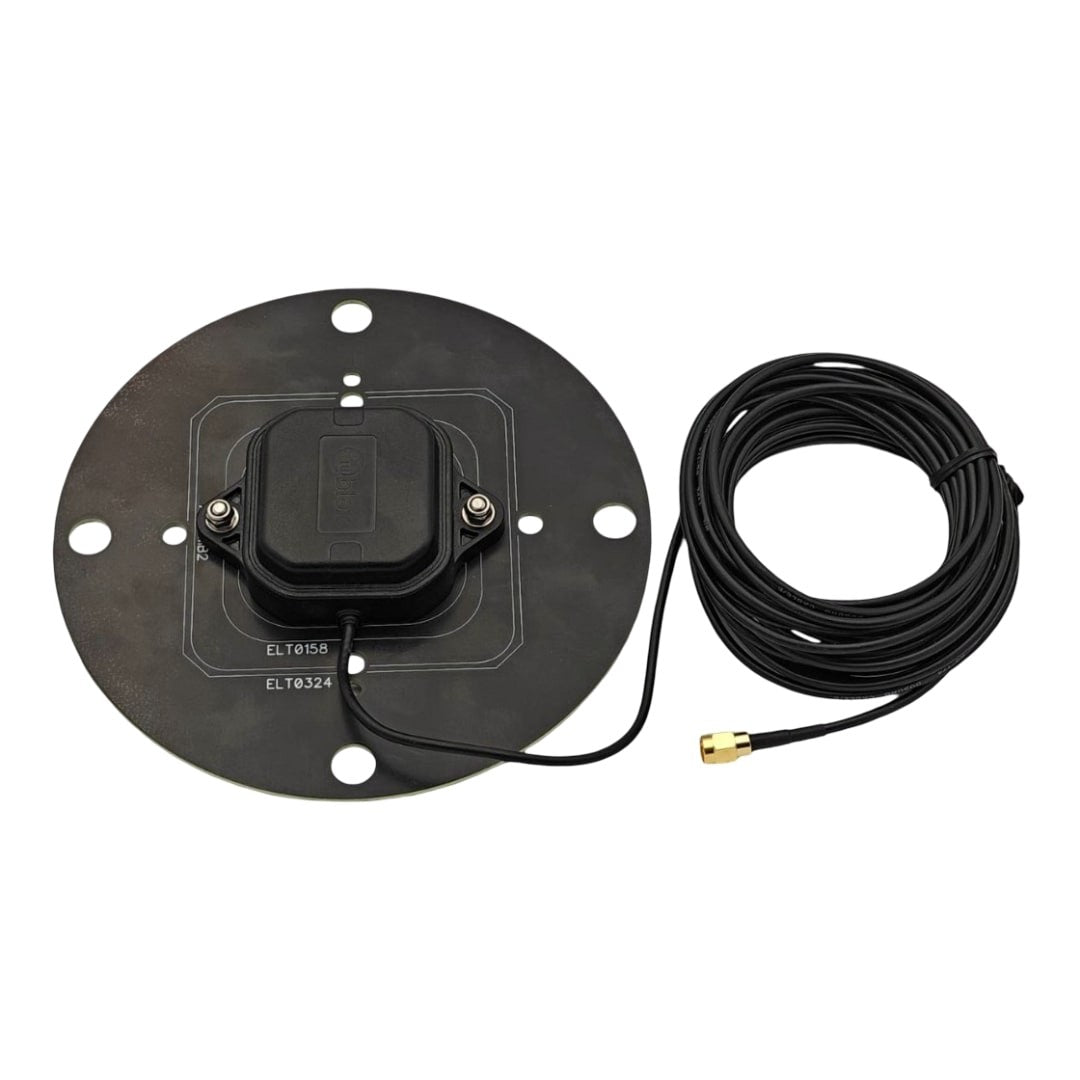

ANN-MB1 L1/L5 multi-band high precision GNSS antenna description:
The u-blox ANN-MB1 AllBand (GPS L1//L5, GLONASS G1, GALILEO E1/E5a, BDS B1I/B1C/B2a, SBAS L1/L5, QZSS L1/L5) active GNSS antenna is designed to reduce time-to -market for the new generation of high precision GNSS applications, which require highly accurate location abilities. The compact design, excellent price-to-performance ratio, and versatile mounting choices provide customers with fast, easy, and reliable multi-band antenna solutions. The ANN-MB1 antenna is a perfect match to the u-blox F9 platform (for example, ZED-F9T-10B), supporting L1 and L5 bands, thus providing customers with the valuable antenna solution they need to minimize evaluation and design-in efforts.
Available in stock (65)
Couldn't load pickup availability
Product Features
Product Features
Signal Received:
- GPS L1//L5
- GLONASS G1
- GALILEO E1/E5a
- BDS B1I/B1C/B2a
- SBAS L1/L5
- QZSS L1/L5
Highlights:
- L1-L5 multi-band active GNSS antenna for mass-market applications
- Supports GPS, GLONASS, Galileo, and BeiDou for maximum position availability
- Enables fast time-to-market
- Versatile mounting options to meet diverse installation needs
Amplifier characteristics
- LNA Gain: 28 ± 3 dB
- Noise figure Max: 3.2 dB
- Axial Ratio: 3.4 dB max. @Zenith
- Max. Output VSWR: 2.0
- Polarization: RHCP
- Voltage range: 3 - 5 V
- Typ. current: 15 mA
Mechanical data
- Weight 164 g (typ. including cable)
- Size 60.0 x 82.0 x 22.5 mm
- Cable 5 m RG174 standard
- Connector SMA

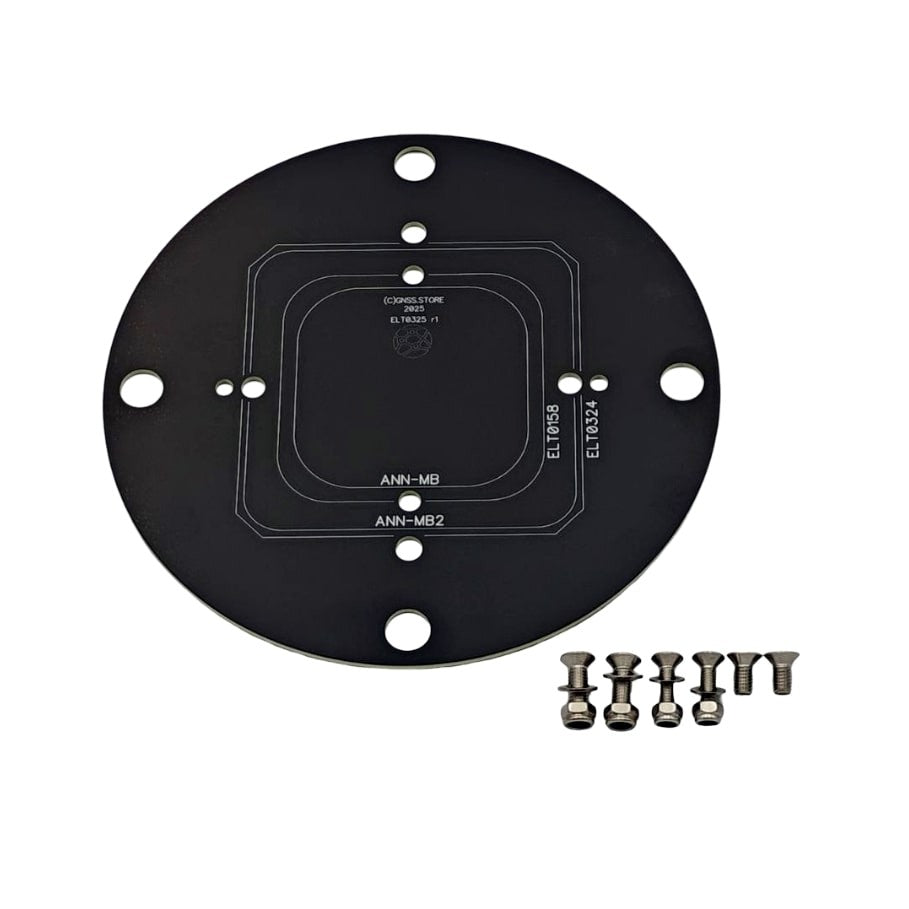

- Mounting Magnetic base, fixed installation option
- Housing color Black
Certifications and approvals
CE approval Based on Radio Equipment Directive (RED) 2014/53/EU and the Restriction of the use of certain Hazardous Substances Directive (RoHS) 2011/65/EU and 2015/863/EU
Environmental data
- Operating temperature –40 °C to +85 °C
- Storage temperature –40° C to +85 °C
- Waterproof IP 67
Product variants
ANN-MB1-00 Multi-band (L1-L5) active GNSS antenna, high precision, with 5-meter cable and SMA connector
