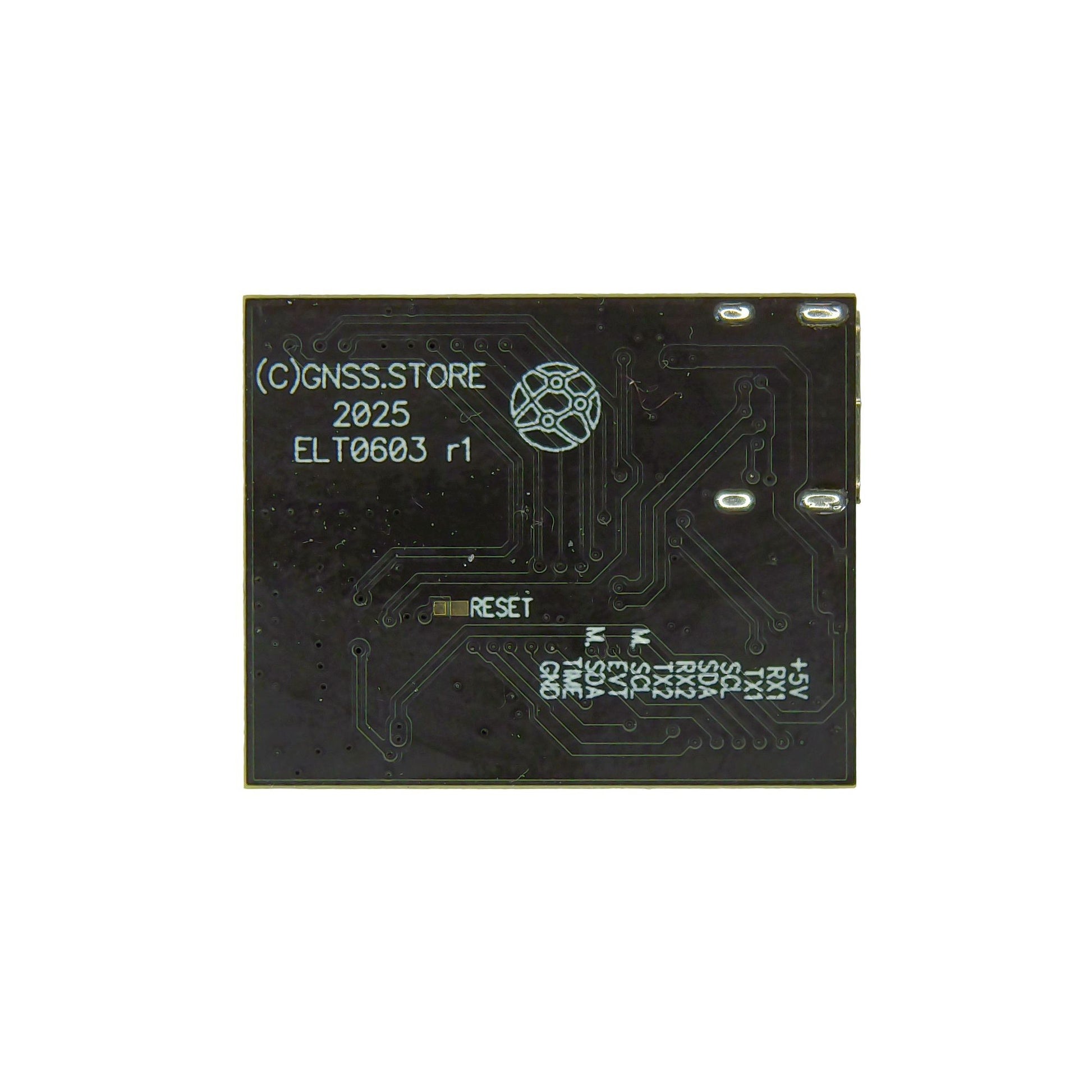

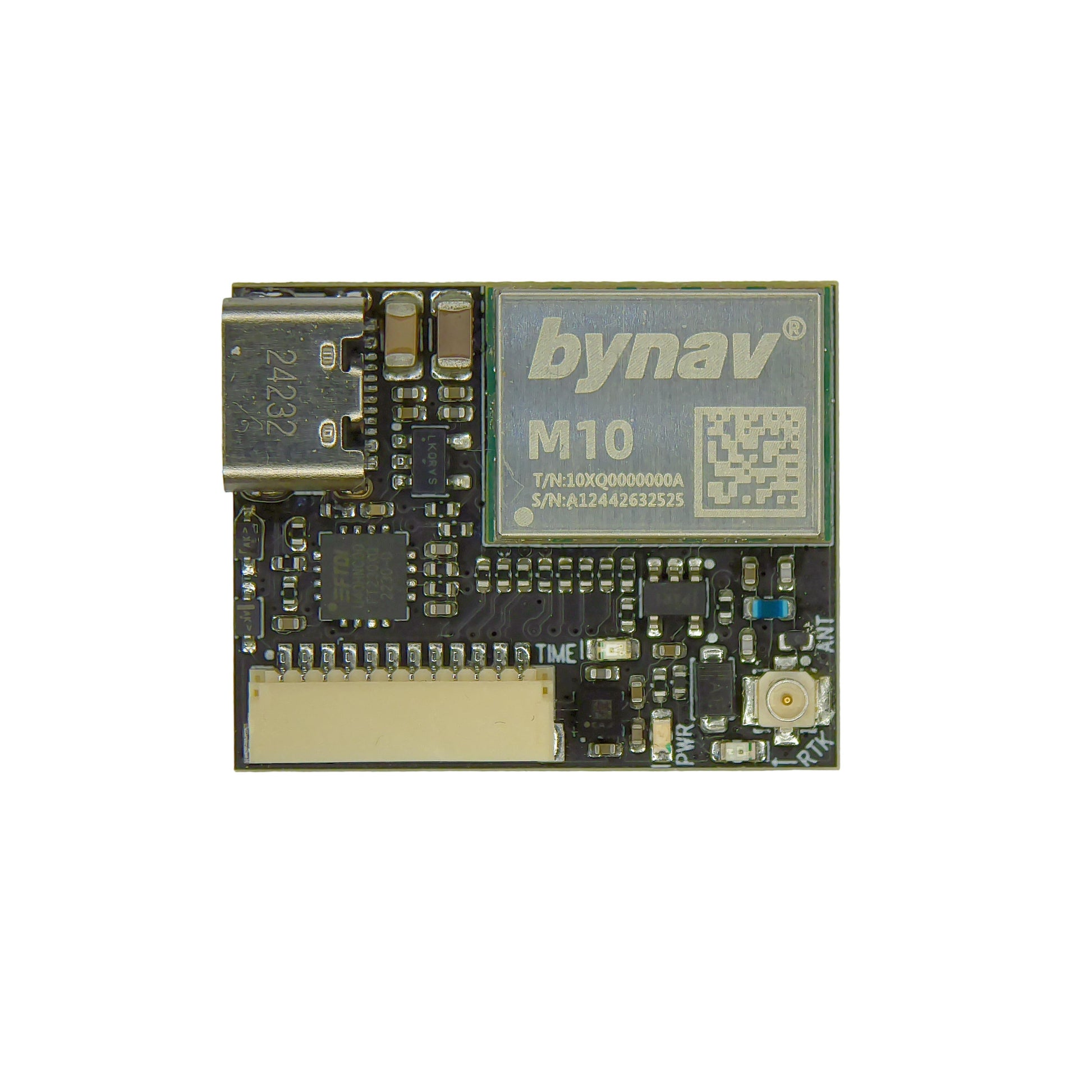

Budget M10 RTK InCase PIN GNSS receiver board with JST
Budget M10 RTK InCase PIN GNSS receiver board with JST
Tax excluded
M10 All-constellation Multi-frequency High Precision RTK GNSS receiver.
M10 is Bynav new-generation proprietary high-precision RTK positioning module based on the Alice 22nm high performance automotive SoC, designed on the basis of ISO26262 ASIL B functional safety. The module supports GPS L1C/A/L1C/L2/L5, BDS B1l/B2l/B3l/B1C/B2a/B2b, GLONASS G1/G2, Galileo E1/E5a/E5b/E6, QZSS L1/L2/L5/L6(CLAS), NavIC L5, SBAS L1C/A and L-band. The built-in anti-interference and anti-deception technologies enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as satellite signal interference and loss. Relying on the excellent performance, M10 is well suited for autonomous driving, lane-level navigation, drones and robots.
Available in stock (99)
Couldn't load pickup availability
Product Features
Product Features
- Antenna input with IPEX connector
- On board low noise 3.3 V voltage regulator
- USB and 2 UART (Tx, Rx) interfaces
- LIS3MDL magnetometer with I2C interface
- USB C connector
- 12-pin JST SH connector
- Time pulse LED, Power LED, RTK LED
- BY_Connect Bynav Evaluation Software
- Extensive visualization and evaluation features
- Dimensions 23x28 mm
- Weight: 3 gr.
- Fully assembled and ready to use
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
| M10 All-constellation Multi-frequency High Precision RTK GNSS receiver. M10 is Bynav new-generation proprietary high-precision RTK positioning module based on the Alice 22nm high performance automotive SoC, designed on the basis of ISO26262 ASIL B functional safety. The module supports GPS L1C/A/L1C/L2/L5, BDS B1l/B2l/B3l/B1C/B2a/B2b, GLONASS G1/G2, Galileo E1/E5a/E5b/E6, QZSS L1/L2/L5/L6(CLAS), NavIC L5, SBAS L1C/A and L-band. The built-in anti-interference and anti-deception technologies enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as satellite signal interference and loss. Relying on the excellent performance, M10 is well suited for autonomous driving, lane-level navigation, drones and robots.
| Regular price
$96.00
Sale price
$96.00
Regular price
| ELTEHS |
Choose your option
Budget M10 RTK InCase PIN GNSS receiver board with JST
Budget M10 RTK InCase PIN GNSS receiver board with JST
Tax excluded
Available in stock (99)
M10 All-constellation Multi-frequency High Precision RTK GNSS receiver.
M10 is Bynav new-generation proprietary high-precision RTK positioning module based on the Alice 22nm high performance automotive SoC, designed on the basis of ISO26262 ASIL B functional safety. The module supports GPS L1C/A/L1C/L2/L5, BDS B1l/B2l/B3l/B1C/B2a/B2b, GLONASS G1/G2, Galileo E1/E5a/E5b/E6, QZSS L1/L2/L5/L6(CLAS), NavIC L5, SBAS L1C/A and L-band. The built-in anti-interference and anti-deception technologies enhances RTK calculation on multiple modes and frequencies, which significantly improves RTK initialization time, measurement accuracy and reliability in complex environments such as satellite signal interference and loss. Relying on the excellent performance, M10 is well suited for autonomous driving, lane-level navigation, drones and robots.
- Antenna input with IPEX connector
- On board low noise 3.3 V voltage regulator
- USB and 2 UART (Tx, Rx) interfaces
- LIS3MDL magnetometer with I2C interface
- USB C connector
- 12-pin JST SH connector
- Time pulse LED, Power LED, RTK LED
- BY_Connect Bynav Evaluation Software
- Extensive visualization and evaluation features
- Dimensions 23x28 mm
- Weight: 3 gr.
- Fully assembled and ready to use
