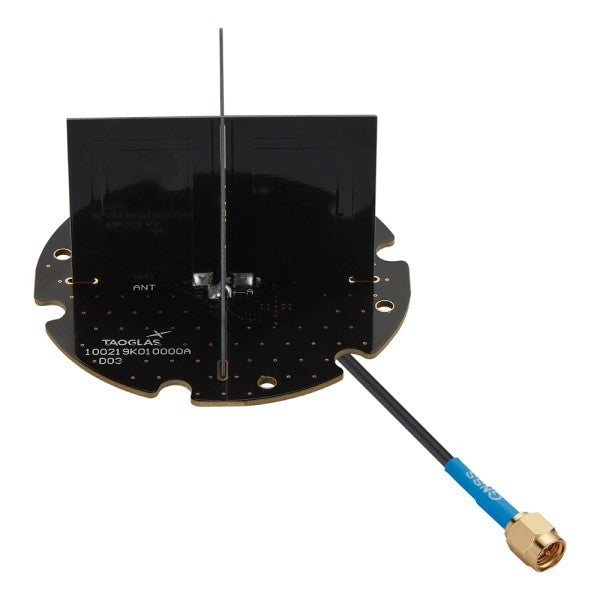

AllBand SMA GNSS Embedded Cross Dipole Active GNSS Antenna
AllBand SMA GNSS Embedded Cross Dipole Active GNSS Antenna
Tax excluded
SMA Multi-Band GNSS Embedded Cross Dipole Active GNSS Antenna description:
This embedded active multi-band GNSS antenna that has been carefully designed to work well on the full GNSS spectrum including GPS L1/L2/L5, GLONASS G1/G2/G3, GALILEO E1/E5a/E5b/E6, BDS B1I/B2I/B3I/B1C/B2a/B2b, SBAS L1/L5, QZSS L1/L2/L5/L6, IRNSS I5 as well as SBAS (WAAS/EGNOS/GAGAN/SDCM/SNAS). This allows the user to achieve higher location accuracy, as well as stability of position tracking in urban environments.
The MultiBand antenna has excellent performance across the full bandwidth of the antenna and its design has an even gain across the hemisphere giving almost excellent, broad axial ratio which in turn makes it resilient to multipath rejection and excellent phase centre stability. The LNA used in the MultiBand antenna ensures excellent out of band rejection and provides excellent positioning stability and reliability of GNSS signals.
Available in stock (30)
Couldn't load pickup availability
Product Features
Product Features
Signal Received:
- GPS L1/L2/L5
- GLONASS G1/G2/G3
- GALILEO E1/E5a/E5b/E6
- BDS B1I/B2I/B3I/B1C/B2a/B2b
- SBAS L1/L5
- QZSS L1/L2/L5/L6
- IRNSS I5
Amplifiers characteristics:
- Typ. LNA Gain: 25 dB
- LNA Noise Figure: Max. 3.4 dB
- Axial Ratio: 1 - 1.5 dB
- Max. Output VSWR: 1.5
- Polarization: RHCP
- Voltage range: 1.8 - 5 V
- Typ. current: 20 mA
- Antijaming
- CE Certified
- RoHS & Reach Compliant
Typical Applications Include:
- Autonomous Driving
- Precision Positioning for Robotics
- Precision Agriculture
- Inventory Management & Container tracking
- Telematics & Asset Tracking
- Timing Accuracy Synchronization
Mechanical data:
- Weight: 31 gr.
- Dimensions: Ø75 x 42mm
- Cable: 100mm RG-174
- Connector: SMA(M) Straight
- Housing color: black
- Mounting: screw mount
This MultiBand antenna is the latest addition to an ongoing product road map of high precision antennas. For RTK applications when used on the base and/or the rover, the MultiBand antenna can achieve genuine cm-level accuracy.
